Sweep Function 7
U8903A User’s Guide 119

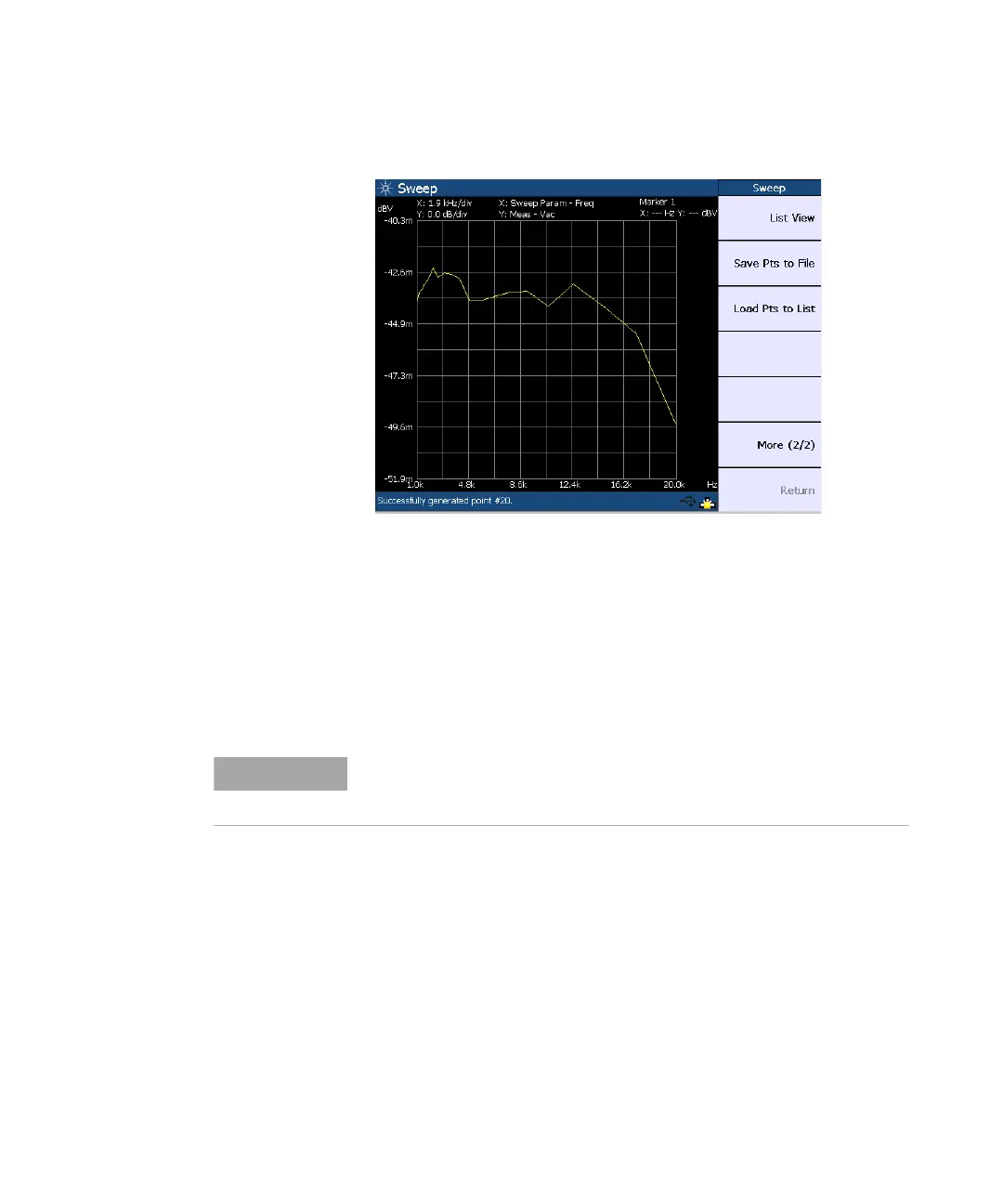

Figure 7-2 Sweep menu second page
On the sweep plot, the sweep parameter is displayed on the
horizontal axis, while the sweep measurement is displayed
on the vertical axis.
Using the Sweep menu, you may set the channel to perform
sweep, select the sweep mode, configure the sweep, I/O and
axis settings, display the sweep results in list form, as well
as save or load the sweep points.
You can save the sweep points to a file by pressing Save Pts
to File. To load the sweep points from a file, press Load Pts to
List. The File Manager will be launched to allow you to save
or load the sweep points. Refer to Chapter 2, “Save” on
page 43 and “Recall” on page 44 for the information on
using the File Manager menu. You may also perform sweep
using a list of user- defined sweep points. Refer to “Appendix
D: User- defined Sweep Points File Format” on page 147 for
more information on the user- defined file format for the
sweep points.
You must not select channel 1 as the sweep channel if the generator
function is variable phase, as channel 1 is the reference channel for
variable phase.
