56 U8903A User’s Guide
3 Instrument Configuration
Input Settings
The U8903A analyzer inputs can be configured with
selectable AC/DC coupling, AC level detector, digital filters,
Unbalanced/Balanced input connections, and measurement
ranges as shown in the following figure.

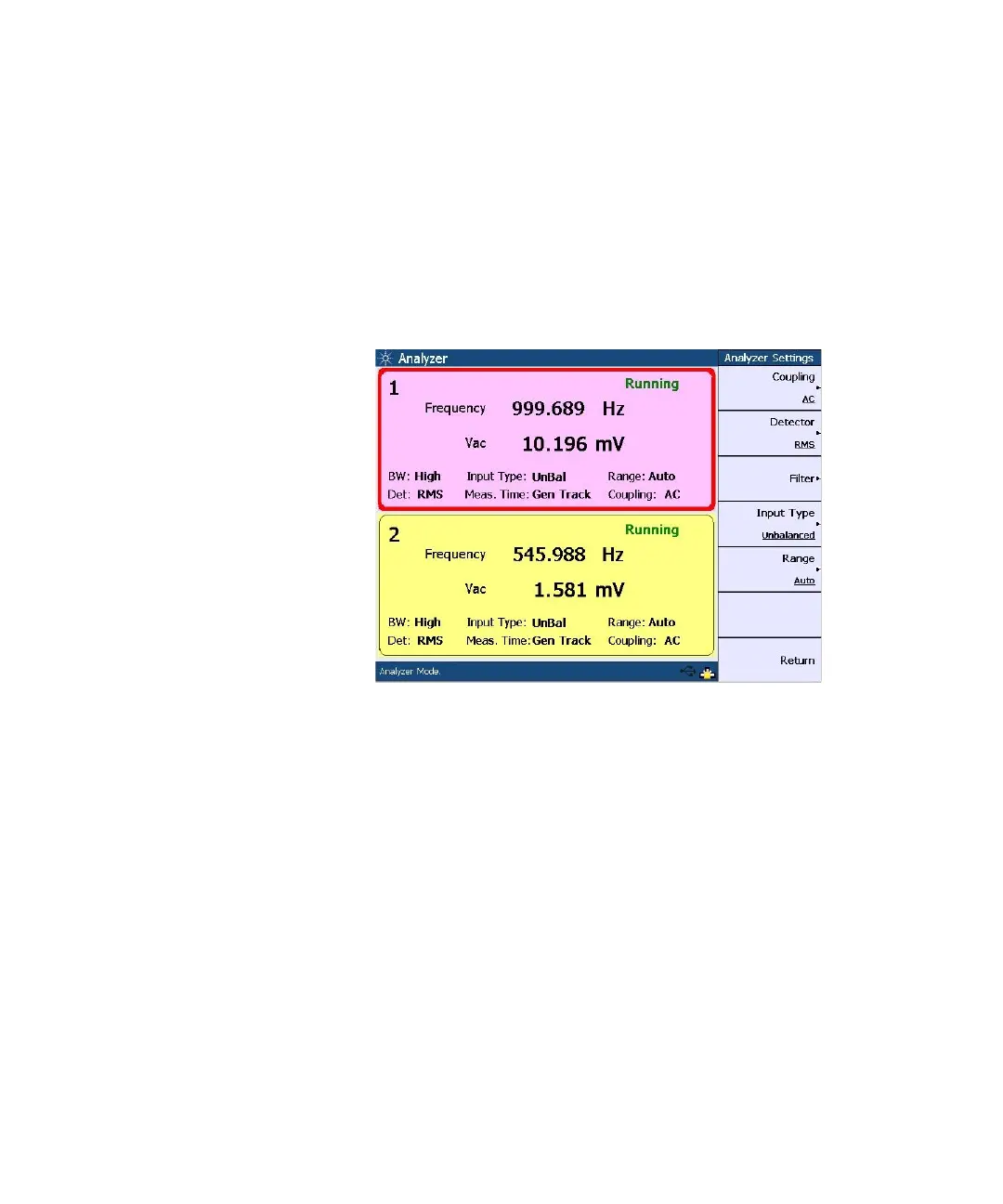

Figure 3-2 Analyzer input settings
