108 U8903A User’s Guide
6 Frequency and Time Domain Analysis
Monitor settings

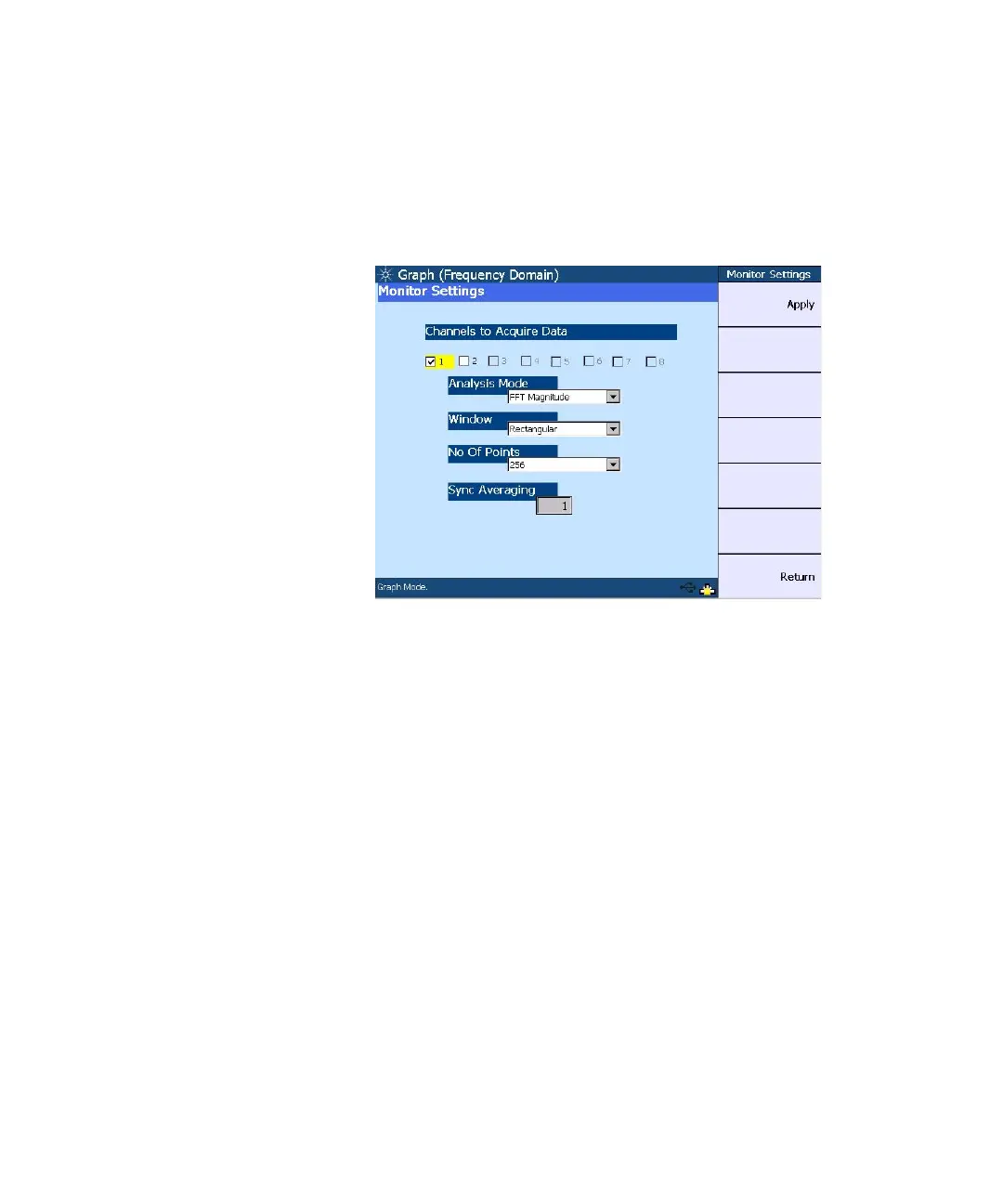

The following figure shows the monitor settings page.
Figure 6-3 Monitor settings page
The monitor settings page enables you to select the
channel(s) to acquire the graph data for display. The valid
channels are channels 1 and 2, while channels 3 to 8 will
only be available in future releases. The other functions of
the monitor settings are listed as follows.
Analysis mode
The analysis mode allows you to set the graph display to
either time domain, frequency domain (magnitude), or
frequency domain (phase).
In the time domain mode, the steps involved are acquiring
the data and displaying the results. On the other hand, the
steps for the frequency domain mode consist of acquiring
the data, performing the FFT operation, and processing the
results for graphing.
