104 U8903A User’s Guide
5Audio Analyzer Measurement Functions


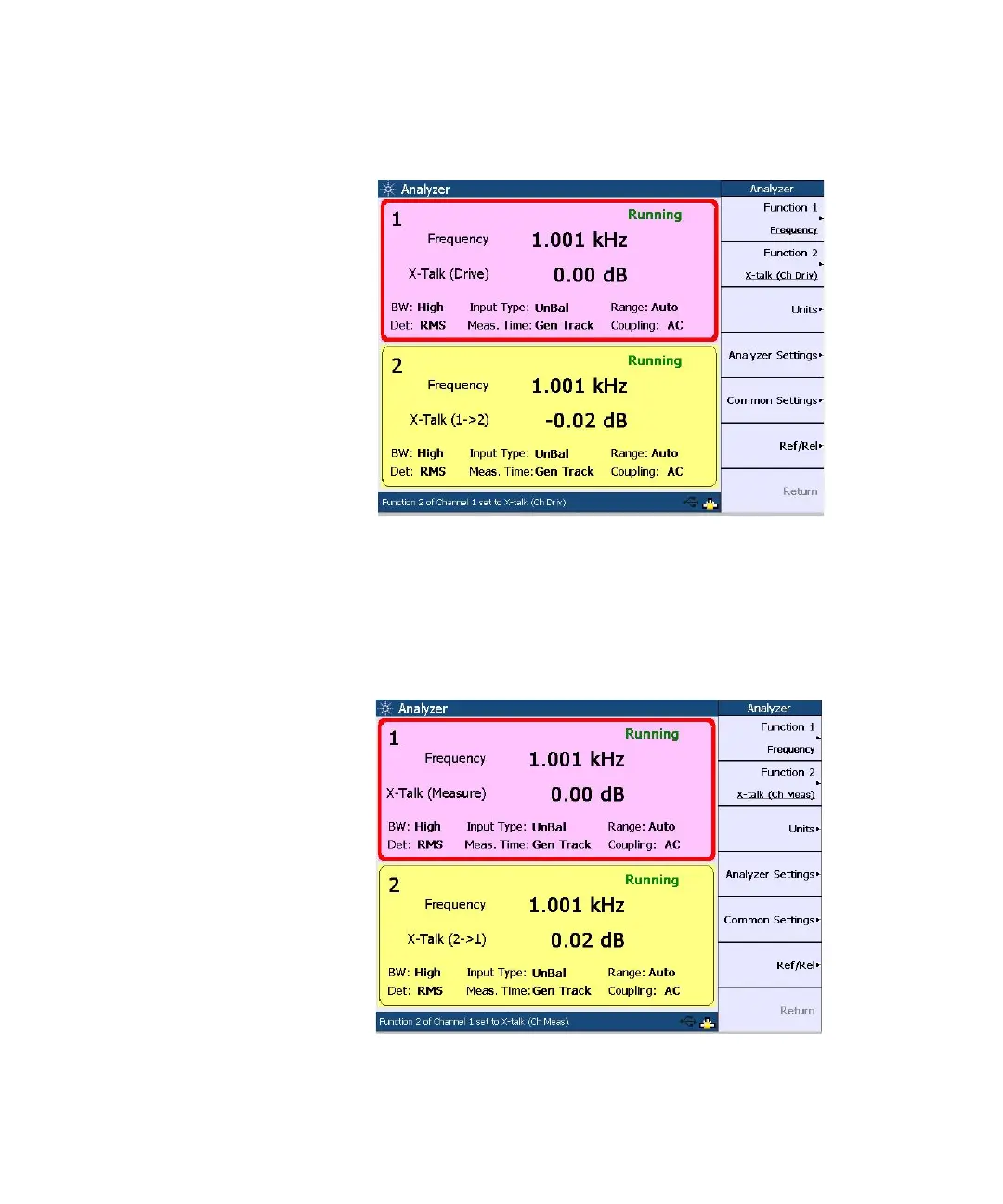

Figure 5-15 Crosstalk: Channel driven mode
In the channel measured mode as shown below, the
designated reference channel is used to measure the
crosstalk from the other channel to this channel. The
crosstalk result of the channel indicates the crosstalk from
the other channel to the reference channel.
Figure 5-16 Crosstalk: Channel measured mode
