76 U8903A User’s Guide
4 Audio Generator Functions

Press More (1/2) to display more dual sine waveform
parameters as follows.

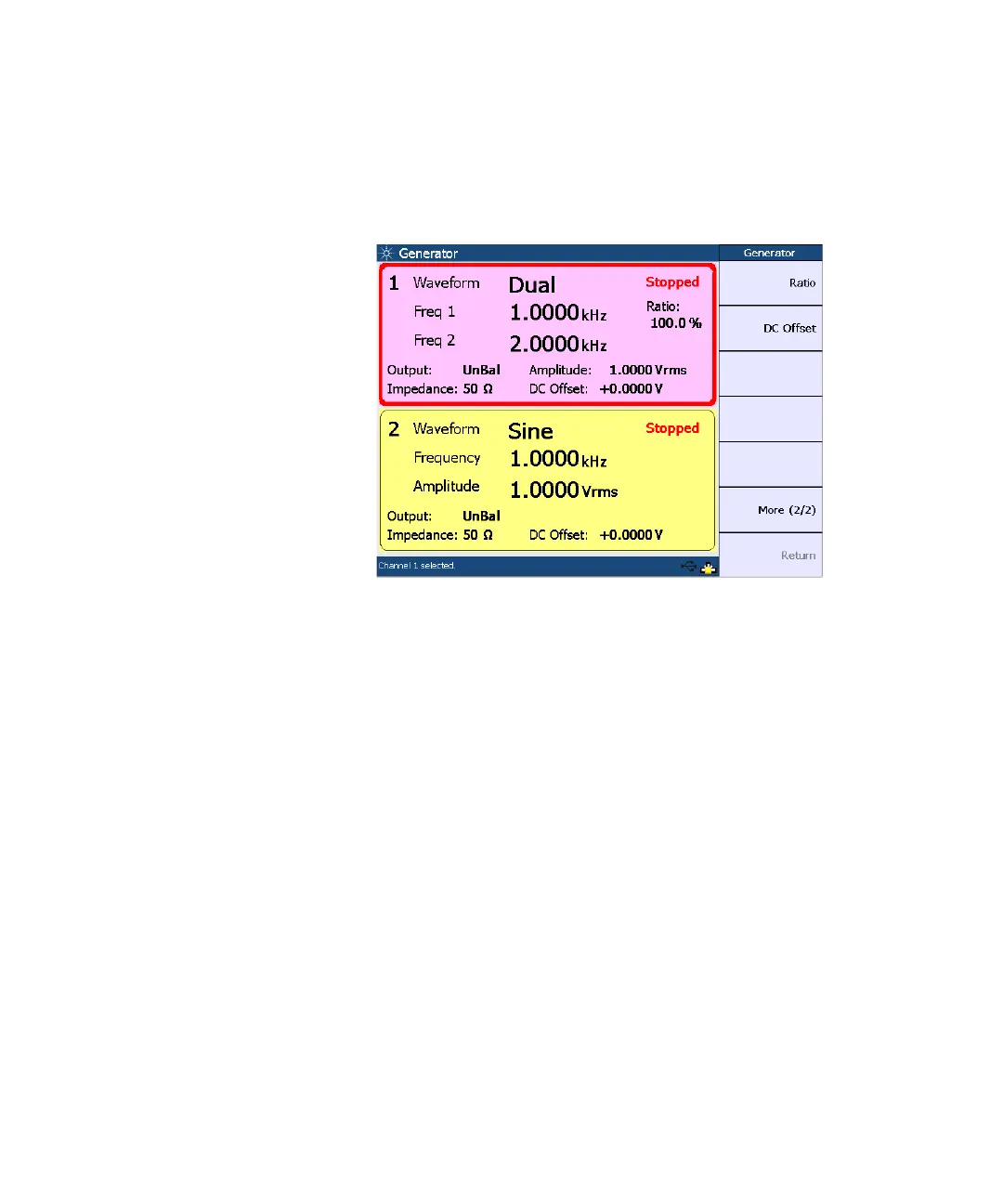

Figure 4-8 More dual sine waveform parameters
The dual sine waveform may be configured with the
following parameters.
• Frequency 1
• Frequency 2
• Amplitude
• Ratio
• DC Offset
Frequency 1 is the frequency of the first sine component.
Frequency 2 is the frequency of the second sine component.
Amplitude refers to the amplitude of the composite signal.
Ratio refers to the amplitude ratio of the second component
over the first component.
