Frequency and Time Domain Analysis 6
U8903A User’s Guide 115

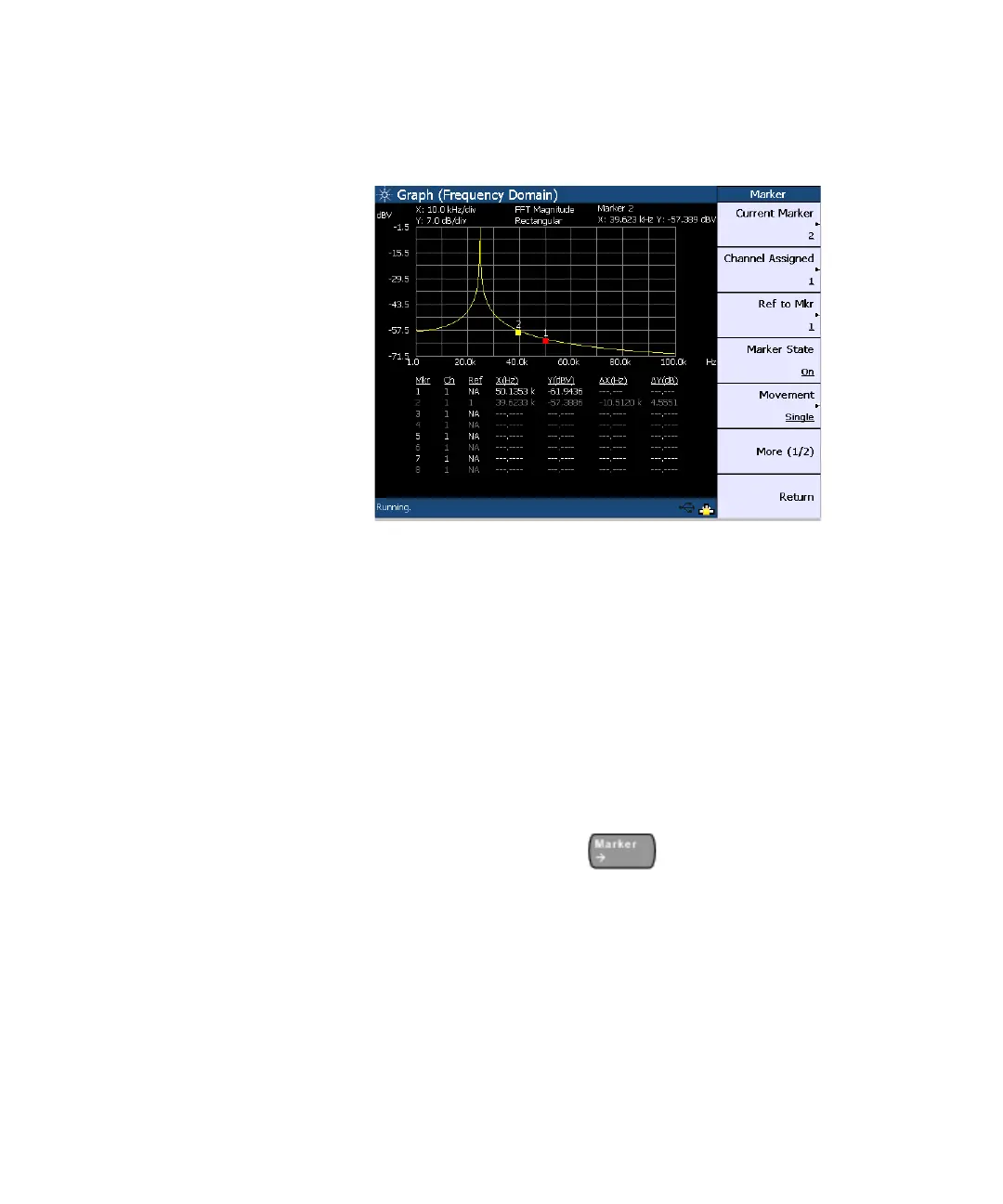

Figure 6-9 Marker measurement data display
Marker –>
This function allows you to view a section of the graph
based on the selected current marker position. Using the
softkeys, you may configure the graph area to be displayed
by positioning the current marker at either the center, start,
or stop point of the graph plot. In addition, you can also
view the area between the current marker and reference
marker by pressing Marker Span. To access the
Marker menu, press on the Graph panel.
To Next Page
