High Scale Ethernet MDA Capabilities
Quality of Service Guide 759

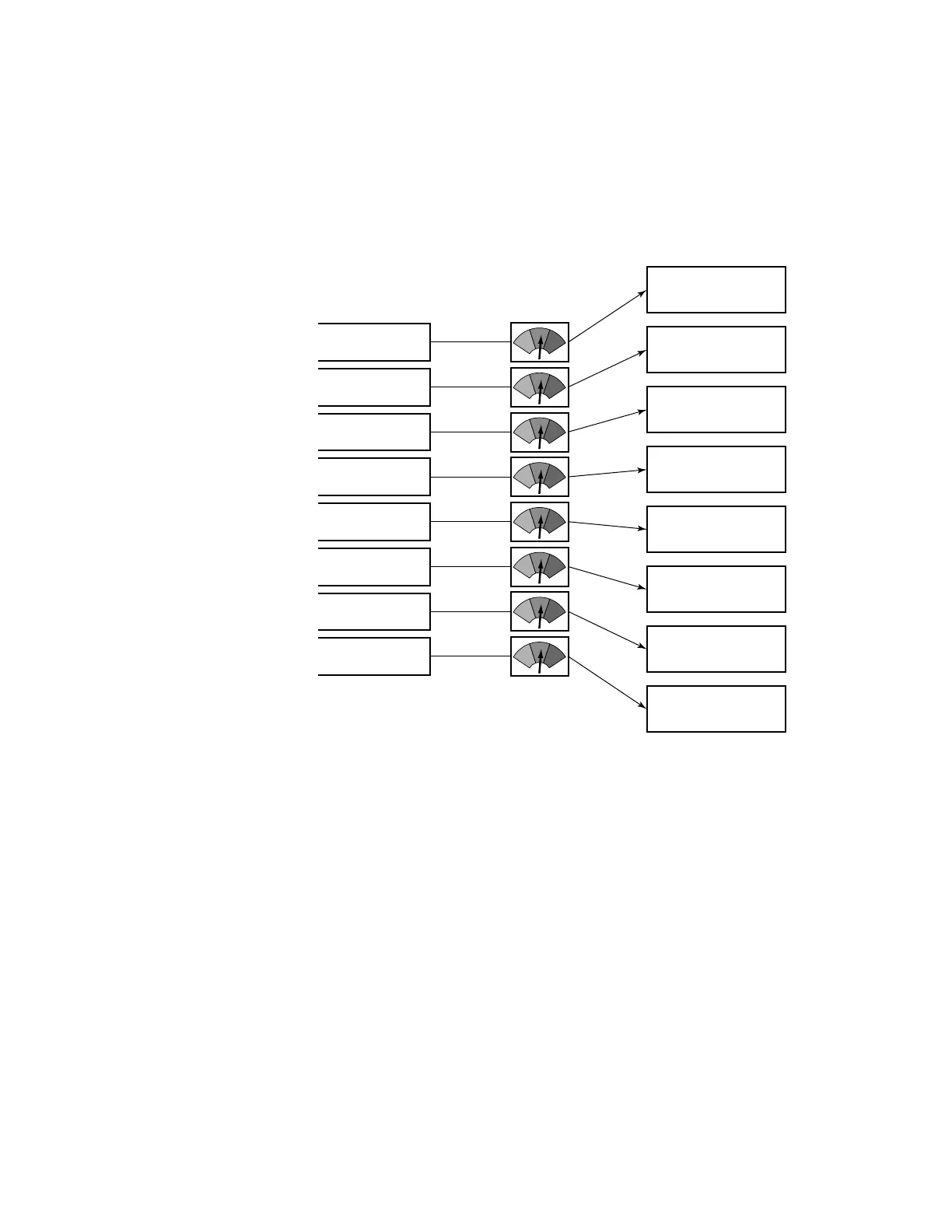

Figure 41: HSMDA Queue Mapping to Scheduler Class Service Lists
To allow for weighted servicing of selected scheduling classes, the port scheduler allows for
two weighted groups to be optionally created (weighted-group-1 and weighted-group-2) and
each may be populated with up to three consecutive scheduling classes (Figure 42). The
group itself maps to the highest inherent strict scheduling level of its member scheduling
classes. Each scheduling class in a scheduling group are individually weighted which allows
for all queues represented by the class to be service according to the ratio of weights based
on the active classes in the group (Figure 43).
OSSG148
Scheduler Service List
(Per Egress Port Scheduler
or Single Ingress Scheduler)
Scheduling Class 8
Service List
Queue 8
Scheduling Class 7
Service List
Scheduling Class 6
Service List
Scheduling Class 5
Service List
Scheduling Class 4
Service List
Scheduling Class 3
Service List
Scheduling Class 2
Service List
Scheduling Class 1
Service List
Queue 7
Queue 6
Queue 5
Queue 4
Queue 3
Queue 2
Queue 1
