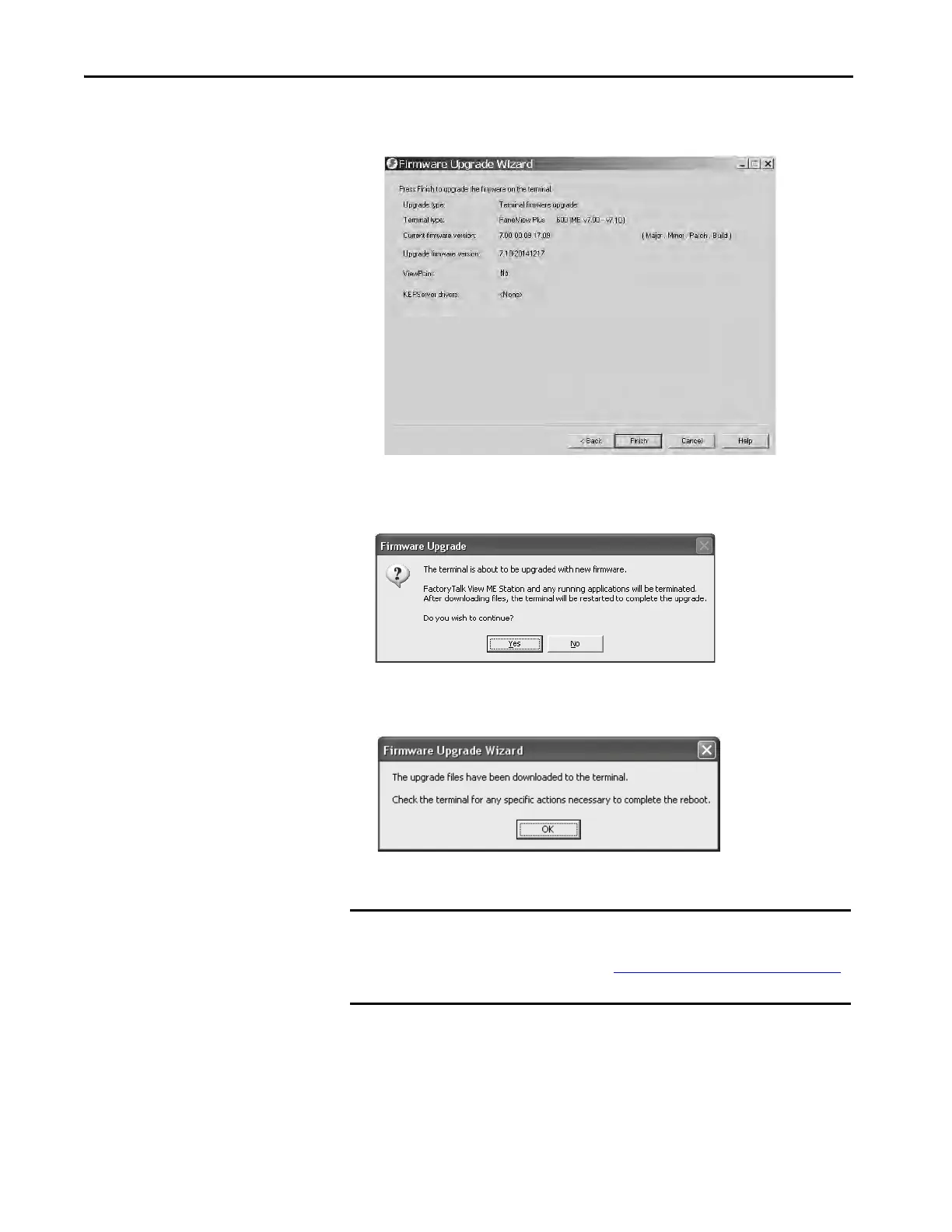

The final dialog box summarizes your choices for upgrading the terminal
firmware.
8. Click Finish to update the firmware in the terminal.
9. To continue with the update, click Yes.
A progress bar updates as firmware files are copied to the terminal.
10. Click OK when the firmware upgrade is complete.
The terminal restarts and executes the new firmware.
IMPORTANT If the firmware upgrade fails because of a power loss or the firmware
upgrade card is inadvertently removed, you can restore the terminal to the
factory default firmware. See Maintenance Mode Operations
on page 143
for details on how to restore the factory default settings.

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
