Chapter 4 Install Stratix 5410 Switches
Attach Brackets
To attach brackets on the switch, follow this procedure.
1. Identify a mount position and attach brackets to both sides of the switch.
.
Console
A
la
rm
T
OD
32574-M
Console
A
la
rm
T
OD
32573-M
32575-M

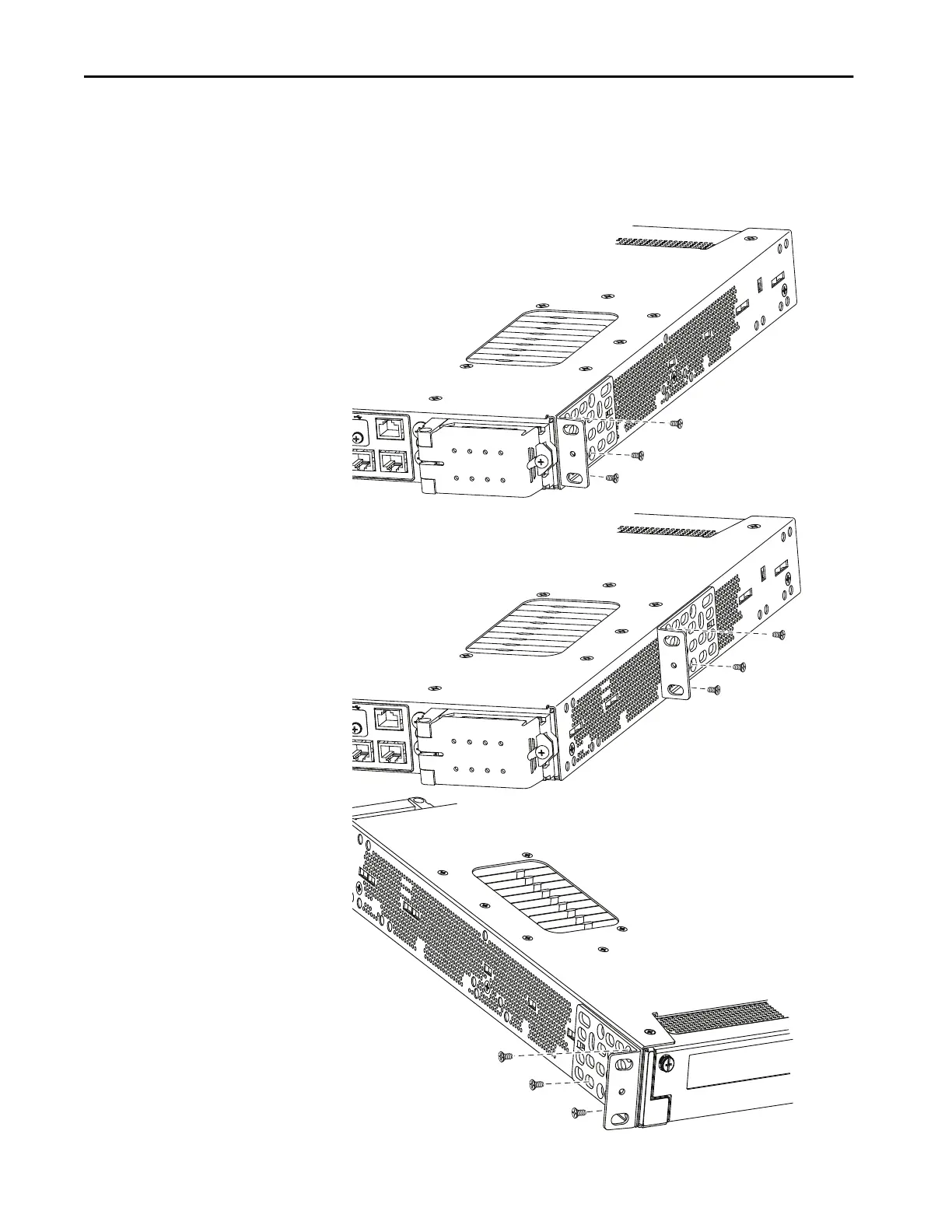

Center Mount Position
Cable-side Mount Position
Power-supply Mount Position
