Configure PoE via the Logix Designer Application

In the navigation pane, click PoE.

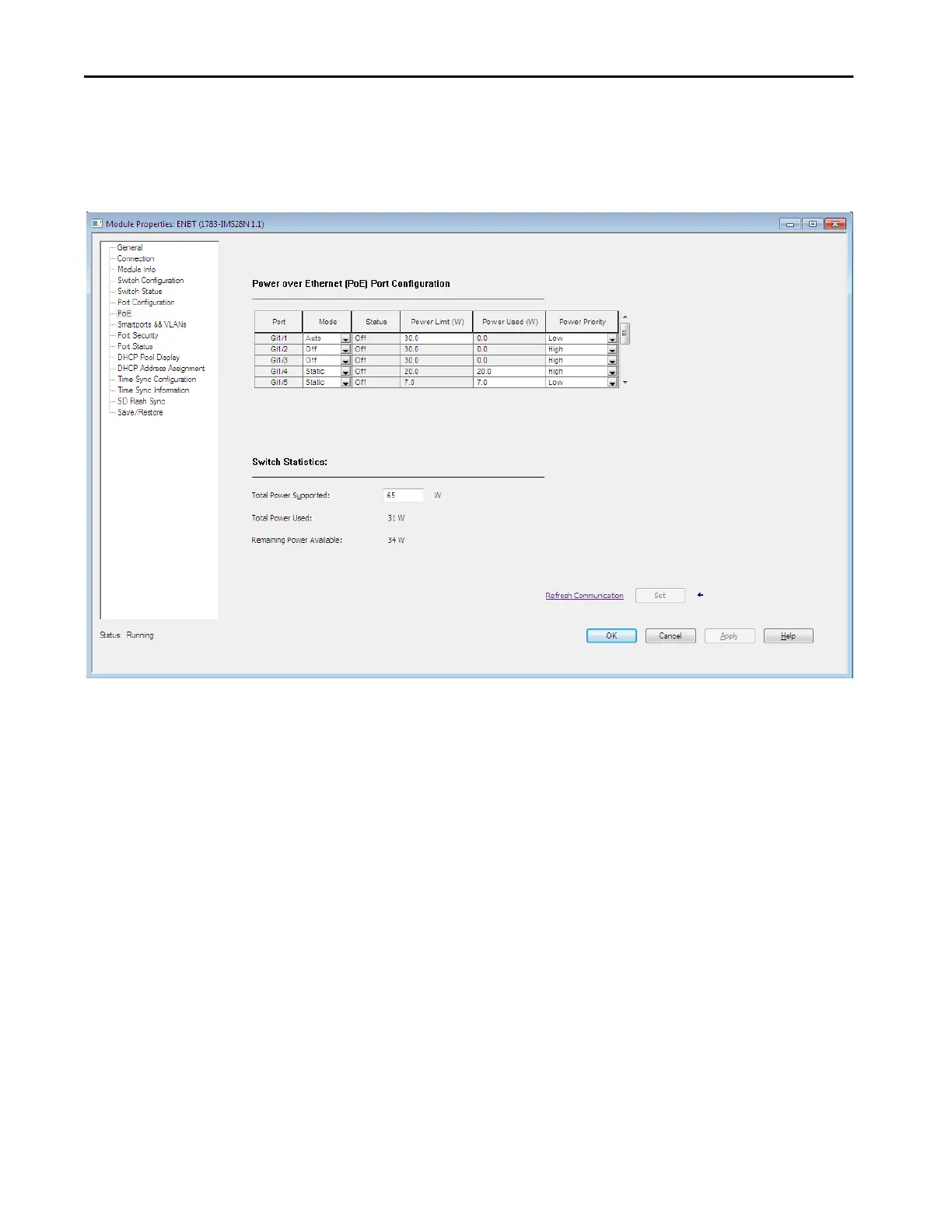

Figure 40 - PoE Configuration for Stratix 5410 Switches
