Configure Switch Features Chapter 7
Configure Port Thresholds via Device Manager

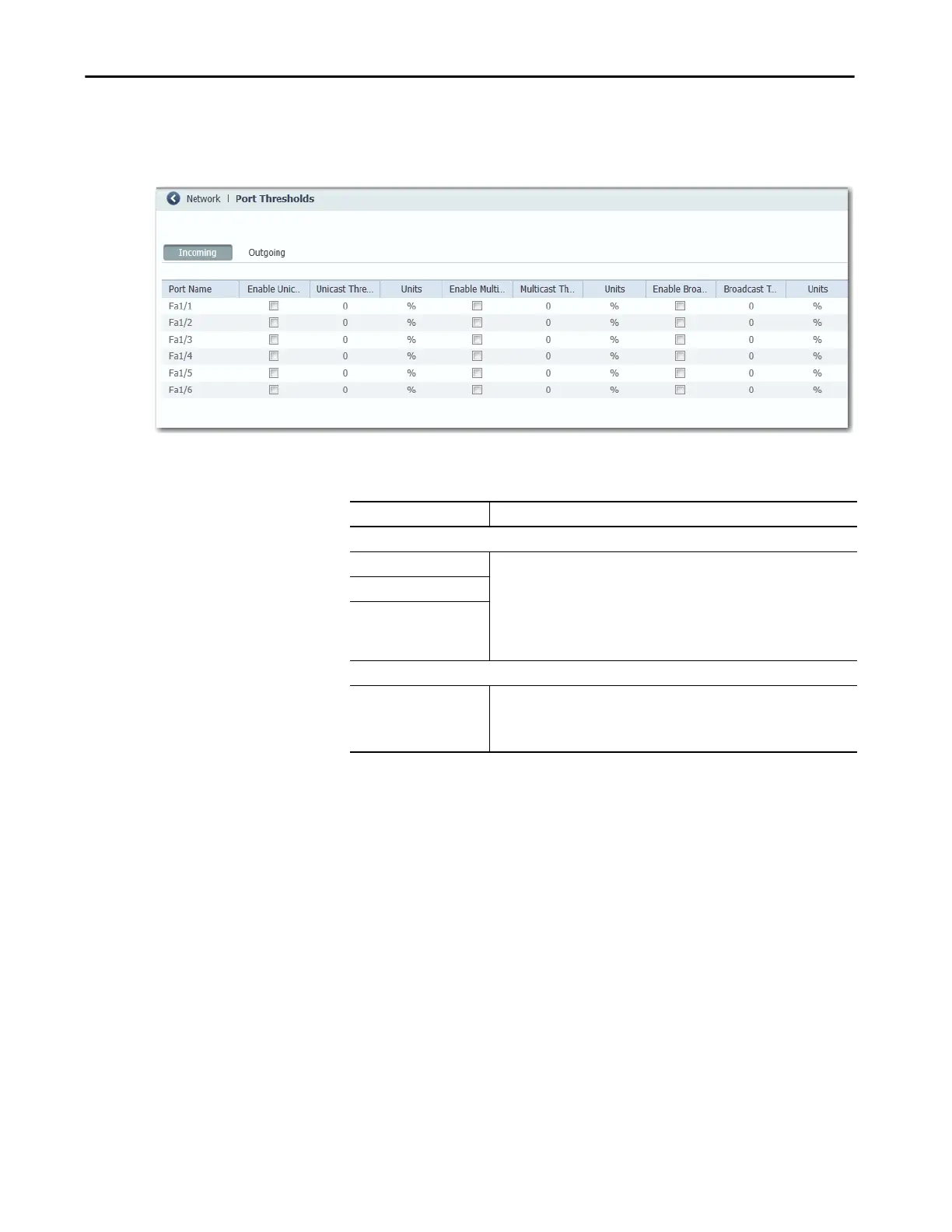

From the Configure menu, choose Port Thresholds.
Table 80 - Port Threshold Fields
Field Description
Incoming
Unicast For each port, do the following:
1. Check or clear the Enable checkbox.
2. Type the threshold value.
3. Choose one of these units:
– PPS (O…10 billion)
– BPS (O…10 billion)
– % (0…100)
Multicast
Broadcast
Outgoing
All Traffic For each port, do the following:
1. Check or clear the Enable checkbox.
2. Type the threshold value.
3. Click Save.

Allen-Bradley Stratix 5700 Specifications

General

Model	Stratix 5700
Port Types	RJ45, SFP
Mounting	DIN Rail or Panel Mount
Dimensions	Varies by model
Weight	Varies by model
Management	Web-based, SNMP, Command Line
Redundancy	Device Level Ring, STP, RSTP
Operating Temperature	-40°C to 70°C
Power Supply	Dual DC inputs
Input Voltage	24 VDC or 100-240 VAC
Protocols	EtherNet/IP, DLR
Security Features	SSH, HTTPS, RADIUS, TACACS+
