Allen-Bradley Stratix 5700 User Manual

Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 251
Configure Switch Features Chapter 7

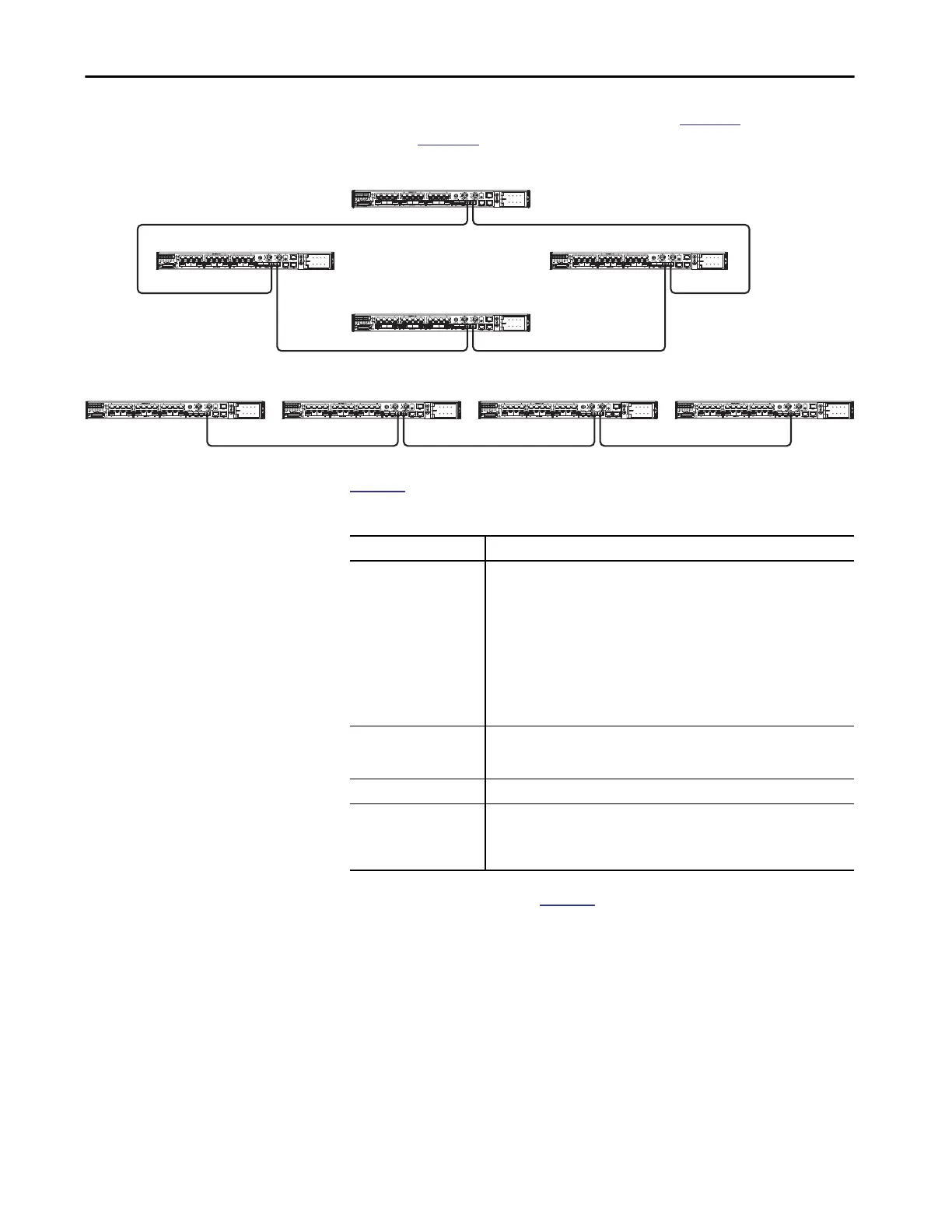

You can configure a stack in either a ring topology (Figure 25) or a linear
topology (
Figure 26).
Figure 25 - Switch Stack in a Ring Topology
Figure 26 - Switch Stack in a Linear Topology
Table 59 lists the supported features for horizontal stacking.
Features that are not listed in
Table 59 are not supported. Unsupported
features include, but are not limited to, the following:
• Device Manager
•CIP
• Layers 2 NAT
•PRP
•PTP
32648-M
32649-M
Table 59 - Supported Features
Feature Type Support
Layer 2 features • Link status detection, speed, duplex
• Layer 2 learning and forwarding
• STP, MSTP, RSTP, BPDU Guard
• VLAN, VTP, DTP, VLAN Table
• CDP, LLDP
• UDLD
• EtherChannel (LACP and PAgP)
• Flex links
• IGMP Snooping
• ARP
• REP ring convergence
Layer 3 features • ARP
• Static routes
• Layer 3 host configuration
Power over Ethernet (PoE) PoE is supported in Stack mode.
Traffic types • Layer 2 unicast
• Layer 2 multicast and broadcast
• Layer 3 unicast traffic
• Layer 3 multicast and broadcast

Allen-Bradley Stratix 5700 Specifications

General

Model	Stratix 5700
Port Types	RJ45, SFP
Mounting	DIN Rail or Panel Mount
Dimensions	Varies by model
Weight	Varies by model
Management	Web-based, SNMP, Command Line
Redundancy	Device Level Ring, STP, RSTP
Operating Temperature	-40°C to 70°C
Power Supply	Dual DC inputs
Input Voltage	24 VDC or 100-240 VAC
Protocols	EtherNet/IP, DLR
Security Features	SSH, HTTPS, RADIUS, TACACS+
