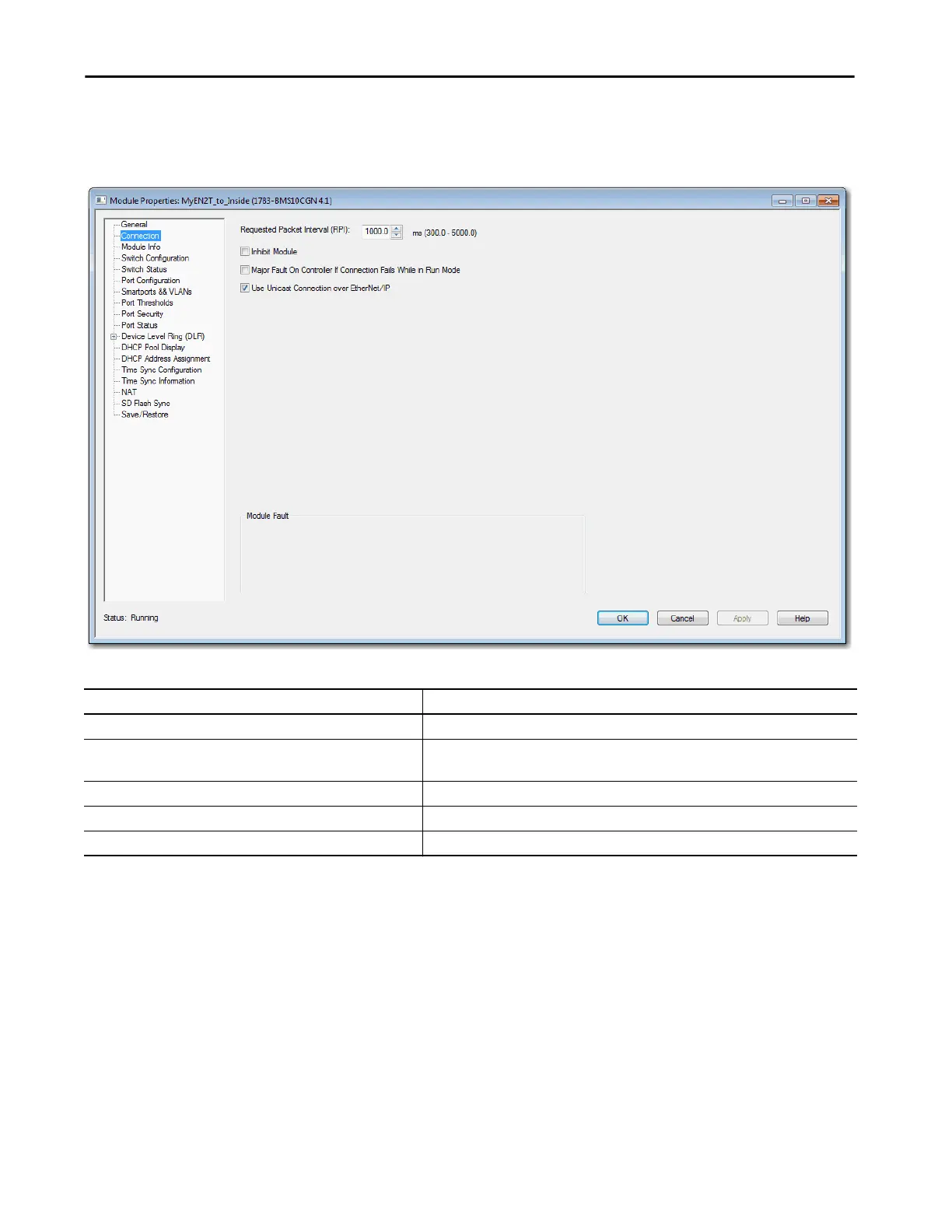

Connection Properties
In the navigation pane, click Connection.
Table 17 - Connection Fields
Field Description
Requested Packet Interval (RPI) Enter a value between 300…5000.
Inhibit Module Check to disable communication between the controller and the switch.
Clear the checkbox to restore communication.
Major Fault on Controller If Connection Fails While in Run mode Check to have the controller create a major fault if connection fails in Run mode.
Use Unicast Connections over EtherNet/IP Check to use Unicast connections with the EtherNet/IP network.
Module Fault Displays the fault code from the controller and the text that indicates the module fault has occurred.

Allen-Bradley Stratix 5700 Specifications

General

Model	Stratix 5700
Port Types	RJ45, SFP
Mounting	DIN Rail or Panel Mount
Dimensions	Varies by model
Weight	Varies by model
Management	Web-based, SNMP, Command Line
Redundancy	Device Level Ring, STP, RSTP
Operating Temperature	-40°C to 70°C
Power Supply	Dual DC inputs
Input Voltage	24 VDC or 100-240 VAC
Protocols	EtherNet/IP, DLR
Security Features	SSH, HTTPS, RADIUS, TACACS+
