Allen-Bradley Stratix 5700 User Manual

520 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Appendix D Cables and Connectors

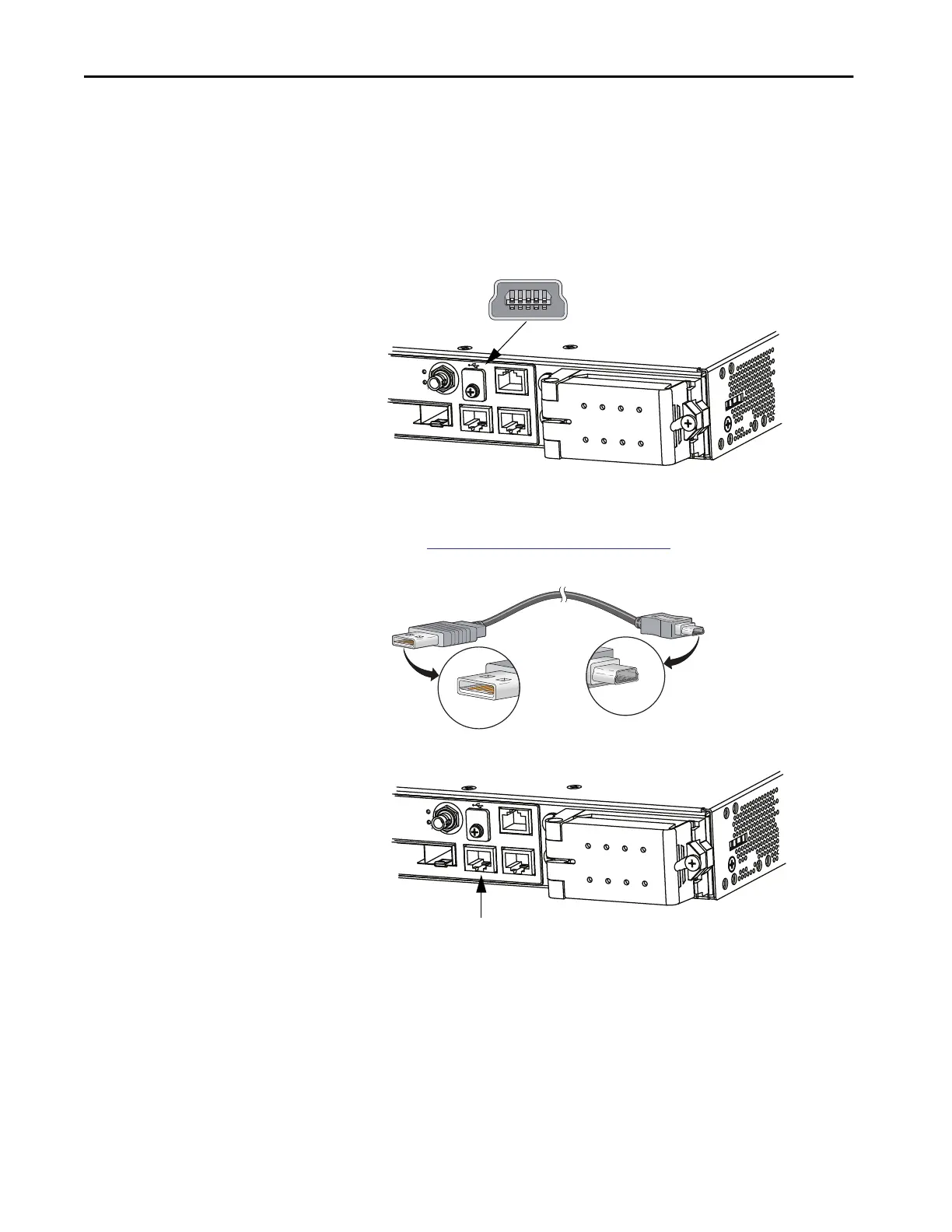

Console Ports
Console ports enable you to connect a switch to a computer if you use the
Command-line interface (CLI) to configure and monitor a switch.
Stratix 5410 switches have these console ports:
• A USB 5-pin mini-Type B port on the front panel
•
The USB console port uses a USB Type A to 5-pin mini-Type B cable.
To use the USB cable, download the drivers for Microsoft Windows
from
http://www.rockwellautomation.com. The USB cable is not
provided with the switch.
• RJ45 console port on the front panel
Console
28
ANA.TimeCode
TOD
IN
OU
Console
28
ANA.TimeCode
TOD
IN
OU
Console Port

Allen-Bradley Stratix 5700 Specifications

General

Model	Stratix 5700
Port Types	RJ45, SFP
Mounting	DIN Rail or Panel Mount
Dimensions	Varies by model
Weight	Varies by model
Management	Web-based, SNMP, Command Line
Redundancy	Device Level Ring, STP, RSTP
Operating Temperature	-40°C to 70°C
Power Supply	Dual DC inputs
Input Voltage	24 VDC or 100-240 VAC
Protocols	EtherNet/IP, DLR
Security Features	SSH, HTTPS, RADIUS, TACACS+
