Allen-Bradley Stratix 5700 User Manual

162 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Chapter 6 Install Stratix 8000 and 8300 Switches
Parts List and Required Tools
Verify that you have these items.
If you plan to install a PoE expansion module, verify that you have a PoE power
connector.

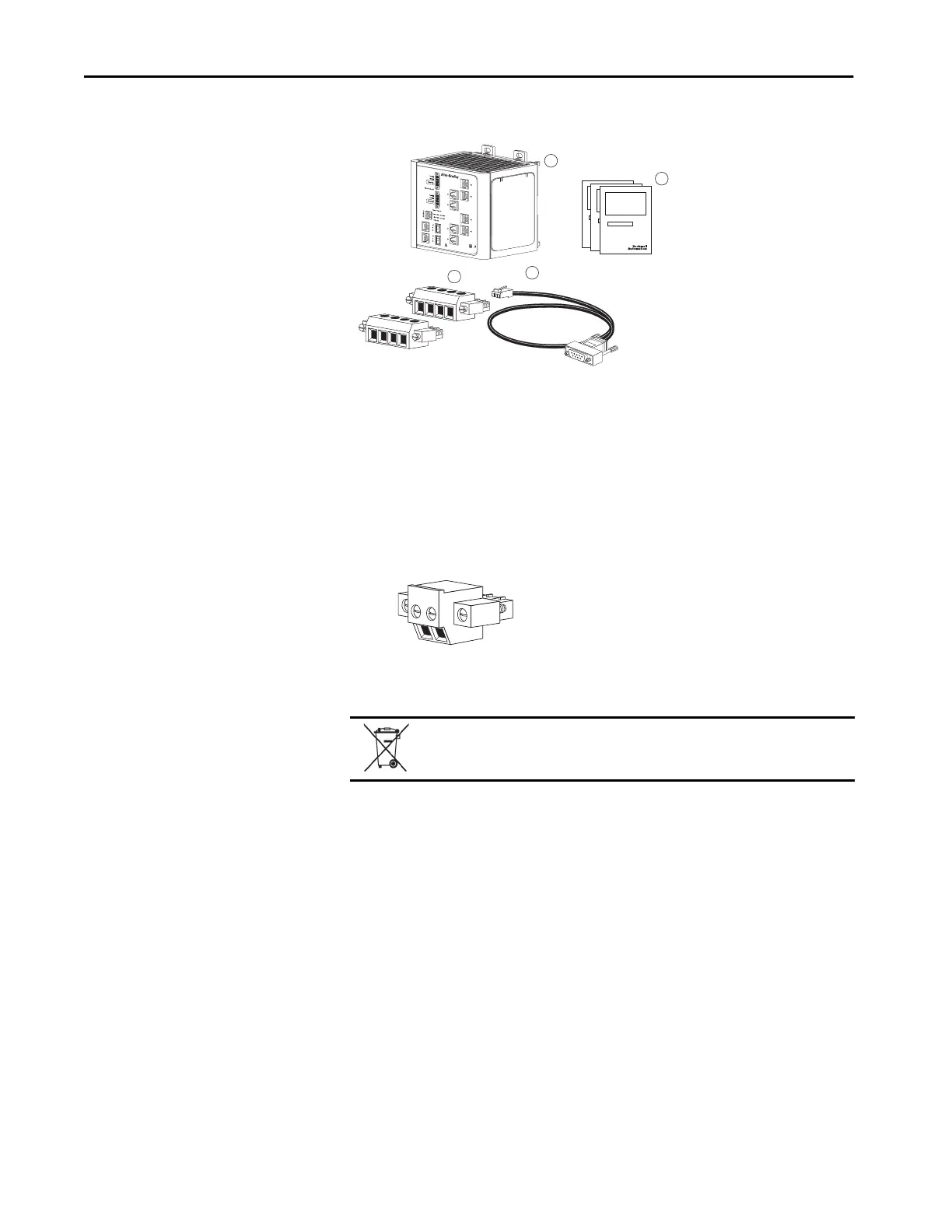

1 Stratix® 8000/8300 switch
2 Documentation
3 Power and alarm relay connectors (qty. 2)
4 Console cable
At the end of its life, this equipment should be collected separately from any
unsorted municipal waste.
5
1
2
3
4
RT
A
V
A
RT
A
V
A
31774-M
32437-M

Allen-Bradley Stratix 5700 Specifications

General

Model	Stratix 5700
Port Types	RJ45, SFP
Mounting	DIN Rail or Panel Mount
Dimensions	Varies by model
Weight	Varies by model
Management	Web-based, SNMP, Command Line
Redundancy	Device Level Ring, STP, RSTP
Operating Temperature	-40°C to 70°C
Power Supply	Dual DC inputs
Input Voltage	24 VDC or 100-240 VAC
Protocols	EtherNet/IP, DLR
Security Features	SSH, HTTPS, RADIUS, TACACS+
