Allen-Bradley Stratix 5700 User Manual

372 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Chapter 8 Monitor the Switch
Switch Status via
Device Manager
The Dashboard window in Device Manager lets you monitor switch status and
performance.
The Dashboard window is similar to the Monitor > Trends window. The
Dashboard window displays the instantaneous status while the Trends window
displays the historical status. By using them together, you can gather the
detailed conditions of the switch and its ports. For information about the
Trends window, see
page 394.
The Front Panel has four areas to monitor the status of the switch:
• Front Panel, as described on
page 373
• Switch Information, as described on
page 385
• Switch Health, as described on
page 386
• Port Utilization, as described on
page 387

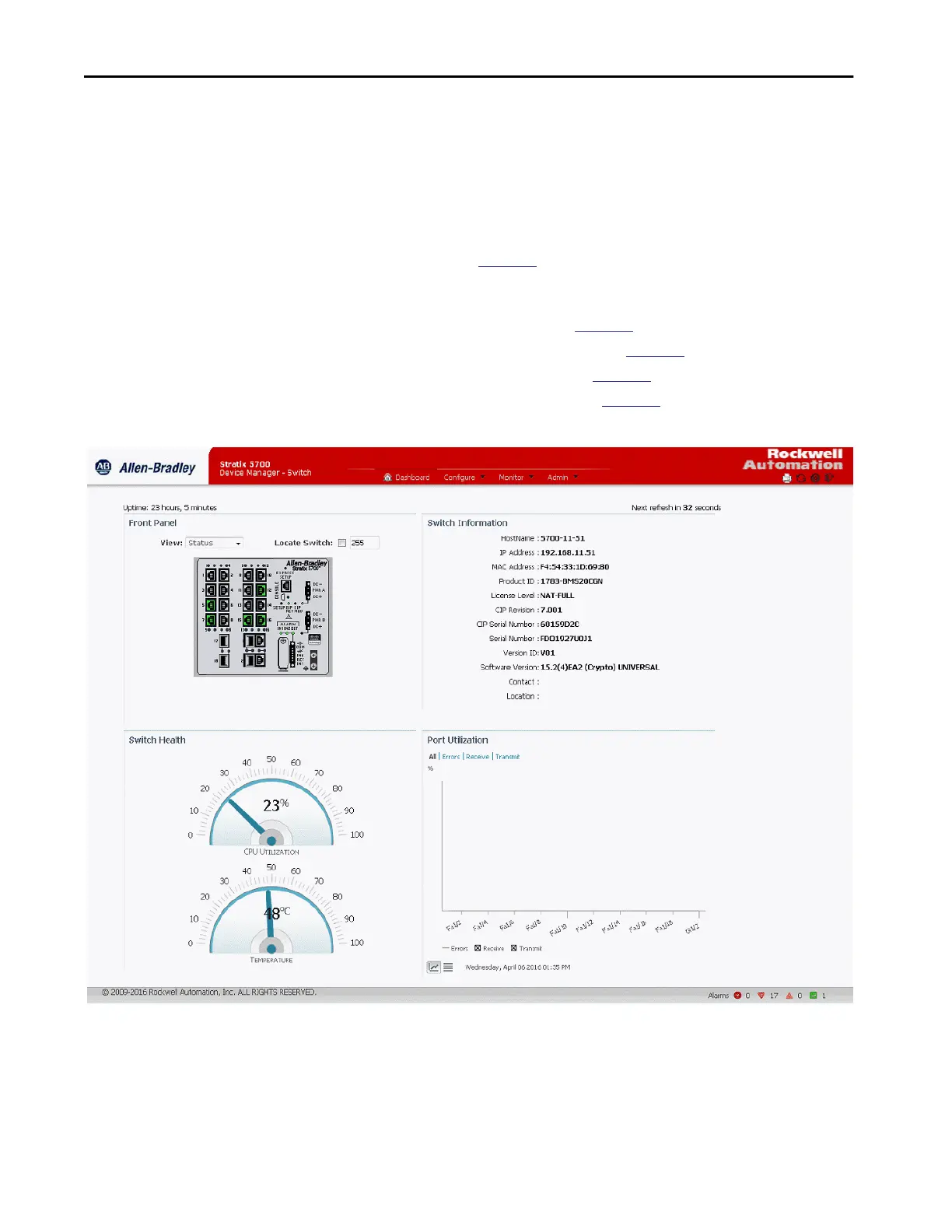

Figure 52 - Dashboard Window

Allen-Bradley Stratix 5700 Specifications

General

Model	Stratix 5700
Port Types	RJ45, SFP
Mounting	DIN Rail or Panel Mount
Dimensions	Varies by model
Weight	Varies by model
Management	Web-based, SNMP, Command Line
Redundancy	Device Level Ring, STP, RSTP
Operating Temperature	-40°C to 70°C
Power Supply	Dual DC inputs
Input Voltage	24 VDC or 100-240 VAC
Protocols	EtherNet/IP, DLR
Security Features	SSH, HTTPS, RADIUS, TACACS+
