Allen-Bradley Stratix 5700 User Manual

522 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Appendix D Cables and Connectors
Alarm Port
The front panel alarm port uses an RJ45 connector.

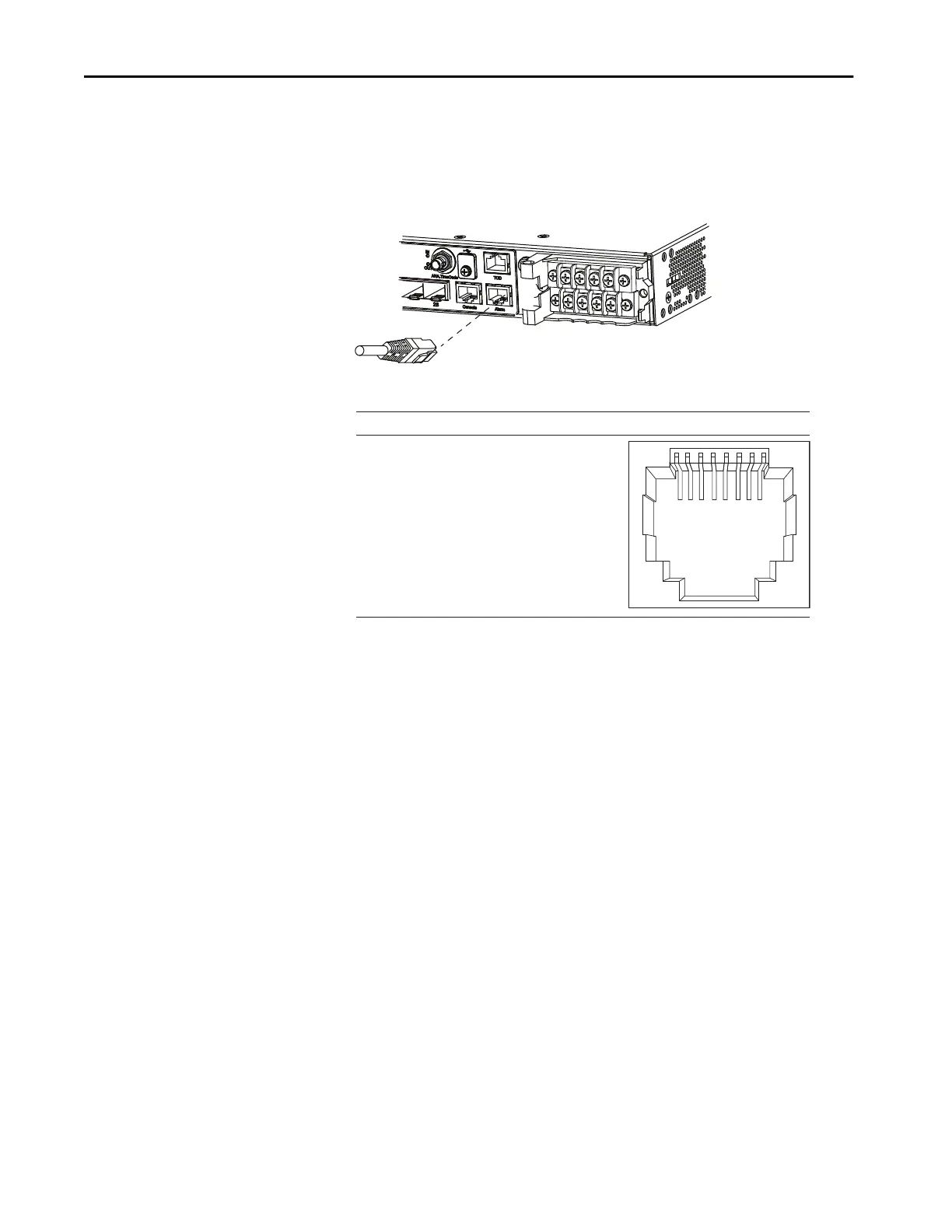

Figure 65 - Front Panel Alarm Connector
Figure 66 - Alarm Connector Pinout
Ethernet, PoE Port Cable Specifications
For Ethernet, PoE ports, use a Category 5 (Cat 5) cable with a distance of up to
100 m (328 ft).
231 45678Pin Label
1
2
3
4
5
6
7
8
Alarm 1 input
Alarm 2 input
Alarm output normally closed
Alarm 3 input
Alarm 4 input
Alarm output normally open
Alarm output common
Alarm input common

Allen-Bradley Stratix 5700 Specifications

General

Model	Stratix 5700
Port Types	RJ45, SFP
Mounting	DIN Rail or Panel Mount
Dimensions	Varies by model
Weight	Varies by model
Management	Web-based, SNMP, Command Line
Redundancy	Device Level Ring, STP, RSTP
Operating Temperature	-40°C to 70°C
Power Supply	Dual DC inputs
Input Voltage	24 VDC or 100-240 VAC
Protocols	EtherNet/IP, DLR
Security Features	SSH, HTTPS, RADIUS, TACACS+
