Allen-Bradley Stratix 5700 User Manual

Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 537
Cables and Connectors Appendix D
100Base-FX Ports
The 100Base-FX ports use the following:
• LC connectors, as shown in the following figure
• 50/125- or 62.5 /125-micron multimode fiber-optic cables

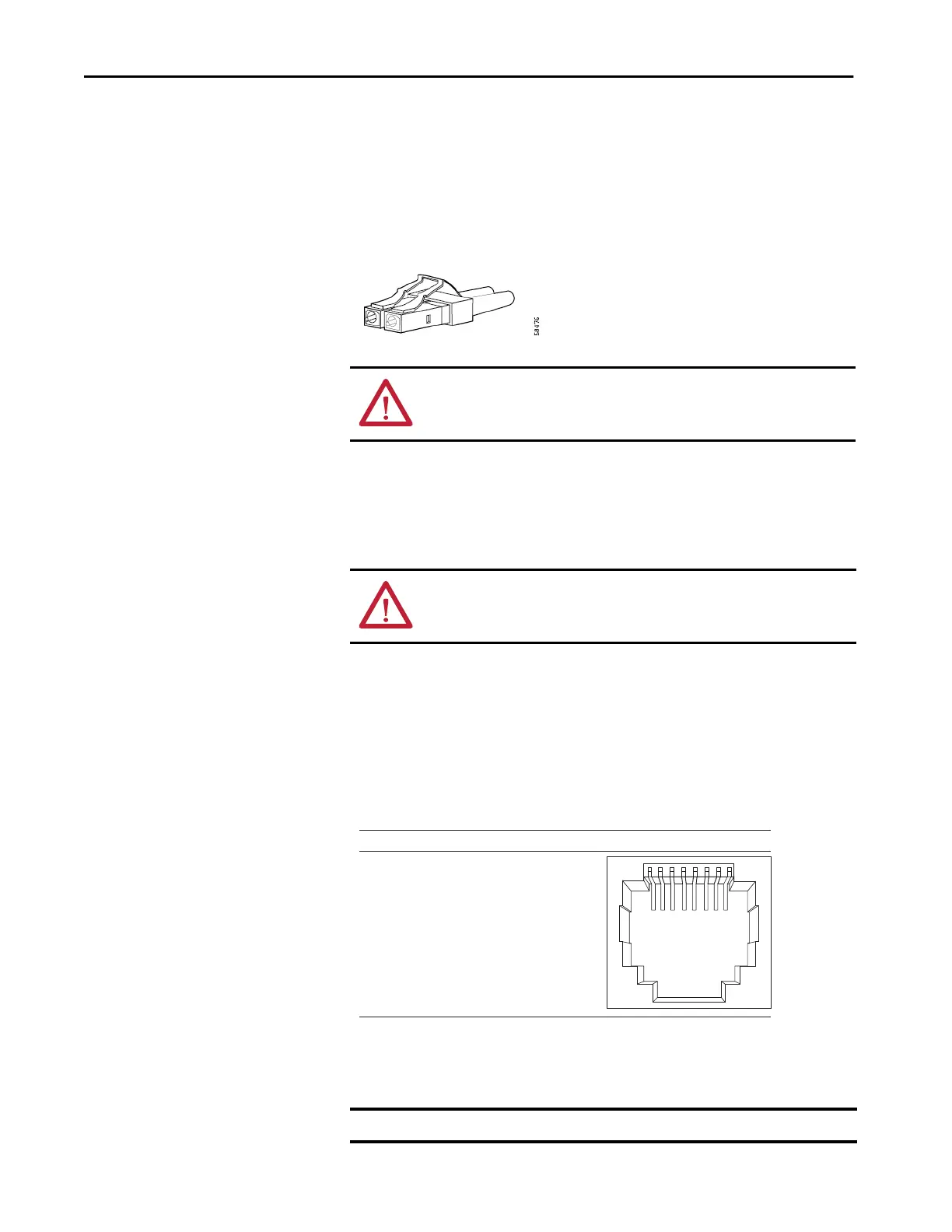

Figure 94 - Fiber-optic SFP Module LC Connector
SFP Transceiver Ports
The switch uses SFP transceivers for fiber-optic uplink ports.
Dual-purpose Ports
The Ethernet port on a dual-purpose port uses standard RJ45 connectors. The
following figure shows the pinouts.
Figure 95 - Ethernet Port RJ45 Connector
The SFP module slot on a dual-purpose port uses SFP modules for fiber-optic
ports.
ATTENTION: Invisible laser radiation can be emitted from
disconnected fibers or connectors. Do not stare into beams or view
directly with optical instruments.
ATTENTION: Invisible laser radiation can be emitted from
disconnected fibers or connectors. Do not stare into beams or view
directly with optical instruments.
IMPORTANT The auto-MDIX feature is enabled by default.
23145678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-

Allen-Bradley Stratix 5700 Specifications

General

Model	Stratix 5700
Port Types	RJ45, SFP
Mounting	DIN Rail or Panel Mount
Dimensions	Varies by model
Weight	Varies by model
Management	Web-based, SNMP, Command Line
Redundancy	Device Level Ring, STP, RSTP
Operating Temperature	-40°C to 70°C
Power Supply	Dual DC inputs
Input Voltage	24 VDC or 100-240 VAC
Protocols	EtherNet/IP, DLR
Security Features	SSH, HTTPS, RADIUS, TACACS+
