Allen-Bradley Stratix 5700 User Manual

Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 517
Appendix D
Cables and Connectors
For recommended cables and SFP modules, see the Stratix Ethernet Device
Specifications Technical Data, publication
1783-TD001.
Stratix 5410
Cables and Connectors
This section describes how to connect to ports on Stratix® 5410 switches.
10/100/1000 Ports
The 10/100/1000 Ethernet, PoE/PoE+ ports use standard RJ45 connectors
and Ethernet pinouts with internal crossovers.

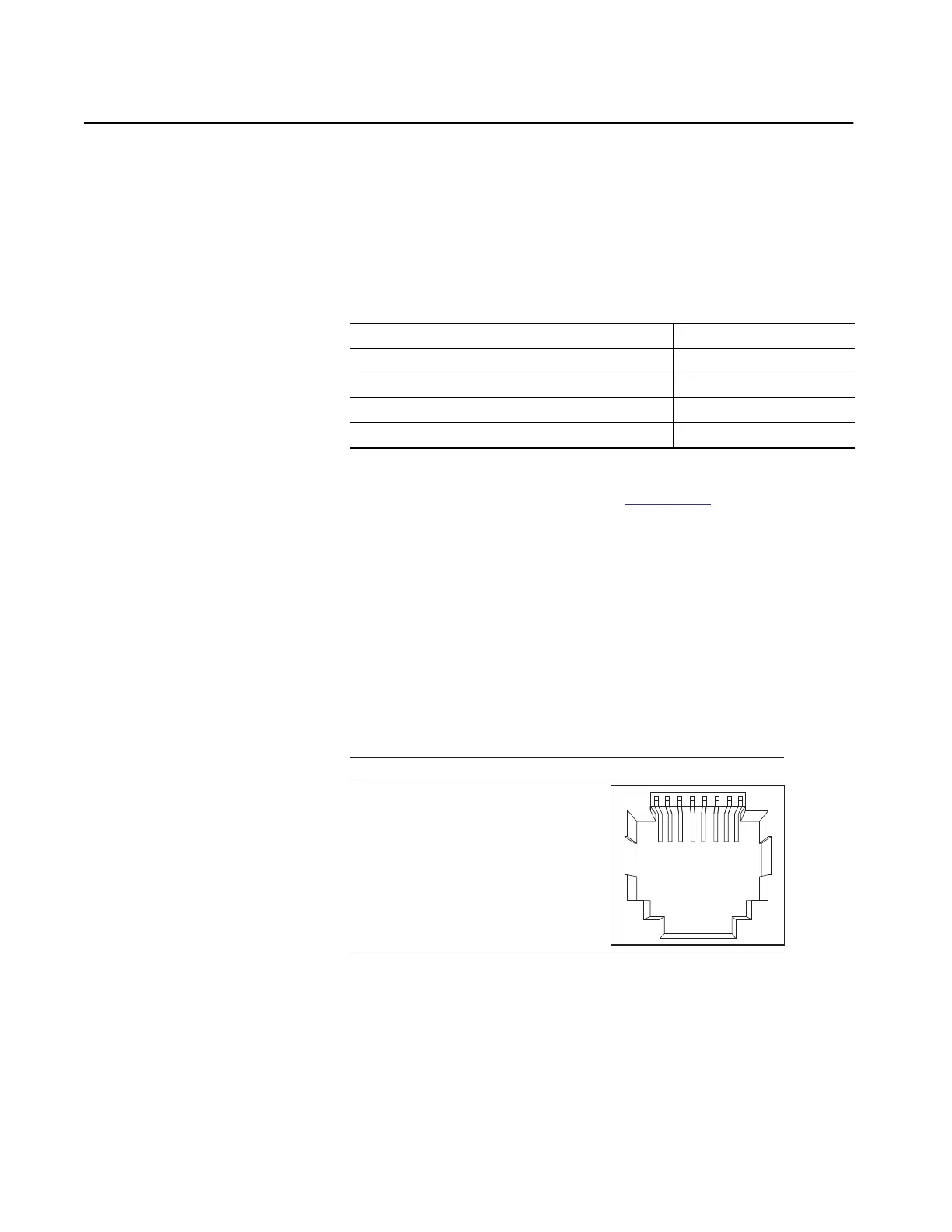

Figure 60 - 10/100/1000 Connector Pinouts
Topic Page
Stratix 5410 Cables and Connectors 517
Stratix 5400 and 5700 Cables and Connectors 523
ArmorStratix 5700 Cables and Connectors 529
Stratix 8000/8300 Cables and Connectors 534
23145678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-

Allen-Bradley Stratix 5700 Specifications

General

Model	Stratix 5700
Port Types	RJ45, SFP
Mounting	DIN Rail or Panel Mount
Dimensions	Varies by model
Weight	Varies by model
Management	Web-based, SNMP, Command Line
Redundancy	Device Level Ring, STP, RSTP
Operating Temperature	-40°C to 70°C
Power Supply	Dual DC inputs
Input Voltage	24 VDC or 100-240 VAC
Protocols	EtherNet/IP, DLR
Security Features	SSH, HTTPS, RADIUS, TACACS+
