Chapter 7 Configure Switch Features
Configure Port Mirroring in Device Manager

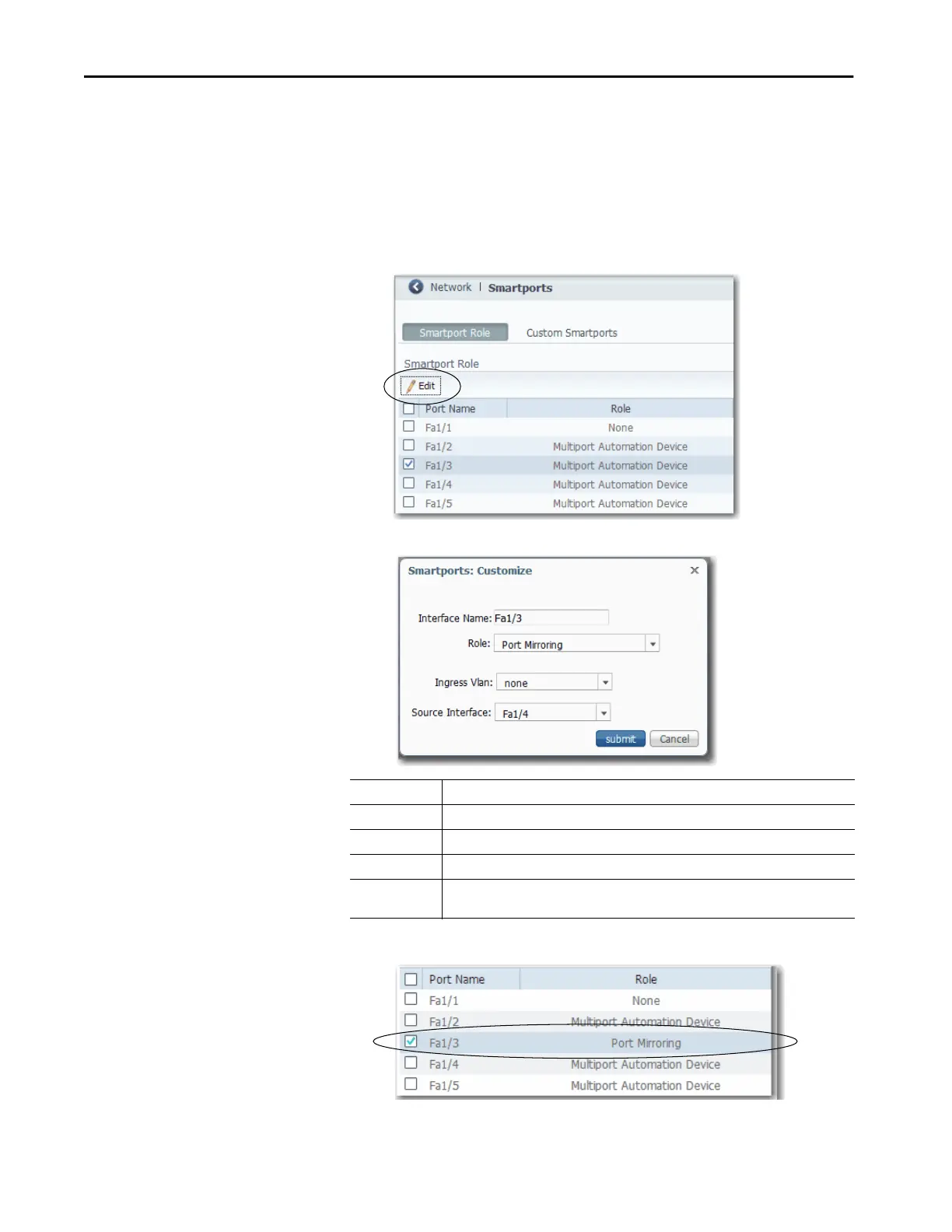

To configure port mirroring, follow these steps.
1. From the Configure menu, choose Smartports.
2. Select the checkbox next to the port to do the monitoring, and then
click Edit.
3. Complete the fields, and then click Submit.
4. Verify that the Port Mirroring role is assigned to the port.
Field Description
Interface Name Displays the port you selected to do the monitoring.
Role Choose Port Mirroring.
Ingress Vlan (Optional). Choose a VLAN to monitor.
Source Interface Choose the port to monitor. The port you assigned to the Port Mirroring role monitors traffic
that passes through this port.

Allen-Bradley Stratix 5700 Specifications

General

Model	Stratix 5700
Port Types	RJ45, SFP
Mounting	DIN Rail or Panel Mount
Dimensions	Varies by model
Weight	Varies by model
Management	Web-based, SNMP, Command Line
Redundancy	Device Level Ring, STP, RSTP
Operating Temperature	-40°C to 70°C
Power Supply	Dual DC inputs
Input Voltage	24 VDC or 100-240 VAC
Protocols	EtherNet/IP, DLR
Security Features	SSH, HTTPS, RADIUS, TACACS+
