180 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Chapter 6 Install Stratix 8000 and 8300 Switches

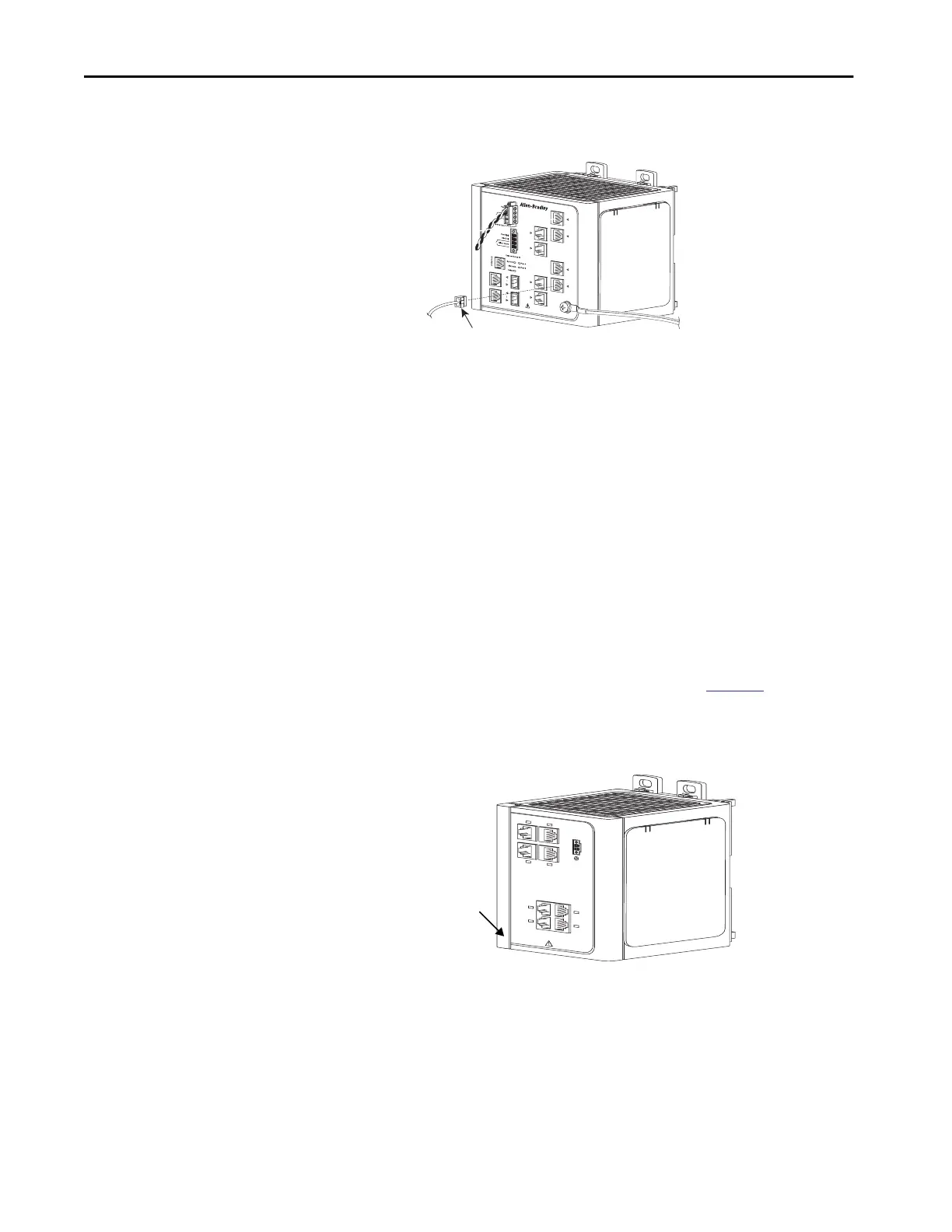

Connect to 10/100
Copper Ports
1. Insert a straight-through, twisted four-pair, Category 5e or better cable
with an RJ45 connector into the port.
2. Insert the other cable end into an RJ45 connector on the other device.
Connect to a PoE
Expansion Module Port
Two expansion modules provide PoE capability:
The 1783-MX04E PoE expansion module provides four PoE ports. You
can configure as many as four ports in any combination of PoE and
PoE+.
The 1783-MX04T04E PoE expansion module provides four PoE ports
and four non-PoE ports. You can configure as many as four ports in any
combination of PoE and PoE+.
The PoE expansion modules each require a separate power supply. For power
supply requirements based on your application, refer to
page 174.
1. Insert a straight-through, twisted four-pair, Category 5e or better cable
with an RJ45 connector into the port.
2. Insert the other cable end into an RJ45 connector on the other PoE
powered device.
VRTAA
31795-M
To 10/100 ports
32386-M
To 10/100 PoE Ports
