Allen-Bradley Stratix 5700 User Manual

Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 399
Monitor the Switch Chapter 8
Monitor NAT Statistics via the Logix Designer Application
For each NAT instance, you can monitor these diagnostics:
• Diagnostics for both private and public translations
• Diagnostics for only private translations
• Diagnostics for only public translations

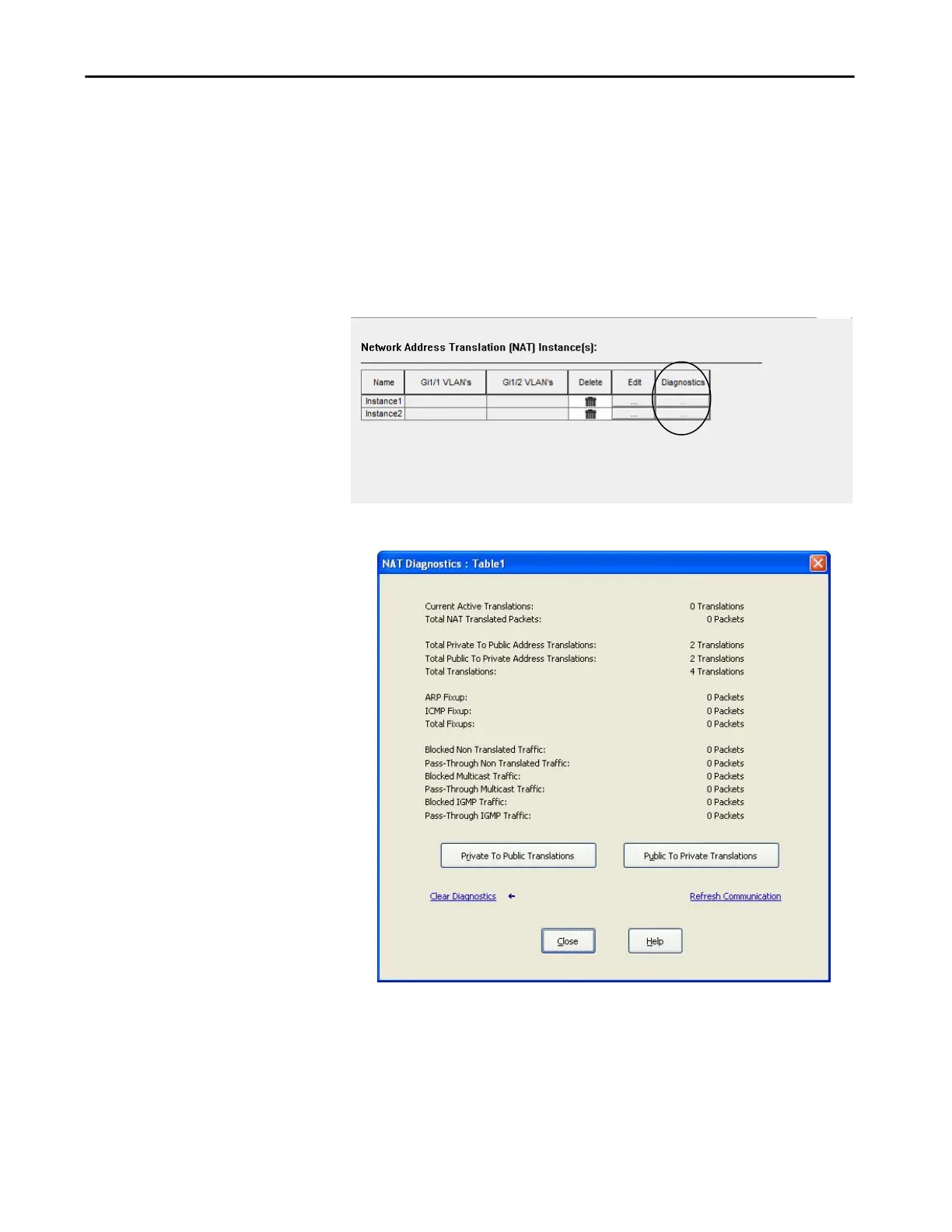

In the navigation pane, click NAT, and then click the ellipse in the Diagnostics
column.
The NAT Diagnostics dialog box displays diagnostics for the selected instance.

Allen-Bradley Stratix 5700 Specifications

General

Model	Stratix 5700
Port Types	RJ45, SFP
Mounting	DIN Rail or Panel Mount
Dimensions	Varies by model
Weight	Varies by model
Management	Web-based, SNMP, Command Line
Redundancy	Device Level Ring, STP, RSTP
Operating Temperature	-40°C to 70°C
Power Supply	Dual DC inputs
Input Voltage	24 VDC or 100-240 VAC
Protocols	EtherNet/IP, DLR
Security Features	SSH, HTTPS, RADIUS, TACACS+
