Allen-Bradley Stratix 5700 User Manual

232 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Chapter 7 Configure Switch Features
Active Ring Supervisor Displays the IP address of the active ring supervisor.
DCHP Server Role Displays the role of the ring DHCP server.
Valid values:
• Disabled
• Primary
• Secondary
• Backup
DHCP Server Status Displays the status of the DHCP server.
Valid values:
• Normal operation
• Table-ring size mismatch
• Table-ring order mismatch
• IP address conflict
Table 46 - Device Level Ring (DLR) Fields (continued)
Field Description

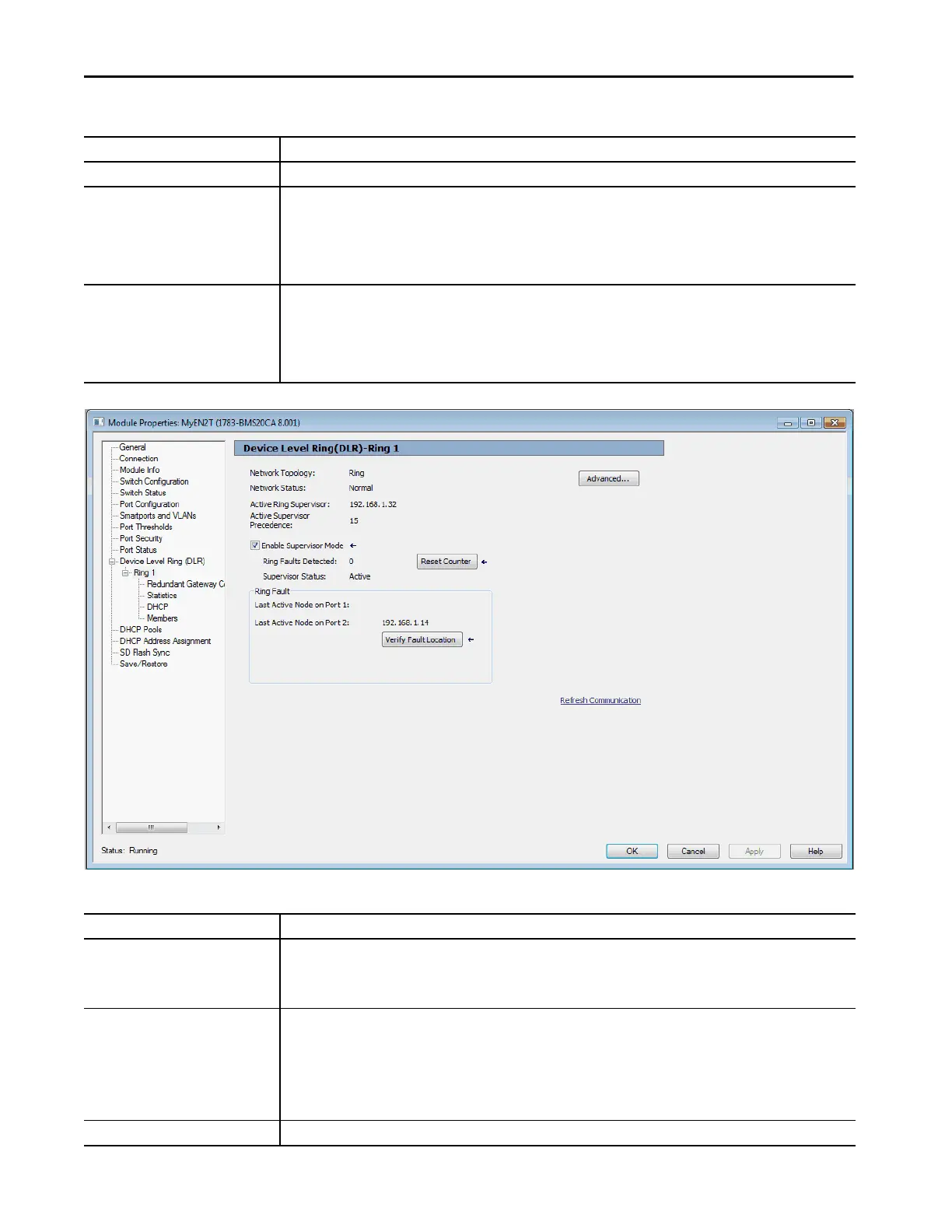

Table 47 - Ring 1/Ring 2/Ring 3 Fields
Field Description
Network Topology Displays whether the switch is operating in a DLR or linear network.
Valid values:
• Ring
• Linear
Network Status Displays the status of the network.
Valid values:
• Normal
• Ring Fault
• Unexpected Loop Detected
• Partial Network Fault
• Rapid Fault/Restore Cycle
Active Ring Supervisor Displays the IP address of the active ring supervisor.

Allen-Bradley Stratix 5700 Specifications

General

Model	Stratix 5700
Port Types	RJ45, SFP
Mounting	DIN Rail or Panel Mount
Dimensions	Varies by model
Weight	Varies by model
Management	Web-based, SNMP, Command Line
Redundancy	Device Level Ring, STP, RSTP
Operating Temperature	-40°C to 70°C
Power Supply	Dual DC inputs
Input Voltage	24 VDC or 100-240 VAC
Protocols	EtherNet/IP, DLR
Security Features	SSH, HTTPS, RADIUS, TACACS+
