Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 237
Configure Switch Features Chapter 7
2. From the DHCP Pool field, choose the name of the IP address pool to
use for ring devices.
This pool must be previously configured, as described on
page 243.
DHCP persistance and DHCP for ring devices can coexist, but cannot
share the same pool.

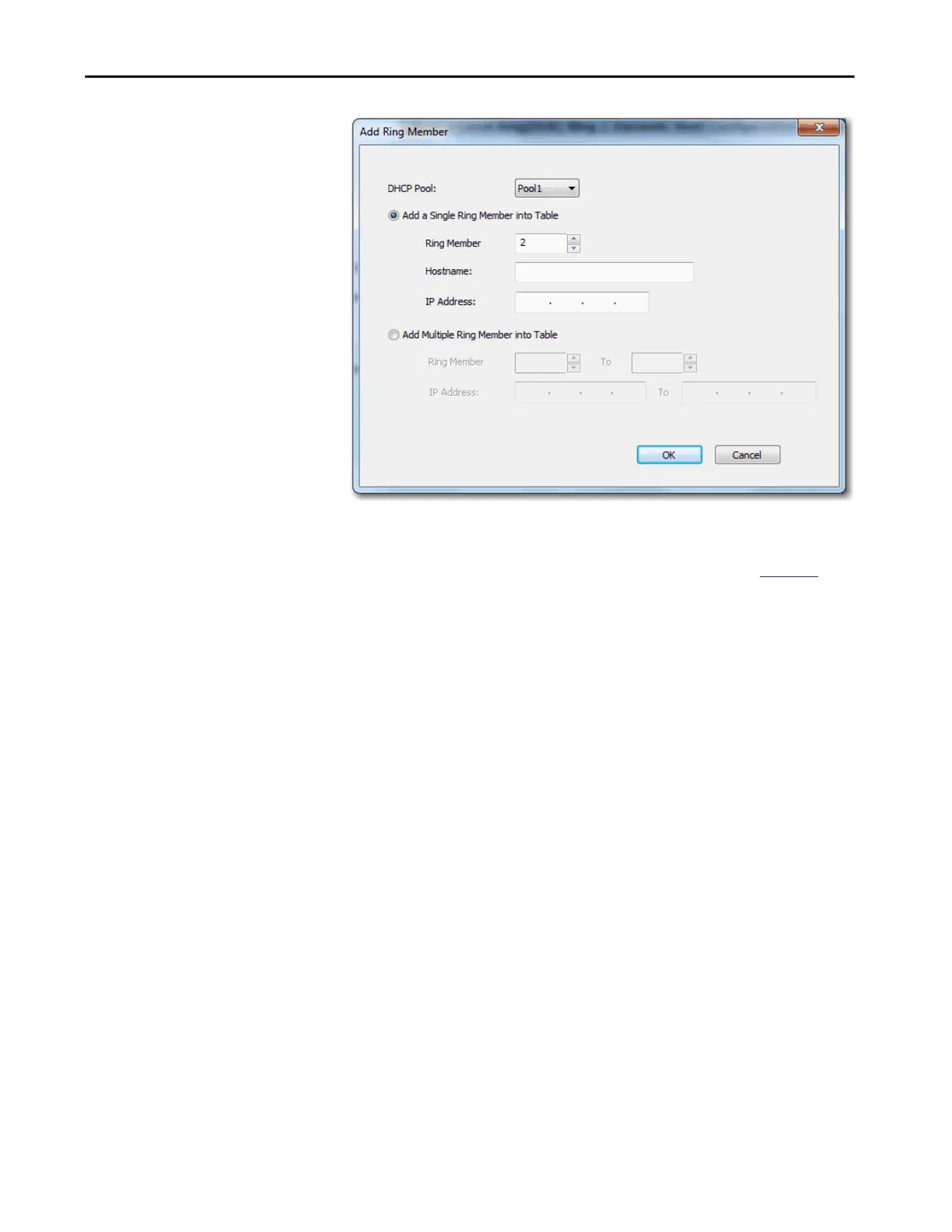

3. To assign an IP address to a single ring member, click Add a Single Ring
Member into Table, and then compete these fields:
• Ring Member—Type a value between 2 …255 to indicate the
location of the ring device. The switch is always ring member 1.
• Hostname—Type a host name to associate with the IP address for the
ring member.
• IP Address—Type the IP address for the ring member.
4. To assign IP addresses to multiple ring members, click Add Multiple
Ring Members into Table, and then complete these fields:
• Ring Member…To—Type values between 2 …255 to indicate the
starting and ending locations of the ring members.
• IP Address…To—Type the starting and ending IP addresses for the
ring members.
5. Click OK.

Allen-Bradley Stratix 5700 Specifications

General

Model	Stratix 5700
Port Types	RJ45, SFP
Mounting	DIN Rail or Panel Mount
Dimensions	Varies by model
Weight	Varies by model
Management	Web-based, SNMP, Command Line
Redundancy	Device Level Ring, STP, RSTP
Operating Temperature	-40°C to 70°C
Power Supply	Dual DC inputs
Input Voltage	24 VDC or 100-240 VAC
Protocols	EtherNet/IP, DLR
Security Features	SSH, HTTPS, RADIUS, TACACS+
