Configure Switch Features Chapter 7
Configure Traffic Permits and Fixups
Use caution when you configure traffic permits and fixups. We recommend
that you use the default values.

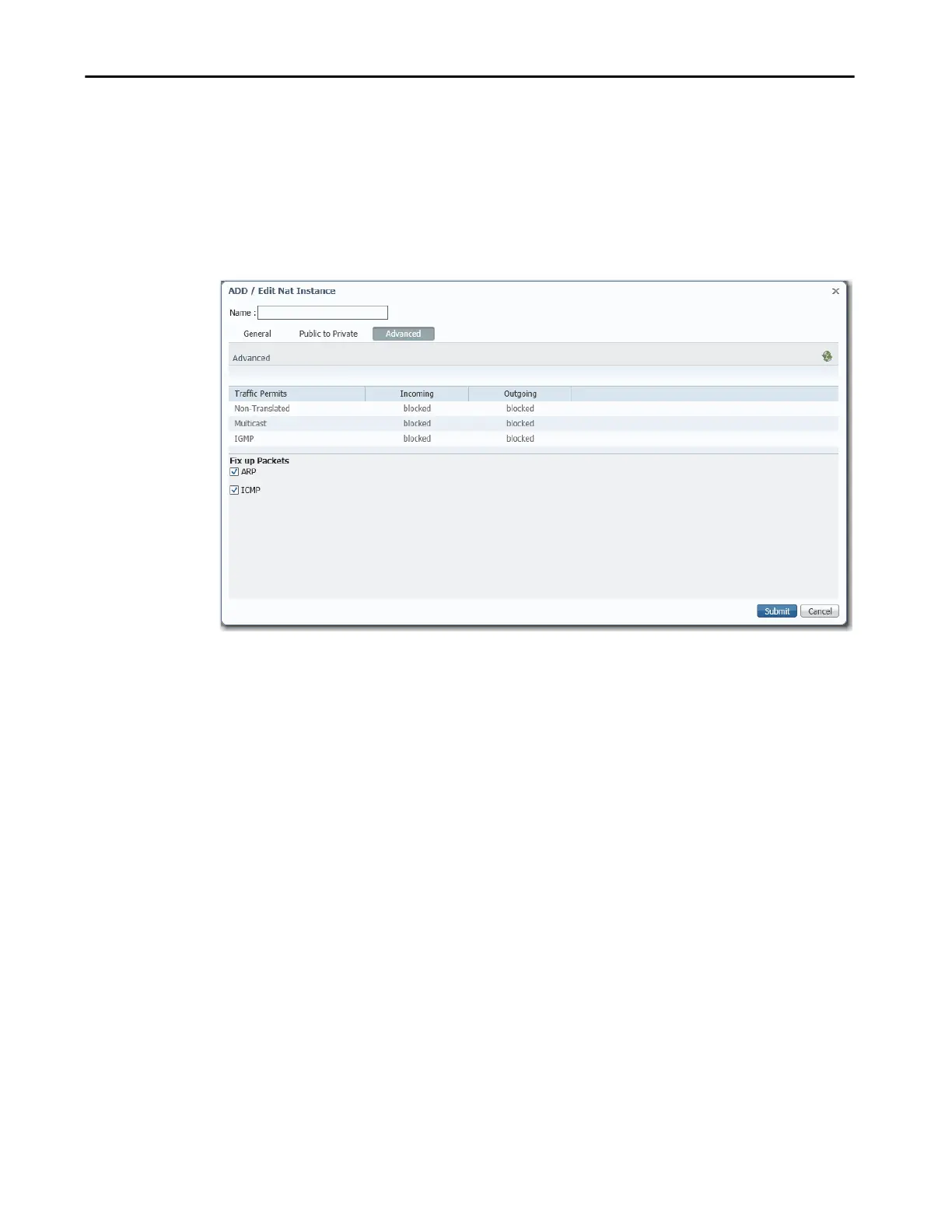

To configure traffic permits or fixups, follow these steps.
1. Click the Advanced tab.
2. Choose one of these options for incoming and outgoing packets that are
not handled by NAT:
• Pass-through—Permit the packets to pass across the NAT boundary.
• Blocked—Drop the packets.
3. In the Fix up Packets area, check or clear the checkboxes to enable or
disable fixups for ARP and ICMP.
By default, fixups are enabled for both ARP and ICMP.
4. Click Submit.

Allen-Bradley Stratix 5700 Specifications

General

Model	Stratix 5700
Port Types	RJ45, SFP
Mounting	DIN Rail or Panel Mount
Dimensions	Varies by model
Weight	Varies by model
Management	Web-based, SNMP, Command Line
Redundancy	Device Level Ring, STP, RSTP
Operating Temperature	-40°C to 70°C
Power Supply	Dual DC inputs
Input Voltage	24 VDC or 100-240 VAC
Protocols	EtherNet/IP, DLR
Security Features	SSH, HTTPS, RADIUS, TACACS+
