Configure Switch Features Chapter 7

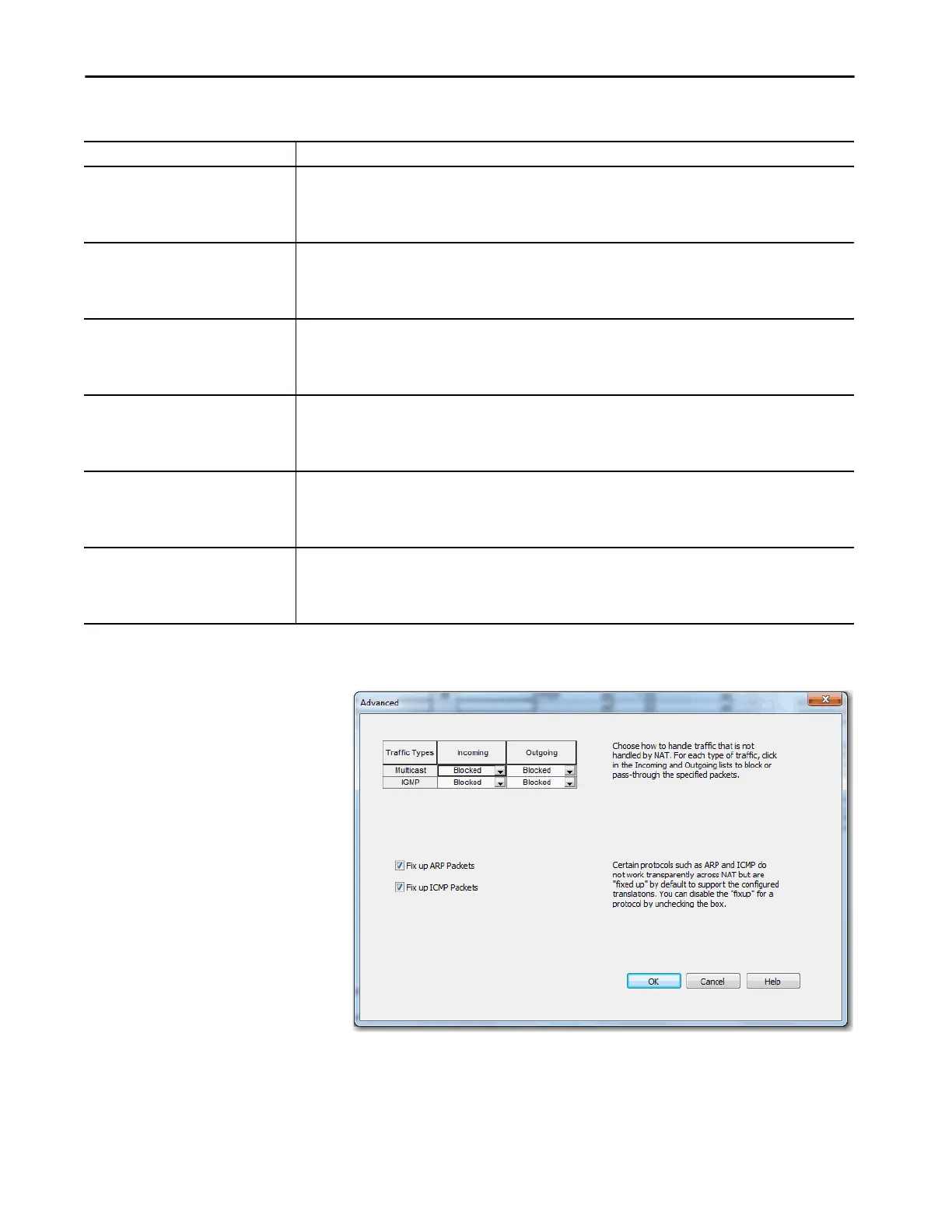

8. To configure traffic permits and fixups, click Advanced to display the
Advanced view.
Table 74 - Valid Subnet Addresses
Subnet Mask Subnet Address
255.255.0.0 The last two octets of the address must end in 0.
EXAMPLE:
Private address: 192.168.0.0
Public address: 10.200.0.0
255.255.255.0 The last octet of the address must end in 0.
EXAMPLE:
Private address: 192.168.1.0
Public address: 10.200.1.0
255.255.255.128 The last octet of the address must end in 0 or 128.
EXAMPLE:
Private address: 192.168.1.0 or 192.168.1.128
Public address: 10.200.1.0 or 10.200.1.128
255.255.255.192 The last octet of the address must end in one of the following: 0, 64, 128, 192.
EXAMPLE:
Private address: 192.168.1.64
Public address: 10.200.1.64
255.255.255.224 The last octet of the address must in one of the following: 0, 32, 64, 96, 128, 160, 192, 224.
EXAMPLE:
Private address: 192.168.1.32
Public address: 10.200.1.32
255.255.255.240 The last octet of the address must in one of the following: 0, 16, 32, 48, 64, 80, 96, 112, 128, 144, 160, 176, 192, 208, 224, 240.
EXAMPLE:
Private address: 192.168.1.16
Public address: 10.200.1.16
