Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 299
Configure Switch Features Chapter 7

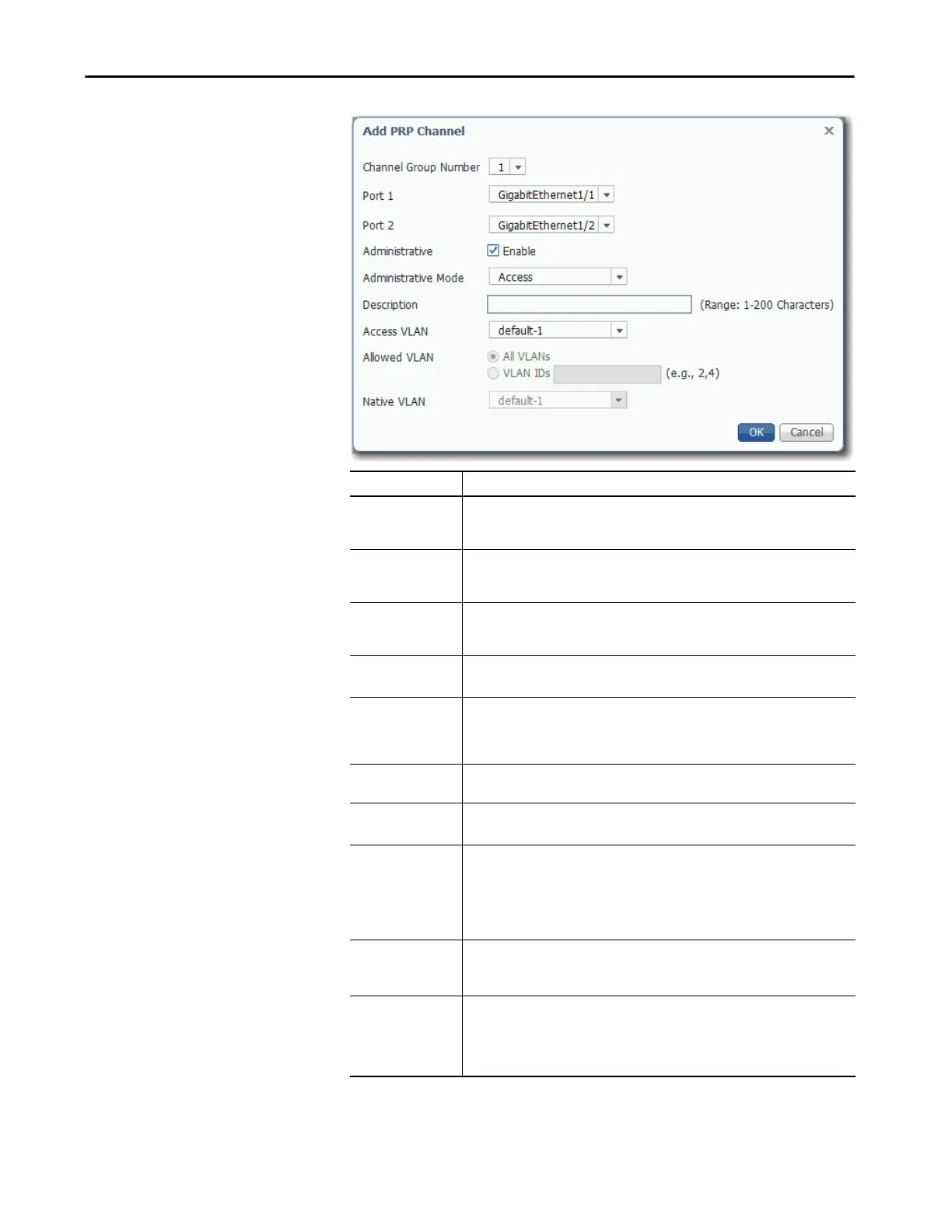

Field Description
Channel Group Number Choose a channel group number:
• 1 (default)
•2
Port 1 Choose a port to be a member of the channel group:
• Valid ports on Stratix 5400 switches: Gi1/1 and Gi1/2
• Valid ports on Stratix 5410 switches: Gi1/17 and Gi1/18
Port 2 Choose a port to be a member of the channel group:
• Valid ports on Stratix 5400 switches: Gi1/3 and Gi1/4
• Valid ports on Stratix 5410 switches: Gi1/19 and Gi1/20
Administrative Check the Enable checkbox to enable the switch ports. By default, the ports are enabled.
Clear the Enable checkbox to disable the switch ports.
Administrative Mode Choose a mode to assign to the PRP channel group:
• Access (default)—Layer 2
• Trunk—Trunk mode
• Routed—Layer 3
Description Type a description for the PRP channel. The description can contain a maximum of 200
characters.
Access VLAN (Access mode only). Choose the VLAN associated with the PRP channel group.
The default value is default-1.
Allowed VLAN (Trunk mode only). Click one of these options to specify the VLANs to transmit traffic from
this channel group in tagged format:
• All VLANS (default)—Click to allow all VLANs to transmit traffic from this channel
group.
• VLAN IDs—Click to allow only the VLANs you specify to transmit traffic from this
channel group. Type each VLAN ID separated by a comma.
Native VLAN (Trunk mode only). Choose the VLAN to send and receive untagged traffic on the trunk
port.
The default value is default-1.
IP Assignment Mode (Routed mode only). Click one of these options to specify the IP address of this PRP
channel group:
• No IP Address—Do not assign an IP address.
• Static—Assign a static IP address. Type the IP address and the subnet mask.
• DHCP—Allow an IP address to be assigned via DHCP.
