Allen-Bradley Stratix 5700 User Manual

306 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Chapter 7 Configure Switch Features

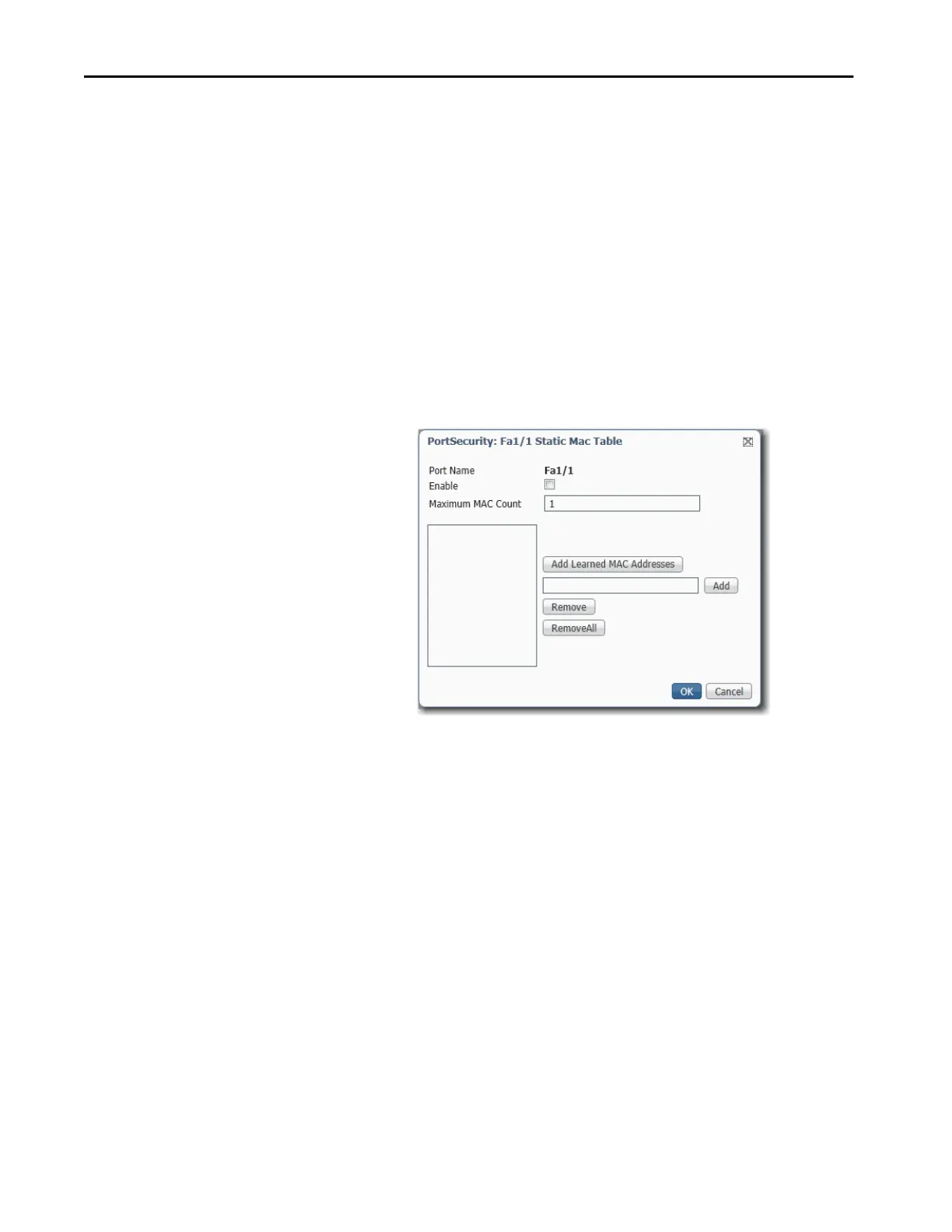

To change the Static MAC Addresses table for a port, follow these steps.
1. Click the radio button next to the port to configure.
2. Click Edit.
3. Clear or check the Enable checkbox.
4. Configure MAC addresses as follows:
• To add the existing MAC addresses of devices that are currently
connected to a port, click Add Learned MAC Addresses.
• To add a specific MAC address to the table, type a MAC address in
the format fields and click Add.
• To remove a MAC address from the table, select the MAC address
and click Remove.
• To clear the MAC address table, click Remove All.
5. Click OK.

Allen-Bradley Stratix 5700 Specifications

General

Model	Stratix 5700
Port Types	RJ45, SFP
Mounting	DIN Rail or Panel Mount
Dimensions	Varies by model
Weight	Varies by model
Management	Web-based, SNMP, Command Line
Redundancy	Device Level Ring, STP, RSTP
Operating Temperature	-40°C to 70°C
Power Supply	Dual DC inputs
Input Voltage	24 VDC or 100-240 VAC
Protocols	EtherNet/IP, DLR
Security Features	SSH, HTTPS, RADIUS, TACACS+
