5–6 Chapter 5: IP Core Interfaces
Avalon-ST RX Interface
Cyclone V Hard IP for PCI Express November 2011 Altera Corporation
1 The Avalon-ST protocol, as defined in Avalon Interface Specifications, is big endian,
while the Hard IP for PCI Express packs symbols into words in little endian format.
Consequently, you cannot use the standard data format adapters available in Qsys.
Figure 5–4 illustrates the mapping of Avalon-ST RX packets to PCI Express TLPs for a
three dword header with qword aligned addresses. Note that the byte enables
indicate the first byte of data is not valid and the last dword of data has a single valid
byte.
Figure 5–5 shows the mapping of Avalon-ST RX packets to PCI Express TLPs for TLPs
for a four dword header with qword aligned addresses with a 64-bit bus.

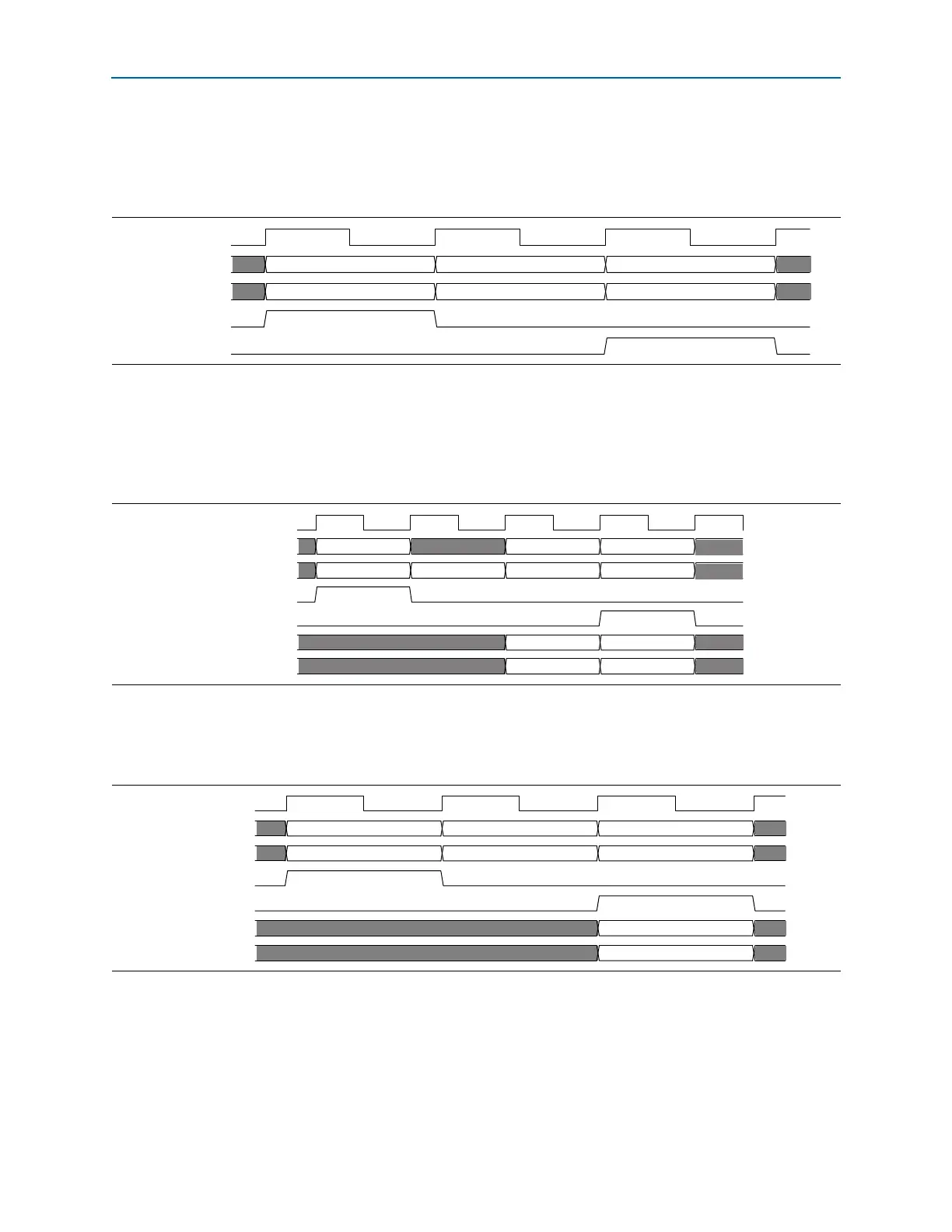

Figure 5–3. 64-Bit Avalon-ST rx_st_data<n> Cycle Definition for 3-Dword Header TLP with Non-Qword Aligned Address
coreclkout
rx_st_data[63:32]
rx_st_data[31:0]
rx_st_sop
rx_st_eop
Header1 Data0 Data2
Header0 Header2 Data1
Figure 5–4. 64-Bit Avalon-ST rx_st_data<n> Cycle Definition for 3-Dword Header TLP with Qword Aligned Address
rx_st_data[63:32]
rx_st_data[31:0]
rx_st_sop
rx_st_eop
rx_st_be[7:4]
rx_st_be[3:0]
Header 1 Data1 Data3
Header 0 Header2 Data0 Data2
F 1
FE
coreclkout
Figure 5–5. 64-Bit Avalon-ST rx_st_data<n> Cycle Definitions for 4-Dword Header TLP with Qword Aligned Address
coreclkout
rx_st_data[63:32]
rx_st_data[31:0]
rx_st_sop
rx_st_eop
rx_st_be[7:4]
rx_st_be[3:0]
header1 header3 data1
header0 header2 data0
F
F
