Avalon-ST TX Interface
Cyclone V Hard IP for PCI Express November 2011 Altera Corporation
Figure 5–8 illustrates back-to-back transmission on the 64-bit Avalon-ST RX interface
with no idle cycles between the assertion of
rx_st_eop and rx_st_sop .
f For a complete description of the TLP packet header formats, refer to Appendix A,
Transaction Layer Packet (TLP) Header Formats.
Avalon-ST TX Interface
Table 5–4 describes the signals that comprise the Avalon-ST TX Datapath. The TX data
signal can be 64 or 128 bits.

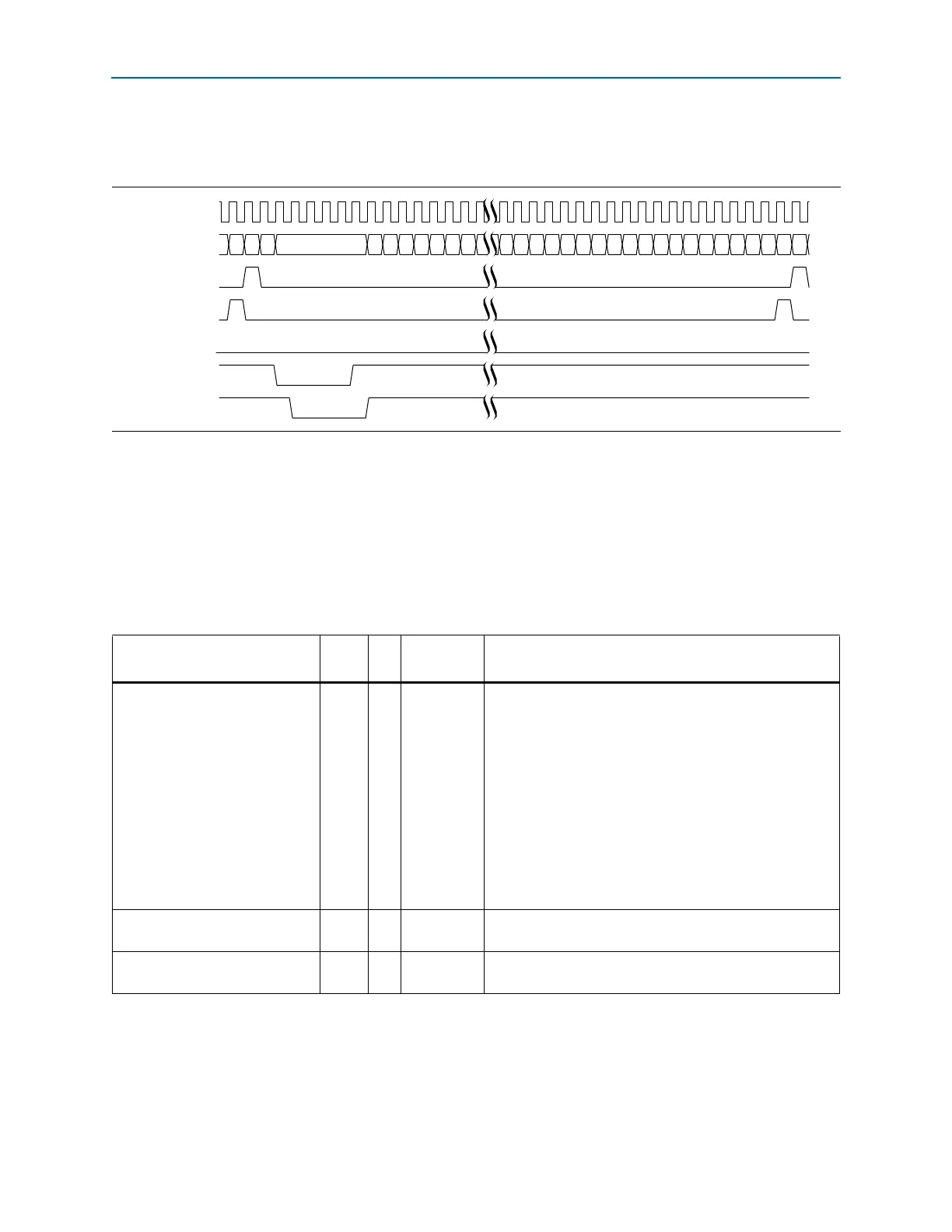

Figure 5–8. 64-Bit Avalon-ST Interface Back-to-Back Transmission
coreclkout
rx_st_data[63:0]
rx_st_sop
rx_st_eop
rx_st_empty
rx_st_ready
rx_st_valid
C. C. C. C. CCCC008347890. C. C. C. C. C. C. C. C. C. C. C. C. C. C. C. C. C. C. C. C. C. C. C. C. C. C.
C. C.
Table 5–4. 64- or 128-Bit Avalon-ST TX Datapath (Part 1 of 3)
Signal Width Dir
Avalon-ST
Type
Description
tx_st_data 64 I data
Data for transmission. Transmit data bus. Refer to
Figure 5–9 through Figure 5–13 for the mapping of TLP
packets to
tx_st_data and examples of the timing of the
64-bit interface.
The Application Layer must provide a properly formatted
TLP on the TX interface. The mapping of message TLPs is
the same as the mapping of Transaction Layer TLPs with 4
dword headers. The number of data cycles must be correct
for the length and address fields in the header. Issuing a
packet with an incorrect number of data cycles results in
the TX interface hanging and unable to accept further
requests.
tx_st_sop 1I
start of
packet
Indicates first cycle of a TLP when asserted in the same
cycle with
tx_st_valid .
tx_st_eop 1I
end of
packet
Indicates last cycle of a TLP when asserted in the same
cycle with
tx_st_valid .
