LW500A/LW600A PULSED Nd:YAG LASER
B-20 990-539
Combination Shared Output
In addition to simple Energy-Shared and Time-Shared outputs, the laser can also be configured to deliver
combination outputs. Specifically the Laser is designed to produce:
2E2T – Two Time-Shared outputs of two Energy-Shared deliveries.

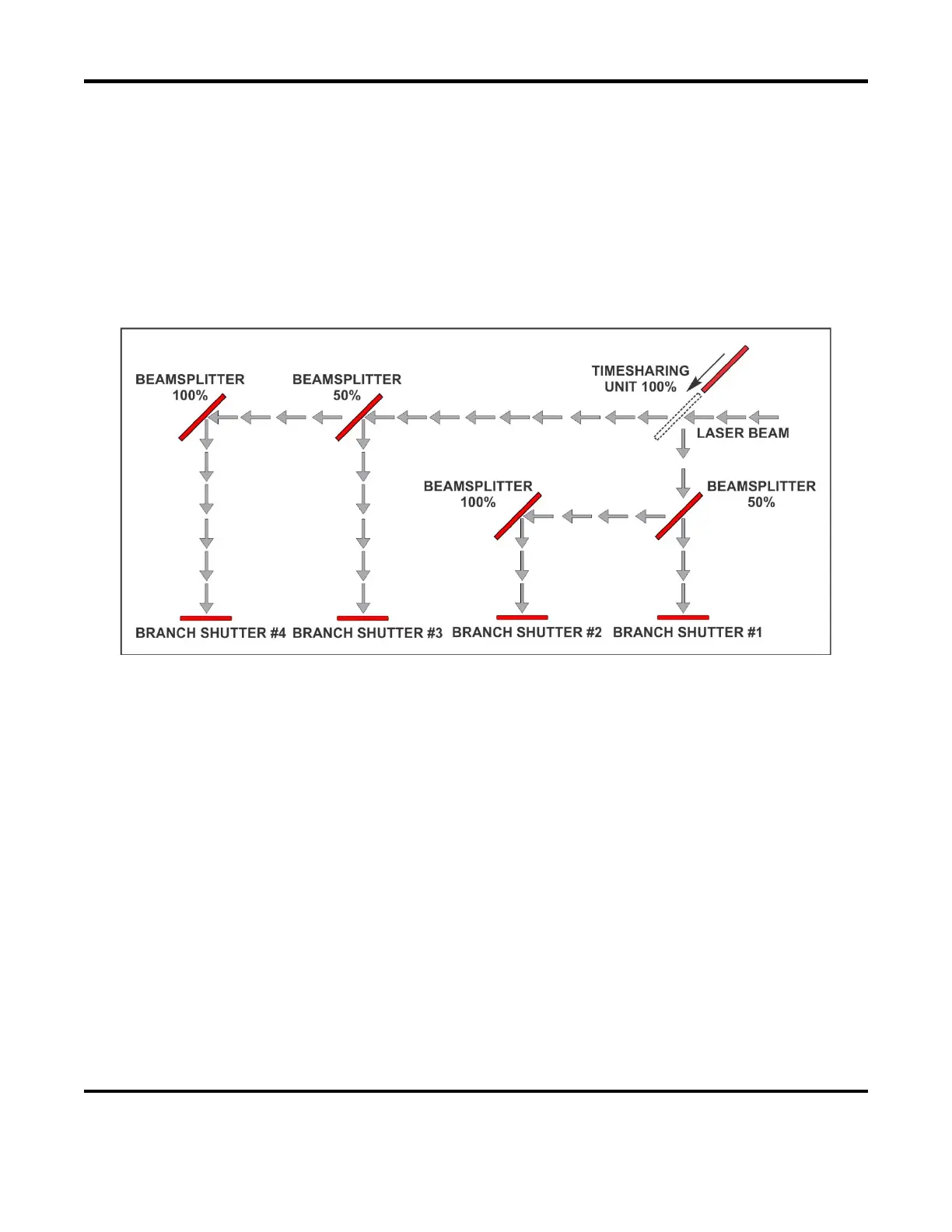

2 Time-shared Outputs of 2 Energy-shared Deliveries
(Two sets of 2 energy shared Outputs)
2 Time-shared Outputs of 2 Energy-shared deliveries each (2E2T)
When the Laser is configured in one of the 8 standard configurations, the Branch Shutters and Time-
Shared Shutters move automatically when BEAM-1/SHUTTER-1 through BEAM-4/SHUTTER-4 are turned
ON.
