Amada LW500A - Connecting to Laser Beam Output Unit (Focus Head)

CHAPTER 2: INSTALLATION AND SETUP
LW500A/LW600A PULSED Nd:YAG LASER
990-539 2-9
Connecting to Laser Beam Output Unit (Focus Head)

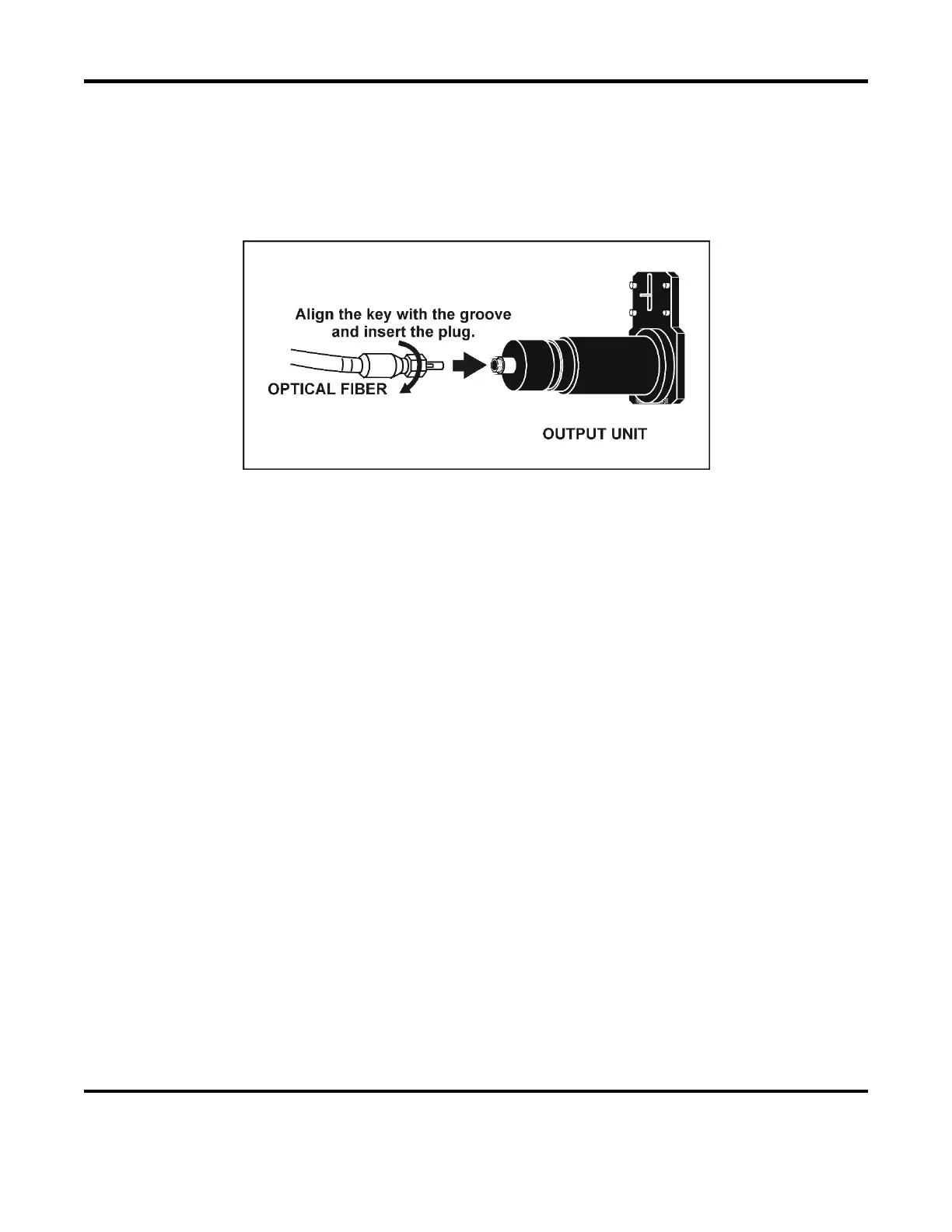

Remove the protective cap from the other end of the optical fiber and blow off any dust using an air
blower, then connect the fiber to the output unit (focus head). Align the key of the fiber plug with the
groove of the output unit (focus head). Do not over-tighten the fiber plug, hand-tighten only.
CAUTION: Be careful not to apply any shock to the optical fiber or bend it beyond its minimum
bending radius.
