CHAPTER 2: INSTALLATION AND SETUP
LW500A/LW600A PULSED Nd:YAG LASER
2-4 990-539
Supplying Power
To ensure safety and optimal operation, the laser must be properly grounded. A Neutral connection is not
required or used on this laser. However a PE (protective earth) Ground is provided and MUST be used.
DO NOT connect the Neutral line to the PE terminal. Service should be from a ground fault circuit breaker
that is inverter high frequency surge-resistant.
Open the front door and remove the terminal block cover to access the power supply input terminals.

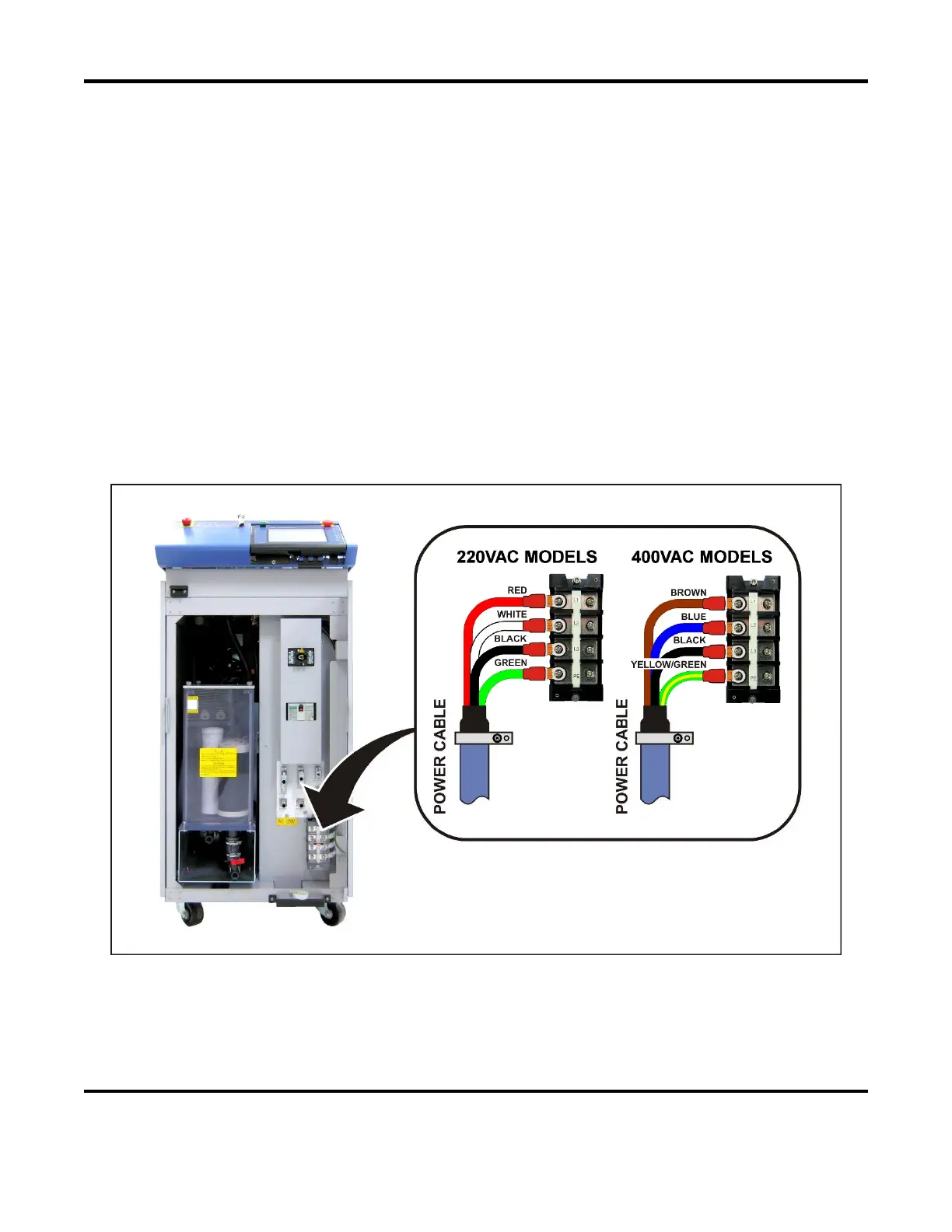

Route the power cable through the bottom of the Laser and connect it to the power supply input terminals,
checking the color of the wires. The phases must be connected to the laser in a specific order. If you get
an E05: Phase Trouble error when first turning on the laser, simply reverse two of the phases.
220VAC Models: The Laser is factory jumpered for 220VAC operation. Consult Amada Miyachi
America if you plan on operating the Laser at 200VAC or 240VAC.
NOTE: Depending on the manufacturing date, the 240VAC option may not be available.
400VAC Models: The Laser is factory jumpered for 400VAC operation. Consult Amada Miyachi
America if you plan on operating the Laser at 380VAC.
