CHAPTER 1: SYSTEM DESCRIPTION
LW500A/LW600A PULSED Nd:YAG LASER
990-539 1-7

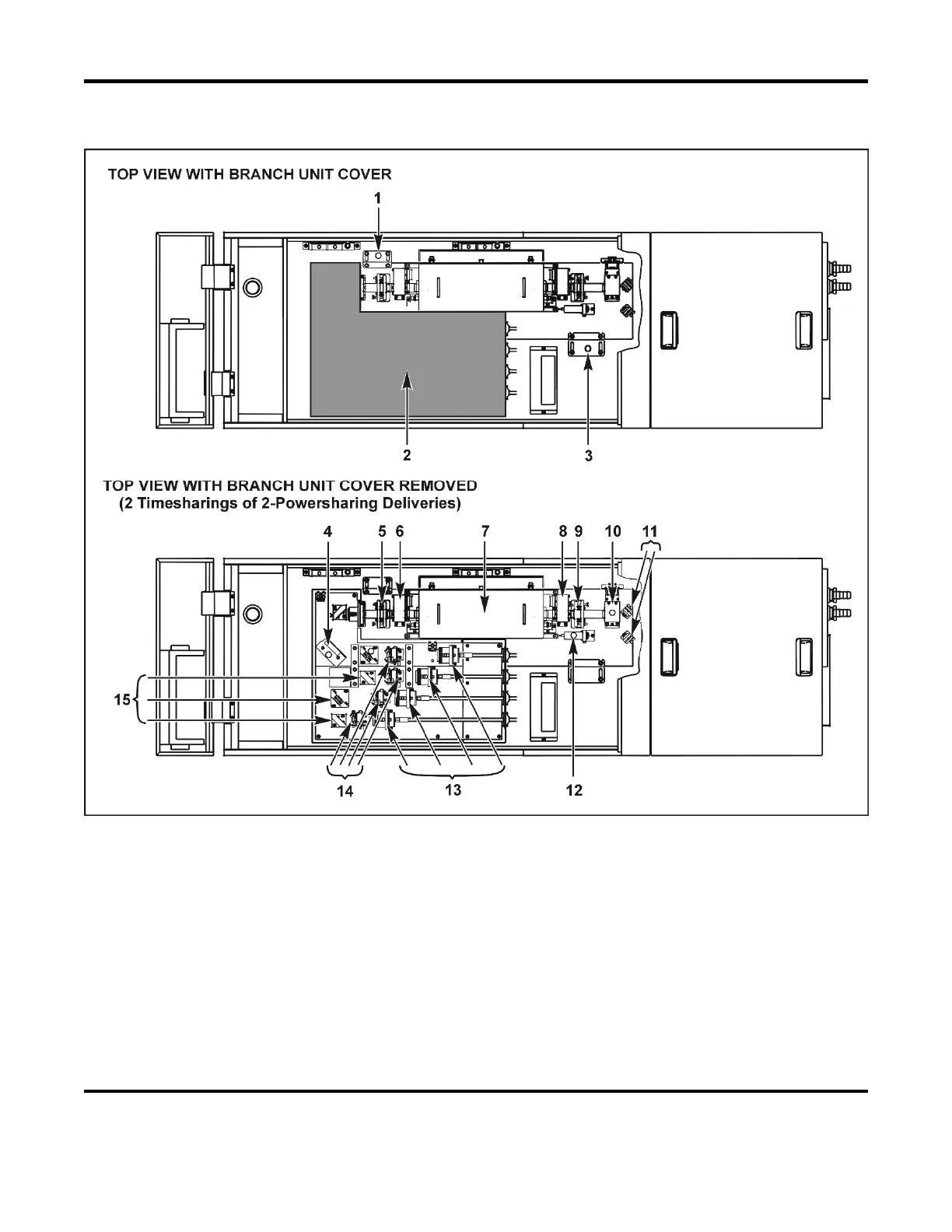

Laser Oscillator
1 Hold-down Bracket. The yellow hold-down bracket is used to lock the laser oscillator in place to
prevent any damage or dislocation during transportation. Be sure to remove this hold-down bracket
before starting operations.
2 Branch Unit Cover. Do not remove this dust-proof cover except when installing and removing the
optical fiber(s).
3 Hold-down Bracket. The yellow hold-down Bracket is used to lock the laser oscillator in place to
prevent any damage or dislocation during transportation. Be sure to remove this hold-down bracket
before starting operations.
To Next Page
