LW500A/LW600A PULSED Nd:YAG LASER
xvi 990-539

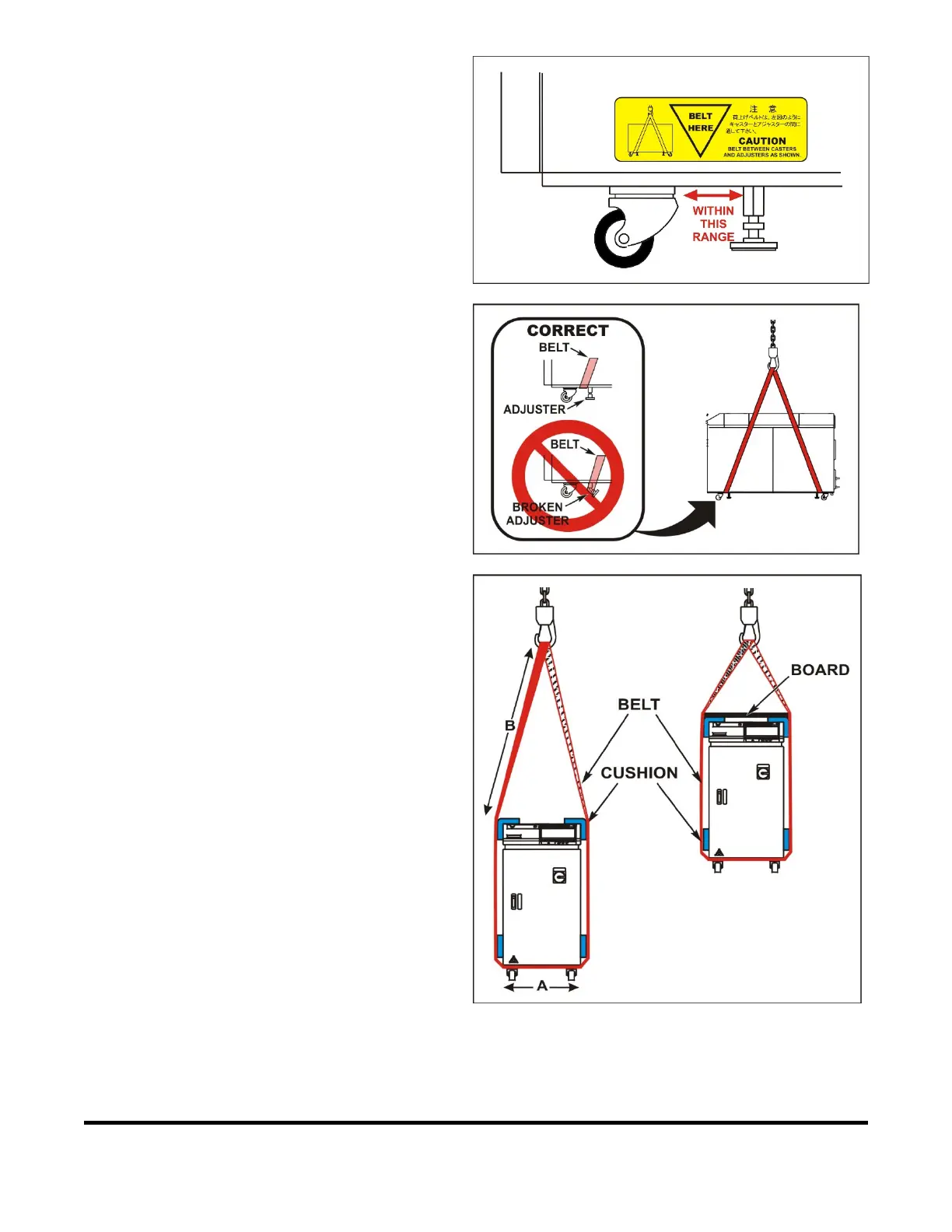

Crane Precautions
When lifting the Laser, belt it between the
caster and level adjuster as shown in the
BELT HERE label.
Use two belts.
During transportation, keep the Laser
horizontal.
To prevent damaging the level adjusters,
make sure that the lifting belt is not
interfering with the level adjuster.
Using Cushions
When lifting with a belt, properly cushion
the Laser.
When craning the Laser, use cushions
(blanket, sponge, or rubber) between the
Laser and belts to prevent damaging the
Laser. Keep the Laser stable.
Verify that the distance (B) between the top
corner of the Laser and the crane hook is at
least 1.5 times the Laser width (A)
[including the protective cushions].
When the belt is not long enough as shown,
insert a board (plywood, laminated board, or
angle board) on the Laser to prevent
damage to the top surface of the Laser.
Do not belt the front door, as it may become
deformed and will not open/close properly.
