CHAPTER 3: PROGRAMMING FUNCTIONS
LW500A/LW600A PULSED Nd:YAG LASER
990-539 3-5

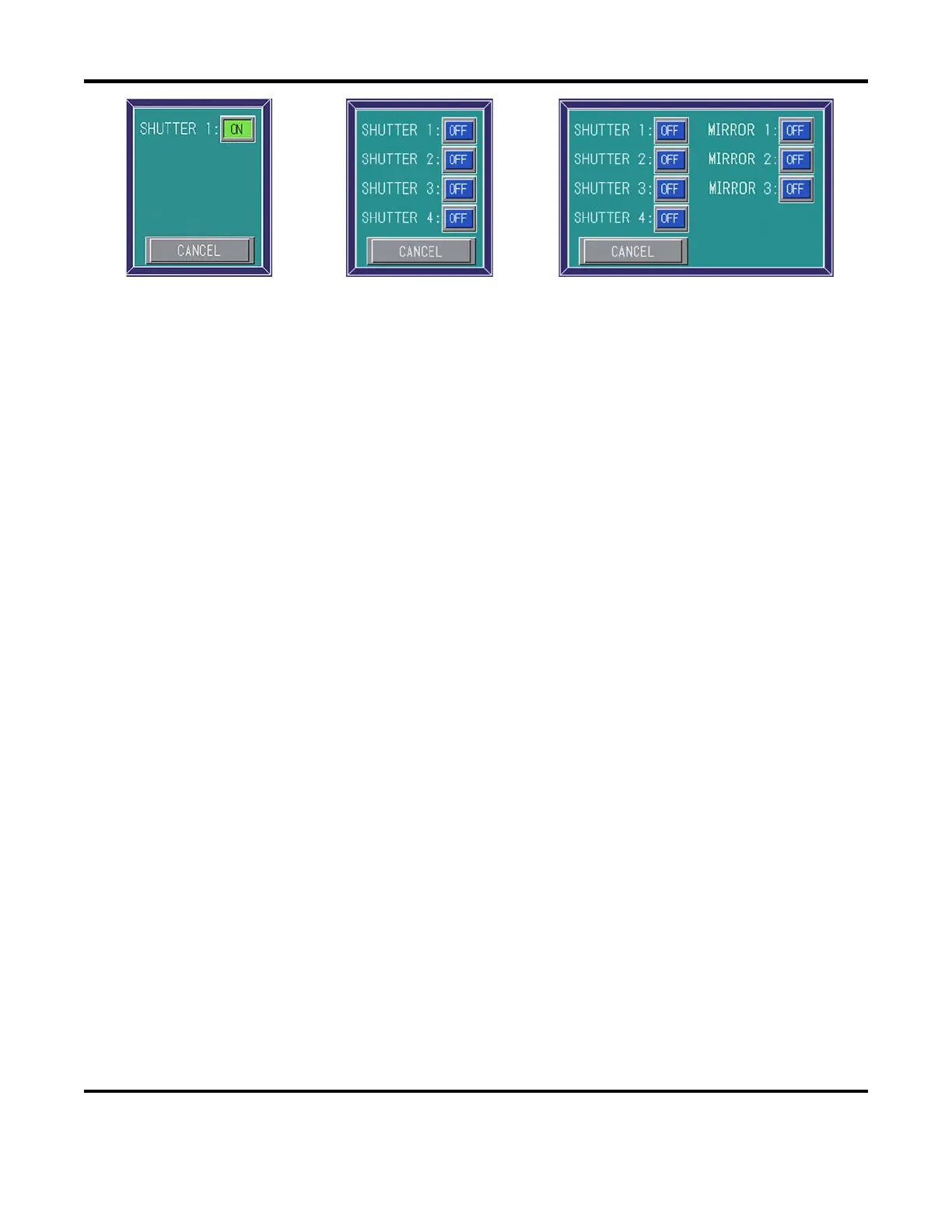

Single Output 4 Energy Shares Independent Control
7 TROUBLE RESET – When a Laser error occurs, the screen will display an error message describing
the reported error. Once the source of the error is fixed, select this button to clear the error message
screen.
8 POSITION
– Turns the guide beam ON/OFF.
9 MAIN SHUT – Controls the OPEN/CLOSE position of the Main Shutters. The LW500A/600A Laser
Welder contains two Main Shutters that open and close simultaneously. When closed Laser
oscillation is impossible. When ON the main shutters will OPEN. Likewise, when OFF the main
shutters will CLOSE.
10 HV (High Voltage) – Controls the High Voltage in the Laser. High Voltage must be ON in order to
enable Laser Oscillation. When ON the High Voltage will turn ON. Likewise, when OFF the High
Voltage will turn OFF.
