CHAPTER 3: PROGRAMMING FUNCTIONS
LW500A/LW600A PULSED Nd:YAG LASER
3-2 990-539
Light Blue Buttons
Press the light blue number fields to set numerical values.

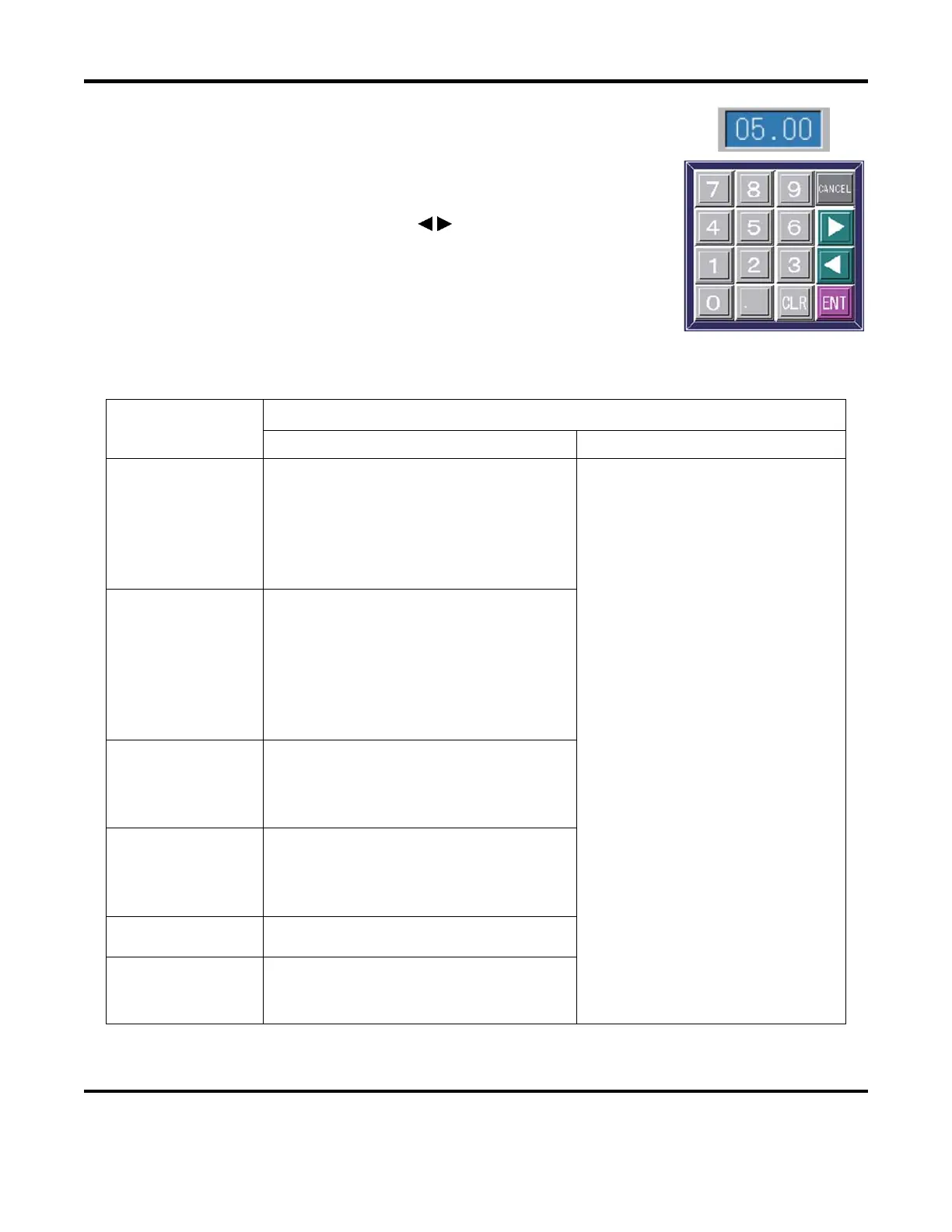

When you press a number field, a pop-up numerical keypad will appear which
will allow you to enter a numerical value.
When inputting two or more values, use the buttons to move the cursor
between each of the numbers.
Press
ENT to store (or enter) the numerical value.
Main LCD Screens
Menu Select
Button
Contents
Menu Screen Contents Common Items on Each Screen
SCHED
(SCHEDULE)
Laser output Peak Power setting (kW)
Laser output pulse time setting (ms)
Laser output Power value setting (%)
Seam Weld Mode setting (ON/OFF)
Repeat setting (pps)
Number of shots setting
Schedule:# Number
Form: (FIX or FLEX)
Beam (Branch Shutter) Control
High Voltage (ON/OFF)
Trouble Reset
Main Shutter (ON/OFF)
Position Guide Beam (ON/OFF)
Water Temperature Status
Pump Status
STATUS
Position Blink (ON/OFF)
Fiber Type (SI/GI)
Fiber core diameter (mm)
Shot Count Reset
Shot Count Preset
Good Count Reset
Good Count Preset
MON
(POWER MONITOR)
Laser output Energy monitor (J)
Laser output Average Power display (W)
Laser energy upper/lower limit setting (J)
Lamp input power display setting (%)
SEAM
(SEAM WELD)
Shot Count
Laser Output Power Setting (%)
Repeat setting (pps)
Number of shots setting
PASSWD
(PASSWORD MODE)
Password Setting
PRINT
(PRINT-OUT MODE)
Schedule Output
Power Monitor Output
Seam Weld
