Amada LW500A - Operation by External I;O Control - 2 Energy-Shared Outputs

APPENDIX C: SYSTEM TIMING
LW500A/LW600A PULSED Nd:YAG LASER
C-2 990-539
Operation by External I/O Control - 2 Energy-Shared Outputs

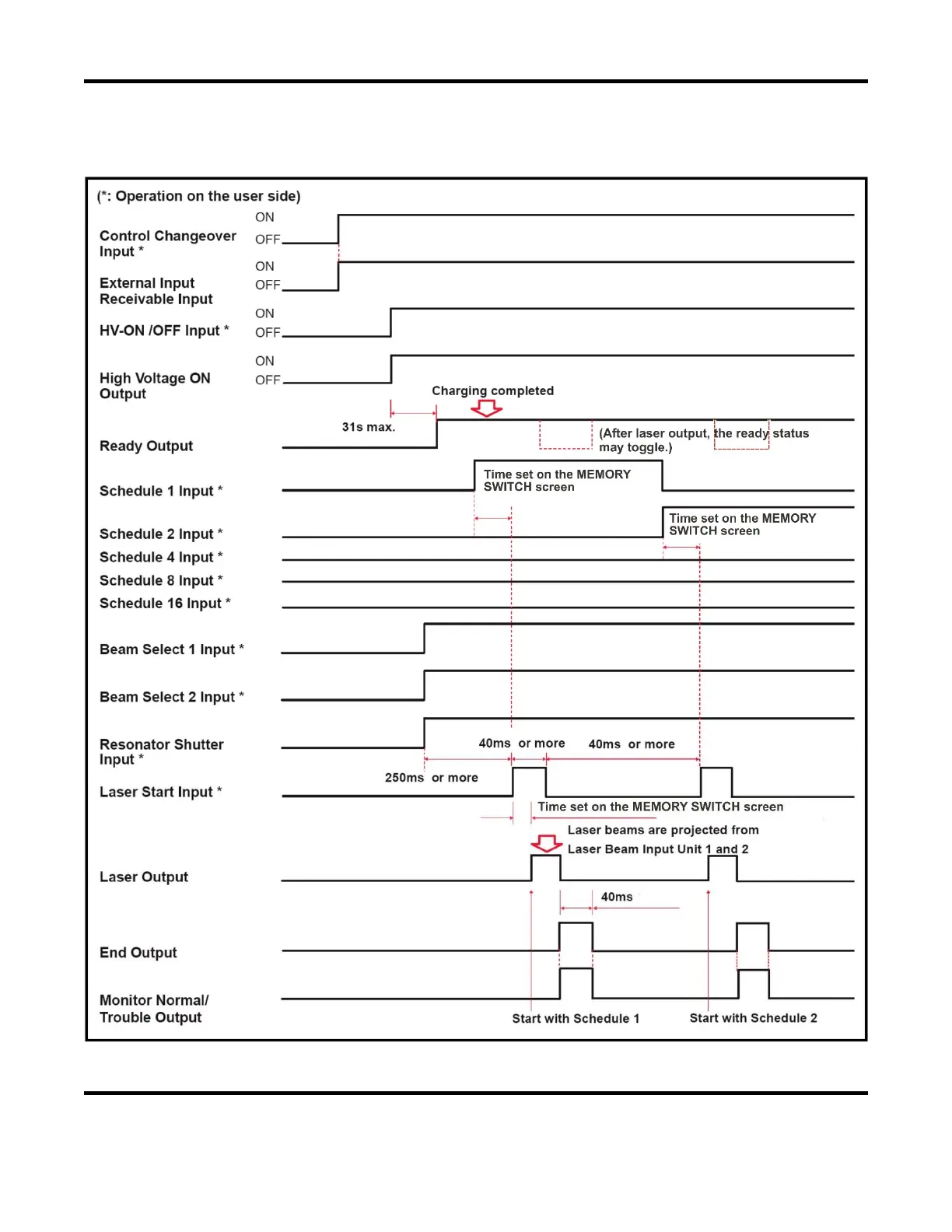

This timing diagram shows a typical laser operation with 2 Energy-Shared outputs by External I/O.
