CHAPTER 3: PROGRAMMING FUNCTIONS
LW500A/LW600A PULSED Nd:YAG LASER
990-539 3-11

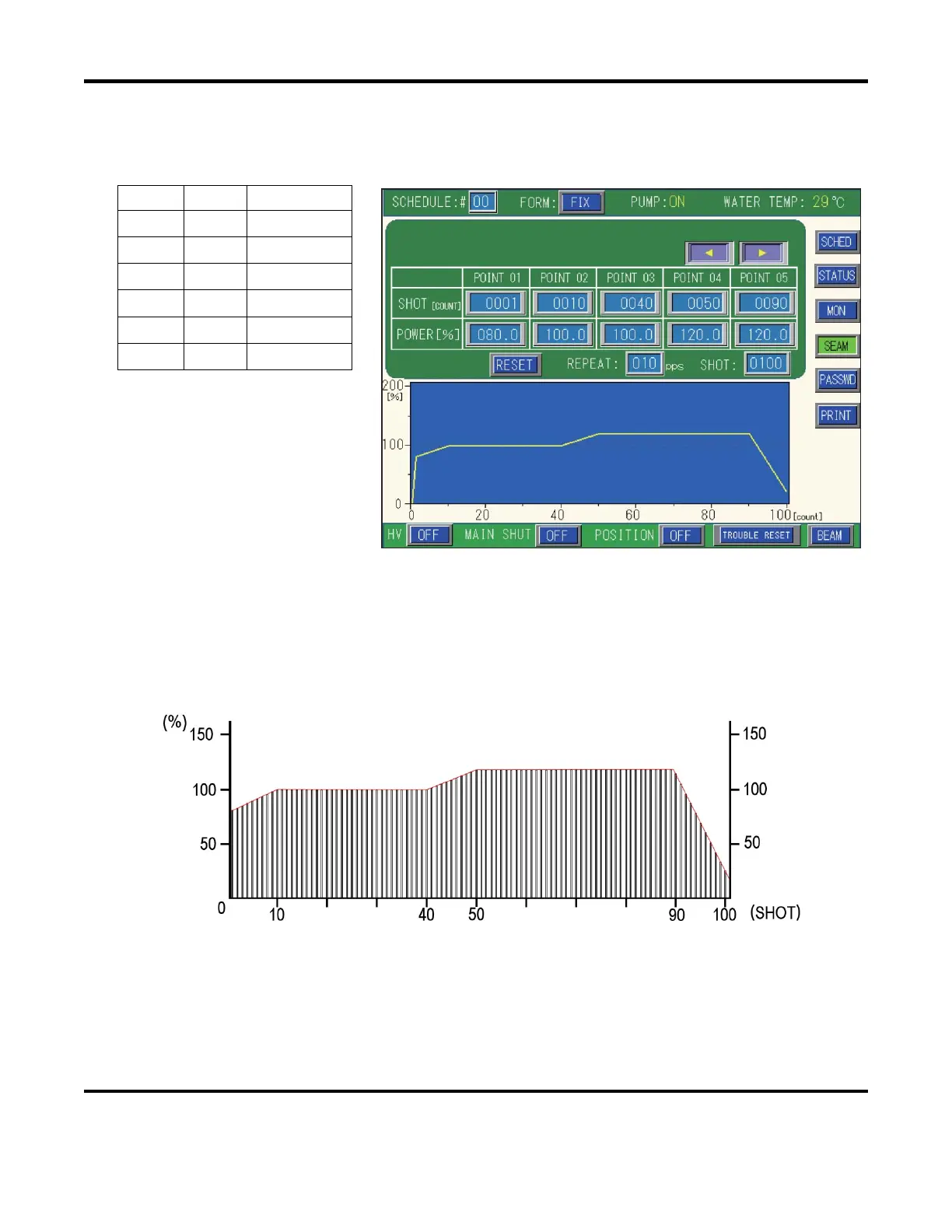

Once the output pulse is defined, the SEAM weld functions can be entered. For this example we
want the following output parameters shown in the table below. When entered into the SEAM
screen, it will appear as shown below:
POINT SHOT POWER [%]
01 1 80%
02 10 100%
03 40 100%
04 50 120%
05 90 120%
06 100 20%
NOTE: The POINT06 values (not shown in screen above) are: SHOT = 0100 and POWER [%] =
20%.
When the above parameters are entered into the Laser, the Laser Output will have the following
response (where 100% output = 1.00kW):
