Maintenance, repair and care work
Cirrus 3/4/6000 DB2034 08.04
139

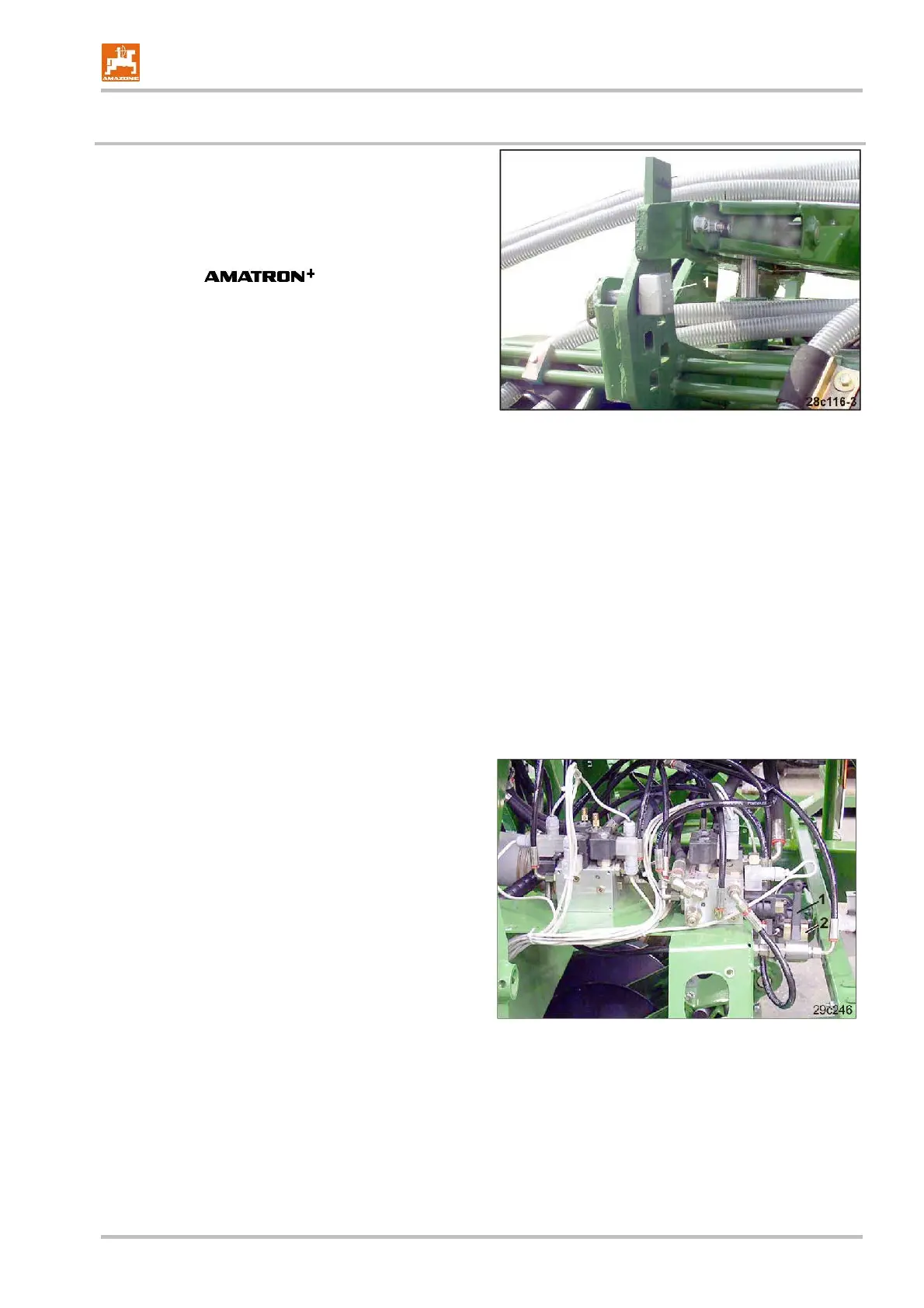

10.2.3.2 Filling and calibrating the balancing system (professional workshop job)
After any repair on the balancing system, fill the
balancing system. Proceed as follows:
- couple the cirrus on to the tractor (see chapter 7.1)
- create all hydraulic connections (see chapter
7.1.1.1)
- connect the (see chapter 7.1.1.3)
- lift the disc harrow from the operational position up
to the stop
- align the Cirrus on level ground
- fold down the Cirrus (except for Cirrus 3000) (see
chapter 7.2.1)
- retract the integrated running gear, i.e. the machine
rests on all tyres of the roller
- switch off the Low-Lift function
- ensure that the coulters do not touch the ground.
For this, proceed as described in chapter 5.6
- insert the depth setting pins (Fig. 227/1) with
the figure "1" facing upwards in all segments
into the upper most hole of the setting seg-
ments and secure.
- retract the integrated running gear, i.e. the
machine now rests on all tyres of the roller.
- in case the coulters still touch the ground, lower
the tractor low link arms accordingly.
-
Fig. 227
The balancing system is filled with the aid of the supply
hose for the harrow pressure.
The supply hose is closed with a hydraulic tap (Fig.
228/1). The hydraulic tap is secured by a twisting
safety device (Fig. 228/2).
Figure (Fig. 228) shows the closed hydraulic tap
secured against twisting.
Fig. 228
