Description of produce
Cirrus 3/4/6000 DB2034 08.04
27
3. Description of product
This chapter shows the design of the Cirrus and should be read directly at the
machine in order to get acquainted with it.
Cirrus consists of the following components
• Transport frame with draw bar (cat. III)
• Track markers
• Seed box with metering and seed delivery unit
• Twin row disc cultivator
• Wedge ring roller with integrated transport wheels
• Packer coulters
• Extra coverage following harrow

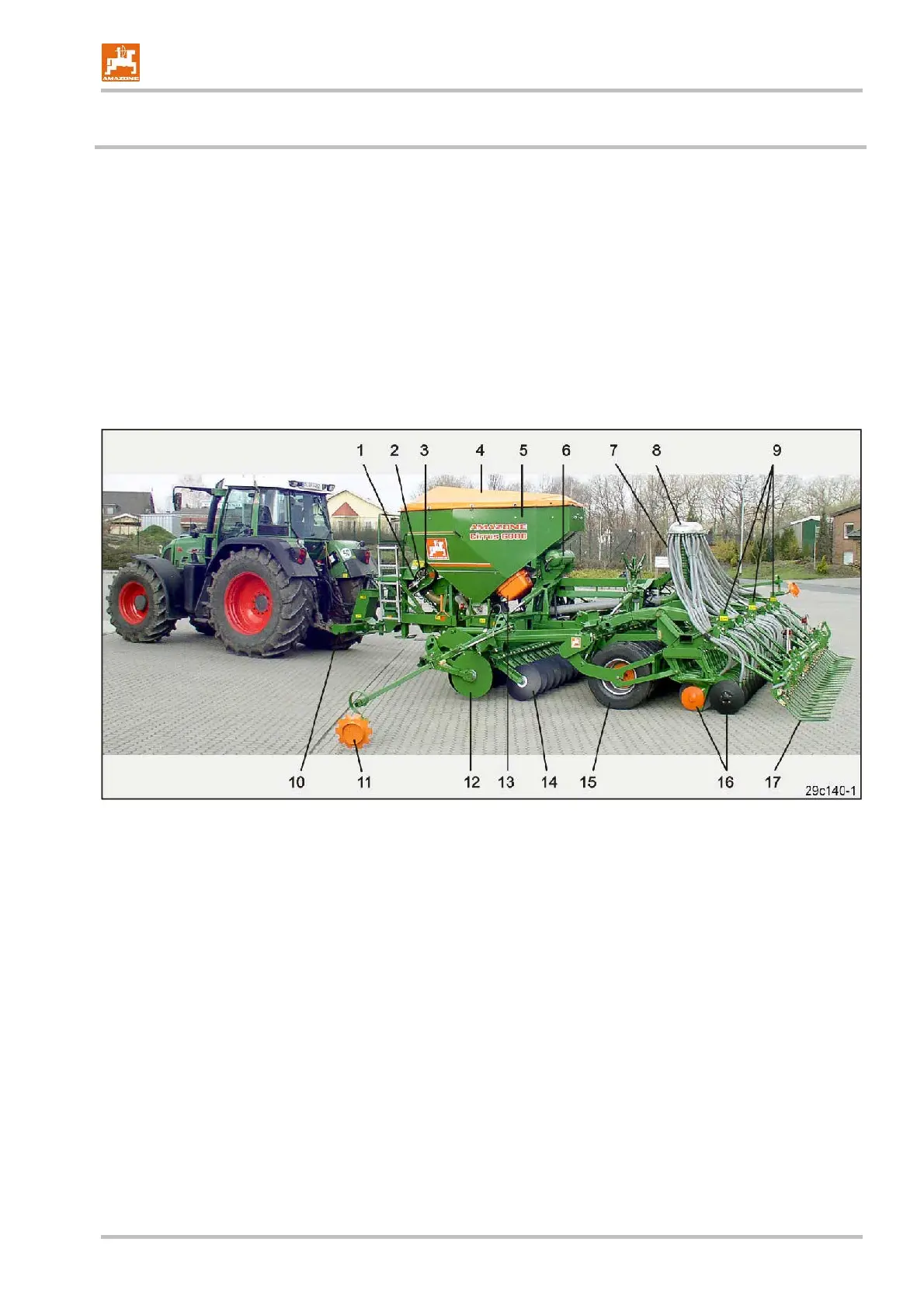

3.1 Overview - Components
Fig. 19
1 Pressure relief valve for fan drive 10 Transport frame with draw bar (cat. III)
2 Hydraulic motor for fan drive 11 Track markers
3 Fan 12 Side discs
4 Hopper cover, swivelable 13 Seed collecting container in transport retainer
5 Seed hopper 14 Two row disc harrow
6 Air pressure reservoir of air brake 15 Wedge ring roller with integrated transport wheels
7 Seed tubes 16 Packer coulters
8 Distributor head 17 Extra coverage following harrow
9
Seed placement depth adjustment of packer
coulters
