Assembly and function
48
Cirrus 3/4/6000 DB2034 08.04
4.11 Packer coulter

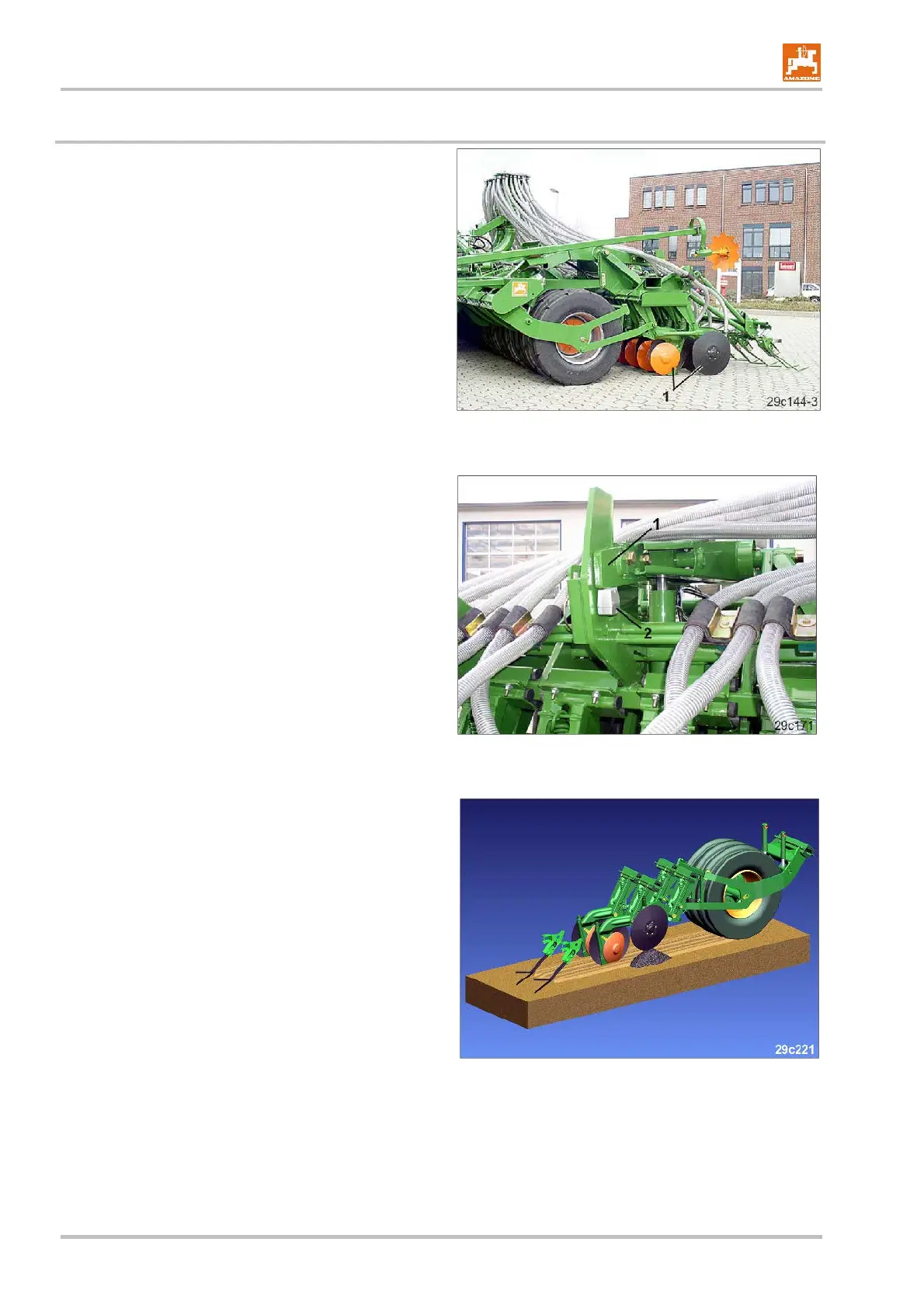

Each packer coulter (Fig. 64/1)
• cuts a groove for the seed into the pre-
consolidated strips of the wedge ring tyre roller
• places the seed into the seed furrow.
Fig. 64
The desired seed placement depth of the packer
coulters is adjusted on each machine segment by re-
inserting depth setting pins (Fig. 65/2). The different
settings have an effect on the carrying arm (Fig. 65/1)
that achieves the seed placement depth.
Fig. 65
The maintenance-free packer coulter stone safety
device protects the individual packer coulters from
damage when hitting firm obstacles.
Fig. 66
