Putting to operation
98
Cirrus 3/4/6000 DB2034 08.04
7.1.1.4 Connection of the brake system
Connection of the brake system:
- The air pressure hoses for the brake system are
identified as illustrated in figure (Fig. 147) and
should be connected with the tractor as described
in table (Fig. 148).

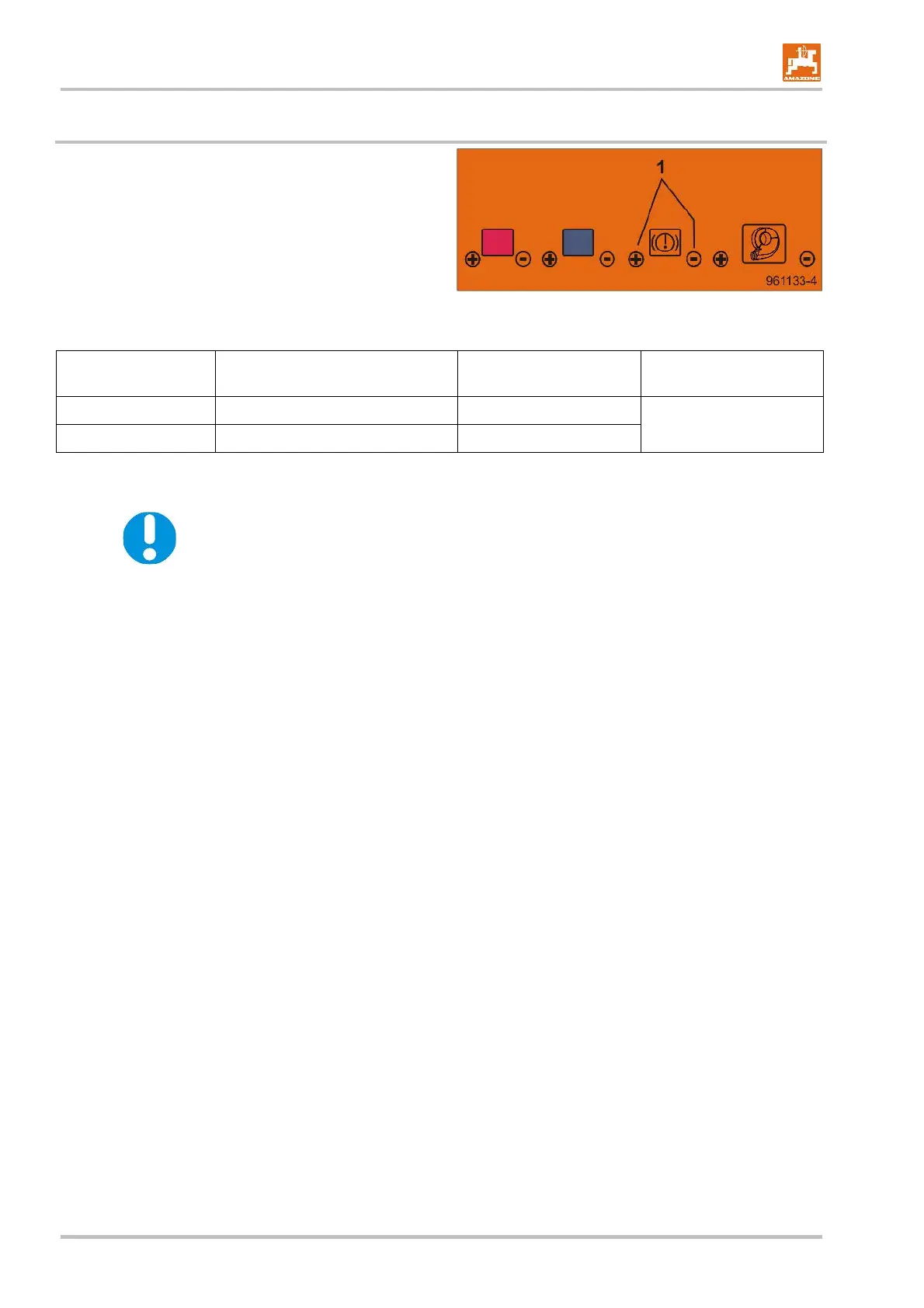

Fig. 147
Air pressure hose
(Fig. 147/...)
Tractor connection
Colour of
coupling heads
Connection
1 (+) Brake line yellow
1 (-) Supply line red
air brake system
Fig. 148
Important!
First couple the yellow coupling head (brake) and then the red coupling head
(supply line) on to the tractor. Ensure proper catching.
When the air pressure reservoir is filled, the brake is applied. The brake releases
immediately from its braking position when the red coupling had has been
coupled.
Before coupling the brake or the supply line ensure that the
• coupling heads are clean
• seal rings and coupling heads are in perfect condition
• seals are clean and not damaged.
