Putting to operation
Cirrus 3/4/6000 DB2034 08.04
97

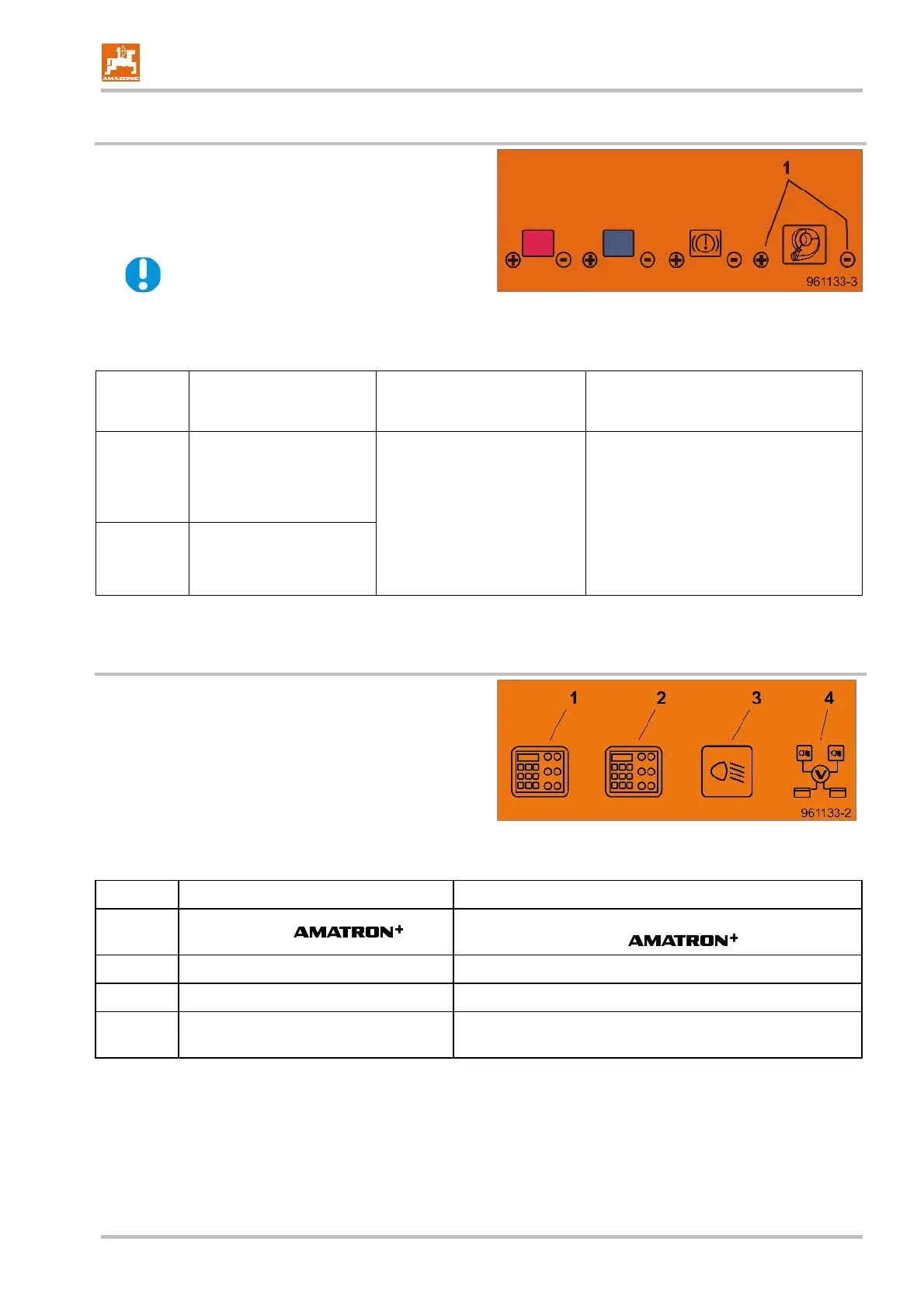

7.1.1.2 Connection of the hydraulic blower fan drive
Connection of the hydraulic blower fan drive:
- The machine's hydraulic hoses for the hydraulic
blower fan drive are identified as shown in figure
(Fig. 143) and should be connected to the tractor
as described in (Fig. 144) .
Important!
Observe the fitting instructions for
the connection of the hydraulic
blower fan drive in chapter 6.2!
Fig. 143
Hydraulic
hose
(Fig. 143)
Connection on the
tractor control unit
Execution of the
tractor control spool valve
Hydraulic
functions on the machine
1(+)
Control unit 3
Pressure hose
with priority
for the flow
1(-)
Control unit 3
hose w.o. pressure
for the return flow
single acting
or
double acting
control spool valve
hydraulic blower fan connection
Fig. 144
7.1.1.3 Creating electric supply connections
Creating electric supply connections:
- As illustrated in figure (Fig. 145) the plugs of the
machine's electric cables are identified and should
be connected with the tractor as described in table
(Fig. 146).
Fig. 145
Fig. 145/... Connection / Function Hint for mounting
1 Machine plug of
Connect the plug on the terminal as described in the
operator's manual for the .
2 -
3 -
4
plug (9 channel)
for road traffic light kit
Fig. 146
