Assembly and function
46
Cirrus 3/4/6000 DB2034 08.04
4.9 Twin row disc cultivator
The discs (Fig. 60/1) arranged in an diagonal angle
towards the driving direction prepare the seed bed..
Adjustments can be carried out as follows
• the working intensity of the discs across the
working depth of the disc cultivator
• the length of the two outer discs allowing the
adaptation to varying soil conditions
• the two side discs (Fig. 60/2) in longitudinal and
transverse direction.
Correctly set outer discs and side discs prevent
soil flow beyond the working width of the machine.

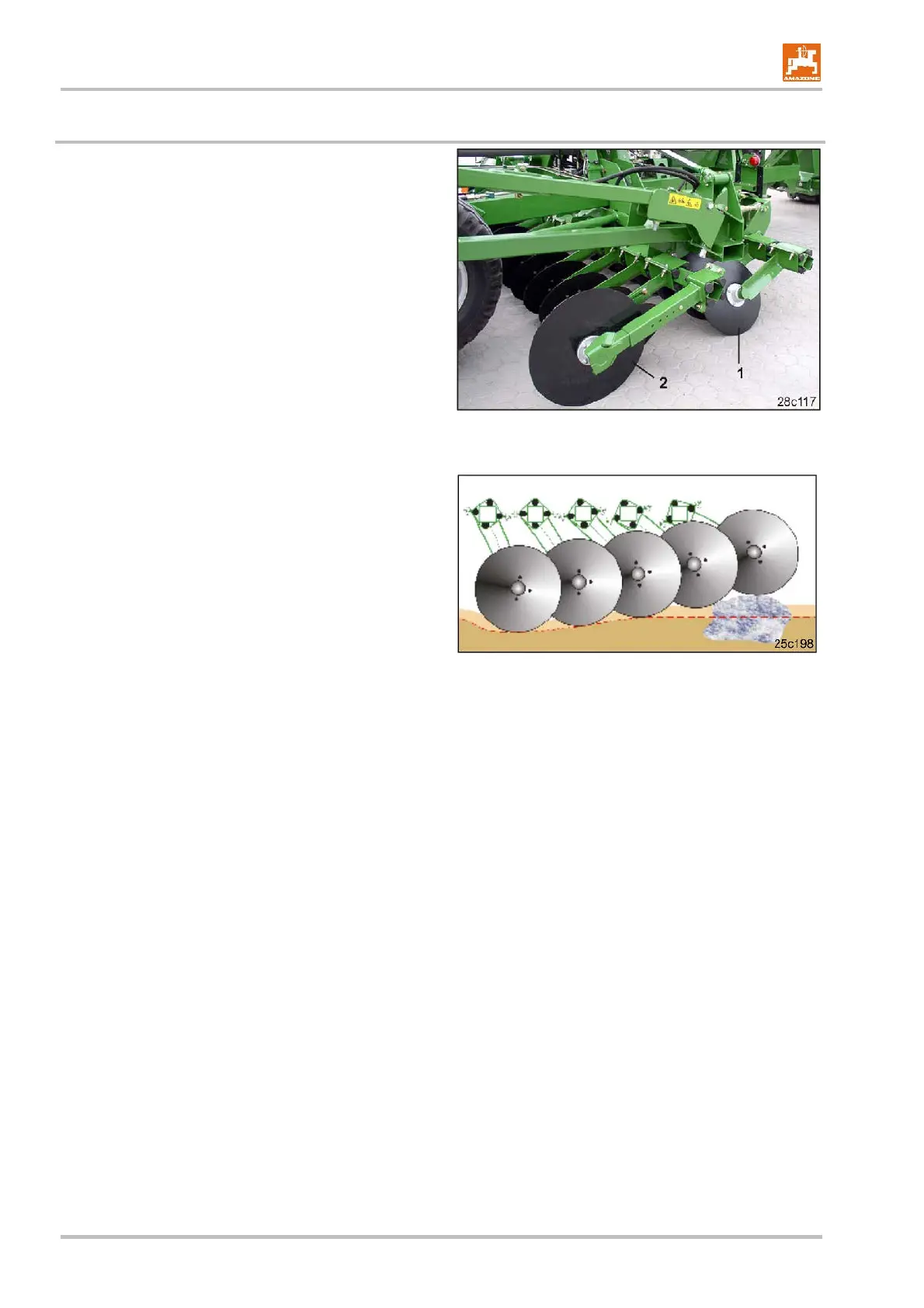

Fig. 60
The sprung rubber mounting of the individual discs
allows
• the adaptation to the field contours
• the discs giving way when hitting firm obstacles,
e.g. stones. In this way the individual discs are
protected from damage.
