Assembly and function
Cirrus 3/4/6000 DB2034 08.04
51
4.14 Operator terminal
consists of the terminal (Fig. 72), the
basic tractor equipment (fixed in the cab) and the job
computer on the machine.
The terminal is designed for
• input of machine specific data
• input of job related data
• access of the machine to change the seed rate
during the sowing operation
• release of the hydraulic functions before the
hydraulic functions can be carried out via the
relevant control valve.
• monitoring the seed drill during sowing operation.

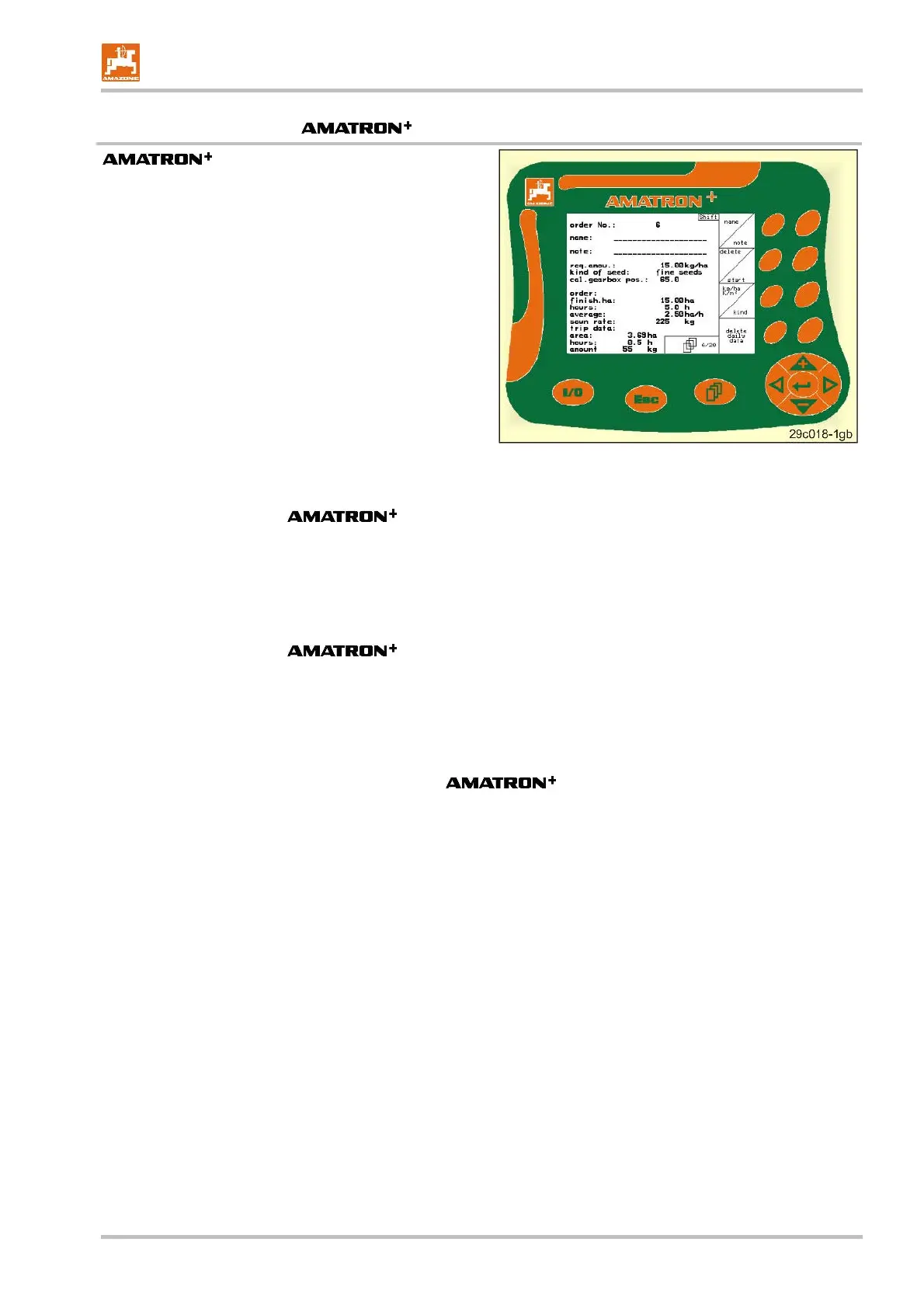

Fig. 72
determines
• the actual forward speed [km/h]
• the actual seed rate [kg/ha]
• the estimated distance [m], to travel until the seed box is empty
• the actual seed box contents [kg].
stores for the started job
• the quantity of seed sown, daily and in total [kg]
• completed area, daily and in total [ha]
• completed working hours, daily and in total [h]
• average work rate [ha/h].
For the communication consists of the main menu and the 4 sub
menus job, machine data, setup and operation.
Job menu
• In the job menu jobs are created and the determined data of up to 20 jobs are
stored.
Menu machine data
• In the menu machine data the machine specific settings are entered, selected of
determined with the aid of a calibration procedure.
Applications in the Setup menu
• Input and output of diagnosis data, selecting and entering machine basic data.
These settings may only be carried out by the service staff.
Menu operation
• The menu operation shows all necessary data during the sowing operation. From
the menu operation the seed drill is controlled during operation.
