Description of produce

Cirrus 3/4/6000 DB2034 08.04

3.3 Positioning of safety symbols and other identifications

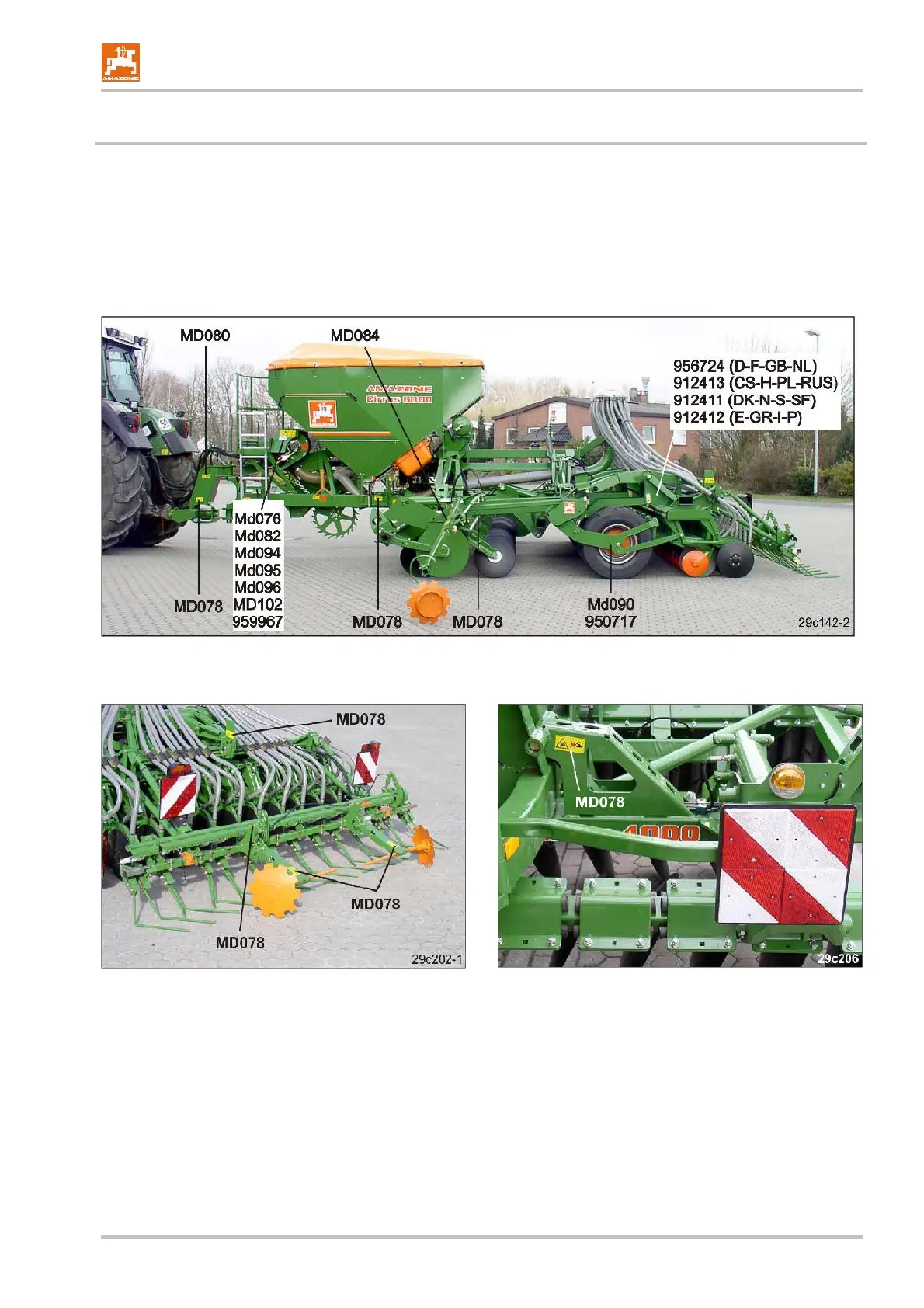

The following illustrations show the arrangement of the safety symbols on the

machine.

The safety symbols are explained in chapter 2.16 .

Always keep all safety symbols on the machine clean and in well readable condition.

Replace damaged or missing warning symbols and hint signs (Picture No. =

Order No.).

Fig. 33

Fig. 34

Fig. 35
