Maintenance, repair and care work
Cirrus 3/4/6000 DB2034 08.04
141
- When all hydraulic taps (Fig. 222/1) have been
extended completely, close the hydraulic tap as
shown in figure (Fig. 232/1).
- Secure the hydraulic tap (Fig. 232/1), as shown in
figure (Fig. 225) with a twisting safety device (Fig.
232/2).
- Get the control unit 1 into the floating position.
- Stop tractor engine, apply parking brake and
remove ignition key.

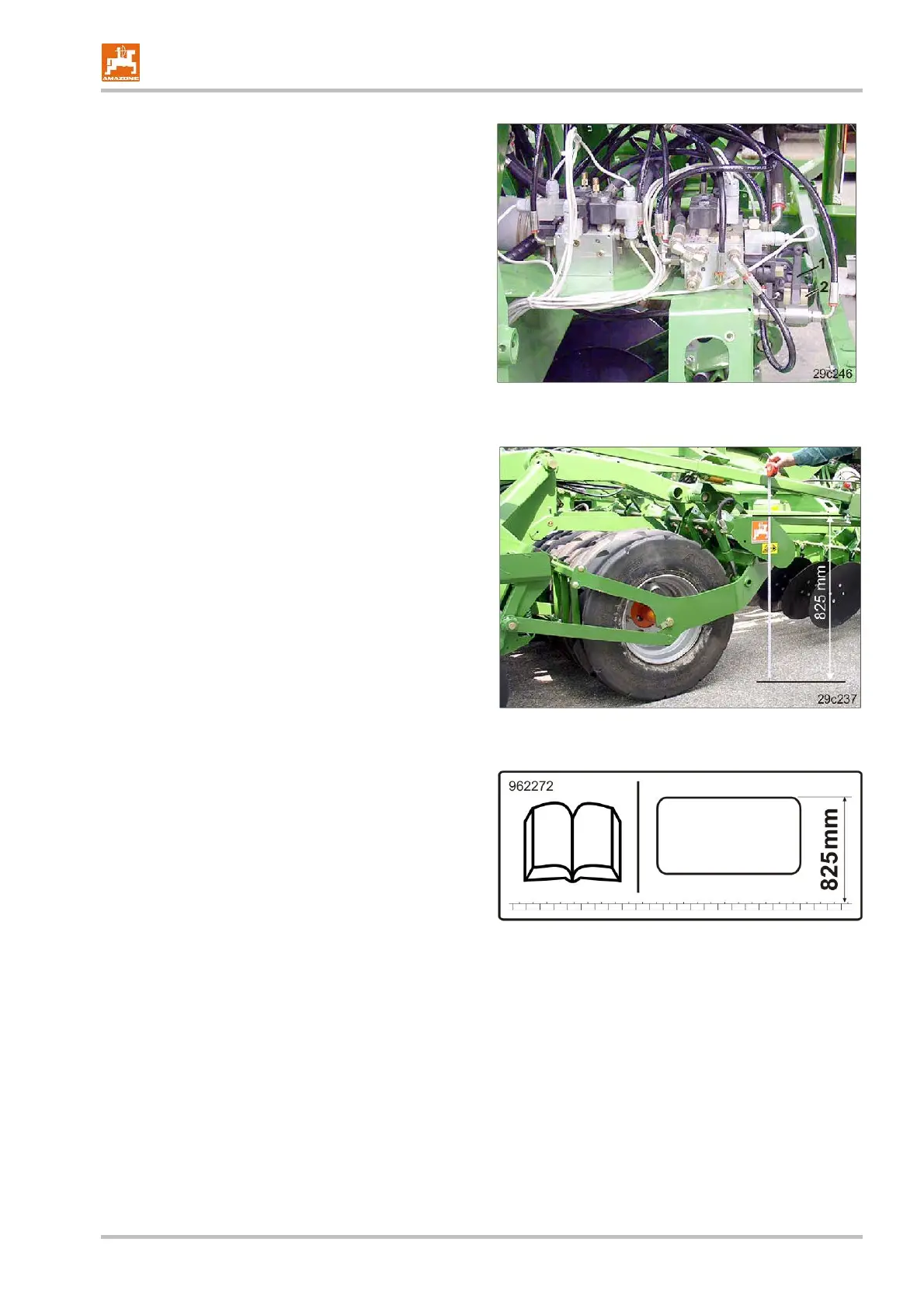

Fig. 232
Calibration of the balancing system
- Park the machine having been folded down on level
ground.
- Take a measuring type and measure the frame
height (see Fig. 233) from the wheel contact point
- The machine is properly calibrated when both frame
halves are set to a height of 825 mm.
Fig. 233
The measuring edges of the machine are identified by
stickers (Fig. 234).
Fig. 234
