Technical data User manual

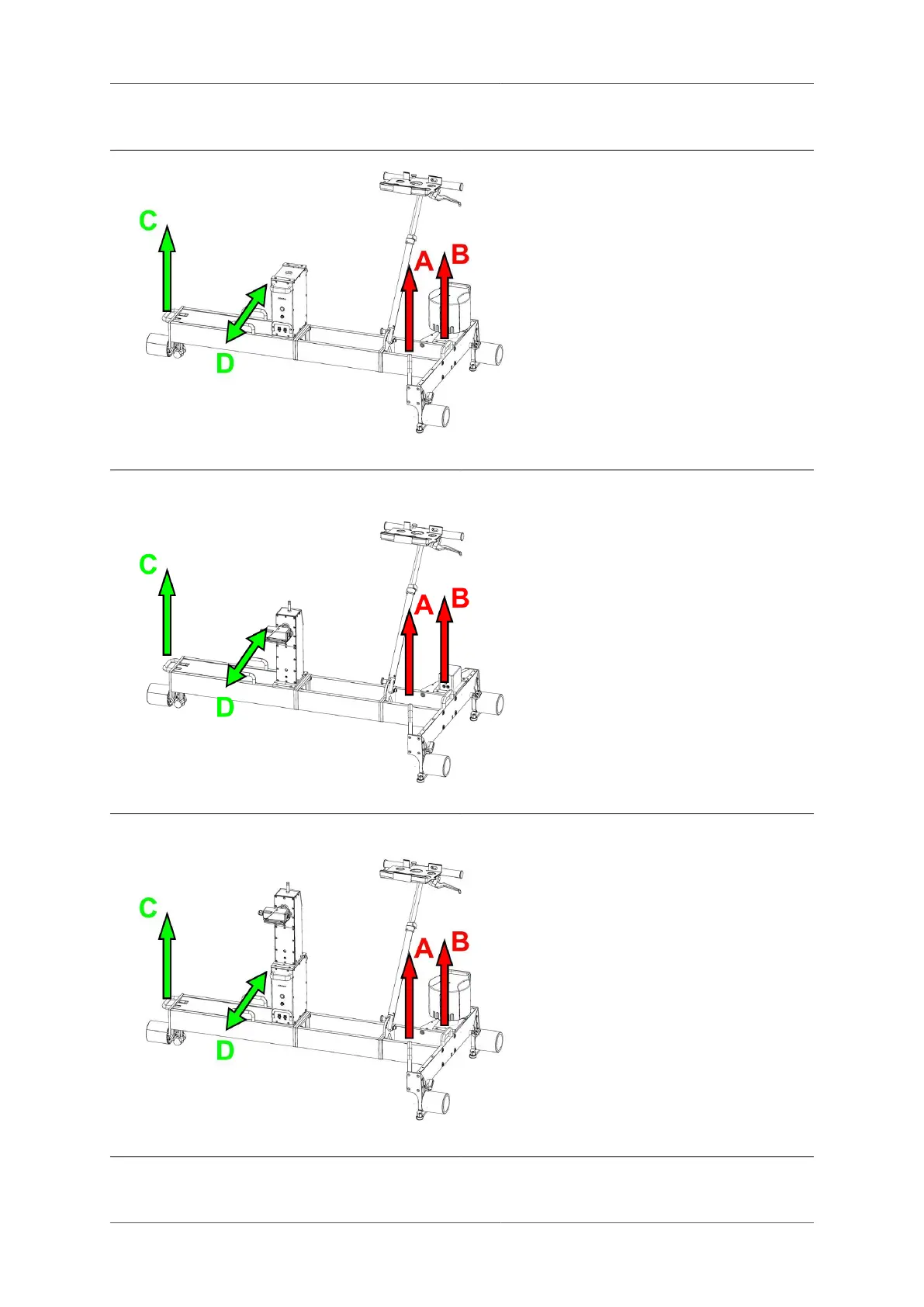

System configuration Lifting instructions
B 14.3 kg / 31.5 lb
C 18.5 kg / 40.8 lb
D Just for stabilisation
IMS 3000 / AMU 2010 lifted by two persons A 7.7 kg / 17.0 lb
B 9.2 kg / 20.3 lb
C 13.1 kg / 28.9 lb
D Just for stabilisation
IMS 3000 / AMU 2030 lifted by two persons According to EN 13977, the combined lifting
force required at handles A and B is too high.
A 10.2 kg / 22.5 lb
B 13.7 kg / 30.2 lb
C 17.0 kg / 37.5 lb
D Just for stabilisation
IMS 5000 / AMU 2030 lifted by two persons According to EN 13977, the required lifting
force per person is too high.
Page 104 of 114 © Amberg Technologies AG, 2023
