User manual Technical data
System configuration Lifting instructions
A 15.0 kg / 33.1 lb
B 17.0 kg / 37.5 lb
C 24.5 kg / 54.0 lb
D Just for stabilisation

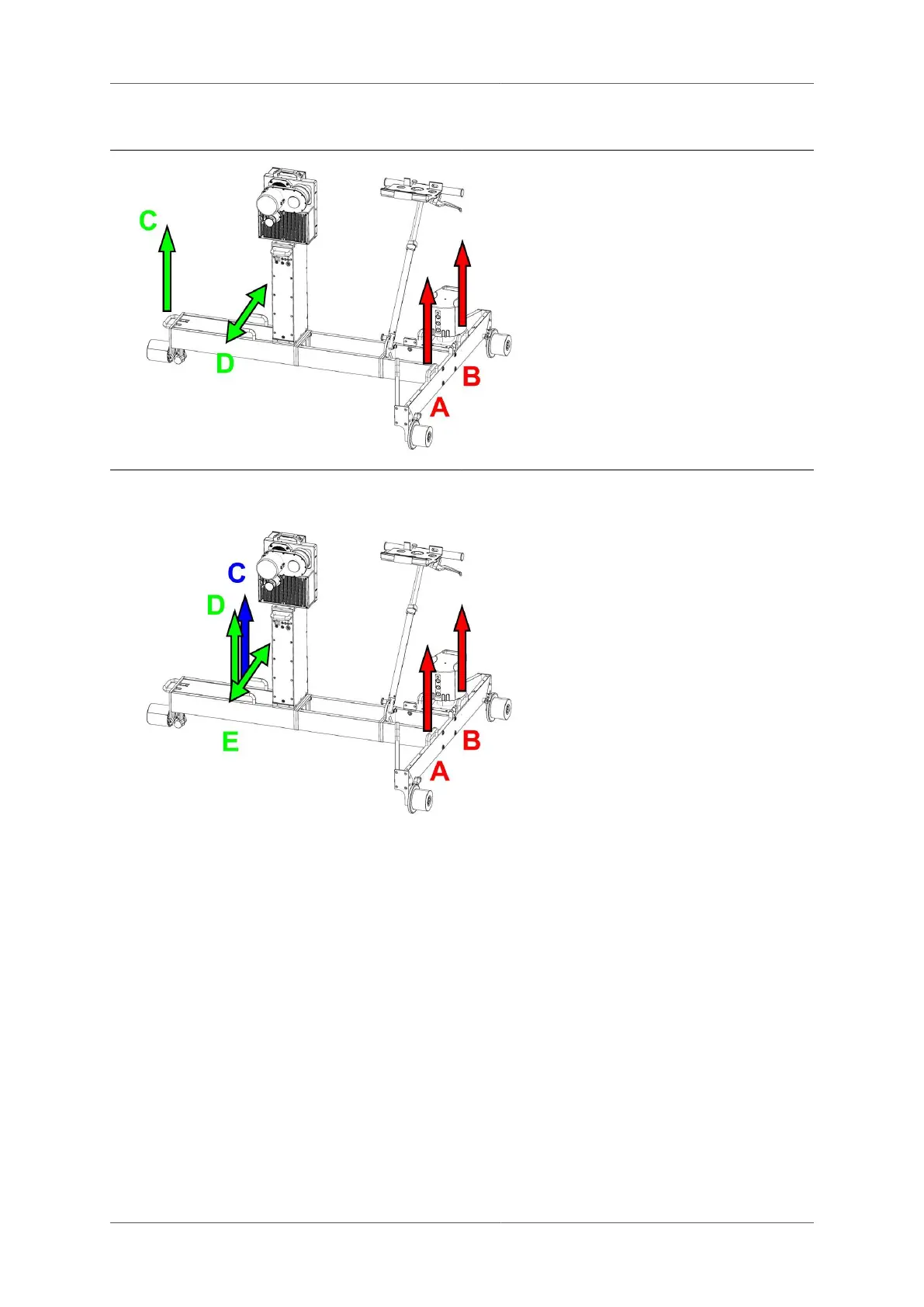

IMS 5000 / AMU 2030 lifted by three
persons
According to EN 13977, the combined lifting
force required at handles A and B is too high.
A 15.0 kg / 31.1 lb
B 17.0 kg / 37.5 lb
C 12.25 kg / 27.0 lb
D 12.25 kg / 27.0 lb
E Just for stabilisation
11.12 Construction gauge according UIC 505-1
In the following sketch the GRP 1000 / 3000 / 5000 is shown in relation to the UIC construction
gauges.
